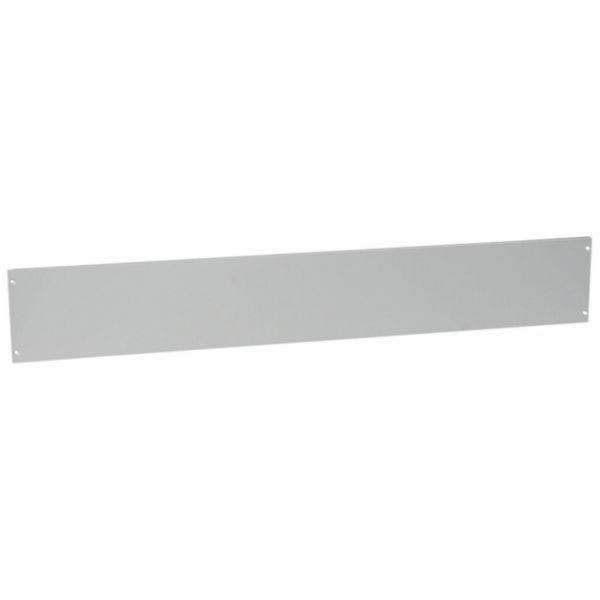

Metal Solid Faceplate for XL³ 6300 Enclosure | Steel Construction | IP30 & IK07 Rated | Grey RAL 7035 | @Each of 1 | by Legrand
The Metal Solid Faceplate for XL³ 6300 Enclosure is crafted from durable steel with a powder coating finish, ensuring corrosion resistance and longevity. Designed for industrial and commercial applications, it features an IP30 rating and IK07 impact resistance, making it ideal for electrical distribution switchboards and power cabinets. Its halogen-free material enhances safety, while the standard grey RAL 7035 color provides a professional appearance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metal Solid Faceplate for XL³ 6300 Enclosure | Steel Construction | IP30 & IK07 Rated | Grey RAL 7035 | @Each of 1 | by Legrand
Brand: Legrand
SKU: 021144
Alternatively Known As: XL3 6300 Enclosure Faceplate, Metal Enclosure Cover Panel, Switchboard Faceplate Panel
Technical Specifications
- Material: Steel
- Surface Finish: Powder coating
- Width: 1300 mm
- Height: 200 mm
- Suitable for enclosure building width: 1438 mm
- Suitable for enclosure building height: 2231 mm
- Impact Strength: IK07
- Ingress Protection: IP30
- Operating Temperature: -5 to 40 °C
- Storage Temperature: -5 to 40 °C
- Colour: Grey (RAL 7035)
- Halogen Free: Yes
- Dimensions (H x L x W): 200mm x 10mm x 1300mm
- Weight: 5 kg
Key Features
- Metal solid faceplate designed specifically for XL³ 6300 enclosures
- Dimensions: Height 200 mm, Width 1300 mm
- Constructed from durable steel with powder coating for corrosion resistance
- IP30 rated and IK07 impact resistance for protection
- Halogen free material for enhanced safety
- RAL 7035 grey color for standard industrial appearance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical enclosure assembly to ensure proper fit and compliance with safety standards.
Applications
- Used as a protective and aesthetic faceplate for XL³ 6300 electrical distribution enclosures
- Suitable for industrial and commercial switchboard and power cabinet installations
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Halogen free materials reduce harmful emissions in case of fire
- Powder coating finish reduces the need for frequent repainting and maintenance
Warranty Information
Standard manufacturer warranty applies; typically 2 years against manufacturing defects.
Available Now
The Legrand Metal Solid Faceplate for XL³ 6300 Enclosure is available for immediate purchase, ideal for use in electrical distribution switchboards and power cabinets.
