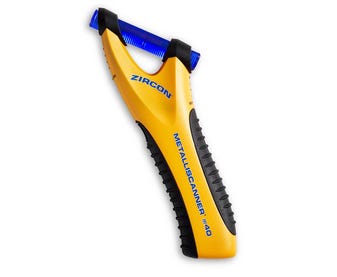

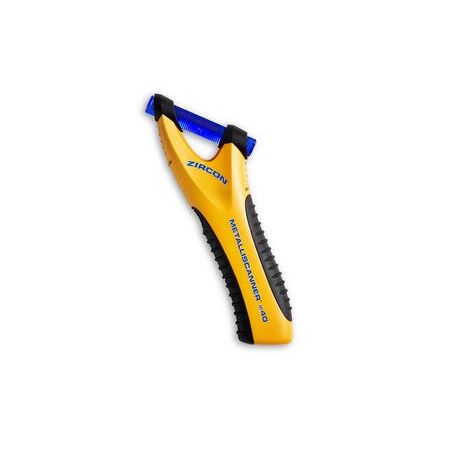

MetalliScanner Metal Detector 102mm Depth Zircon

BRAND: CABAC
SKU: M40
$158.70 List price: $211.60
+ −
30 Days Return Electricians Unlock Trade Access
Zircon MetalliScanner detects ferrous metal to 102mm and non-ferrous to 51mm deep, with pinpoint and wide scan modes. Ideal for pre-drill checks in walls.

Alternatively Known As: Zircon m40 Electronic Metal Detector, MetalliScanner Metal Locator, Wall Metal Detector

Technical Specifications
  • Detection Depth: Ferrous metal up to 102 mm; non-ferrous metal up to 51 mm
  • Scanning Modes: Wide Scan and Pinpoint Scan
  • Target Indication: Progressive LED signal-strength display, illuminated blue sensor and audio tone
  • Battery Type: 9 V alkaline battery, not included
  • Suitable Materials: Wood, drywall, paneling, tile, plaster, concrete and other non-metallic surfaces
  • Water Resistance: Splash and water resistant; not waterproof
  • Operating Temperature: -7°C to 41°C
  • Storage Temperature: -29°C to 66°C
  • Humidity: 5–90% RH, non-condensing
  • Dimensions (H x L x W): 25mm x 194mm x 120mm
  • Weight: 0.111 kg
Key Features
  • Detects ferrous and non-ferrous metals behind walls and in other non-metallic surfaces
  • Locates rebar, plumbing, ductwork, nails, screws and metal framing
  • Pinpoint Scan helps locate small metal objects such as screws and nails
  • Wide Scan is suited to scanning walls, floors, ceilings and concrete
  • Progressive LED arrays indicate signal strength as the tool approaches a target
  • Useful for pre-drill checks and scanning reclaimed timber before cutting
  • Compact handheld design for portable use
Applications
  • Pre-drill checks in walls, floors and ceilings
  • Locating pipes, ductwork, rebar and metal framing
  • Finding nails and screws in lath-and-plaster walls
  • Checking concrete and other non-metallic building materials
  • Scanning reclaimed or recycled timber for concealed metal
  • HVAC, electrical, plumbing, construction and maintenance work
Environmental Benefits
  • Helps prevent unnecessary drilling, cutting and material damage, reducing rework and construction waste
  • Battery-powered operation avoids the need for mains power during routine inspections
  • Supports reuse of reclaimed timber by identifying concealed metal before sawing or planing
Warranty Information

Limited one-year warranty in Australia from the date of purchase against defects in materials and workmanship. The warranty covers the electronic circuitry and original case and excludes batteries, misuse, accidents, neglect, modification and unreasonable use.

Available Now

Available through authorised ZIRCON distributors in Australia.
