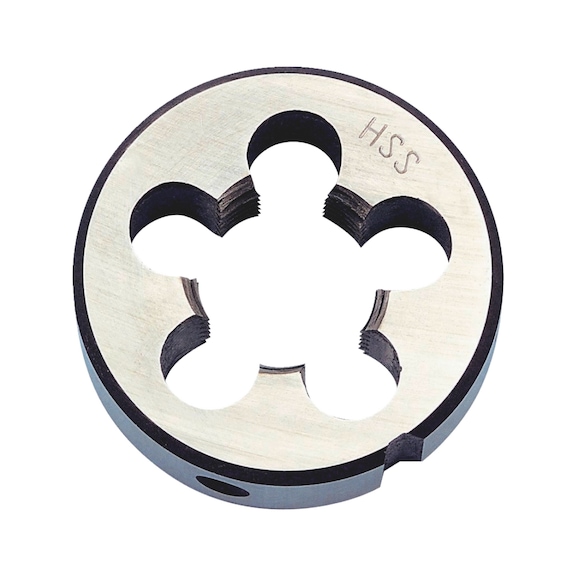

Metric Fine Thread Die MF14 | HSS Material | Two-Sided Cut | by Wurth

BRAND: Wurth
SKU: 65214125
$129.60 List price: $162.90
+ −
30 Days Return Delivery Options
The Metric Fine Thread Die MF14 is designed for cutting ISO fine threads in steel and cast iron, featuring durable HSS material and a two-sided cut for efficient threading. Ideal for trained machinists and professionals, this die ensures excellent chip removal and high edge retention, making it perfect for industrial applications and thread production.

Product Name/Title: Metric Fine Thread Die MF14 | HSS Material | Two-Sided Cut | by Wurth

Brand: Wurth

SKU: 65214125

Alternatively Known As: Metric Fine Thread Die, MF14 Thread Cutter, ISO Fine Thread Die

Technical Specifications
  • Type description: For metric ISO fine thread DIN 13
  • Cutting material: HSS
  • Surface: Plain
  • Thread type: Metric fine thread
  • Form: B (closed, pre-slotted design)
  • Tolerance class: 6g
  • Thread type x nominal diameter: MF14
  • Pitch: 1.25 mm
  • Outer diameter: 38 mm
  • Height: 10 mm
  • Material to be processed: Steel up to 850 N/mm² strength, Cast iron
  • Dimensions (H x L x W): 10mm x 38mm x 38mm
  • Weight: 0.2 kg
Key Features
  • Two-sided cut allows use on both sides
  • Threads can be cut in one process
  • Easy cutting with excellent chip removal in cutting direction
  • High edge retention for durability
Professional Installation Requirements
  • Use by trained machinists or professionals experienced in thread cutting is recommended for optimal results and safety.
Applications
  • Machining: Cutting metric ISO fine threads in steel and cast iron
  • Industrial: Thread production for mechanical and engineering applications
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable HSS cutting material reduces frequency of replacement
  • Efficient cutting reduces waste material
Warranty Information

Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.

Available Now

Wurth Round Die for Metric ISO Fine Threads MF14 is available for immediate purchase, ideal for machining and industrial thread cutting applications.
