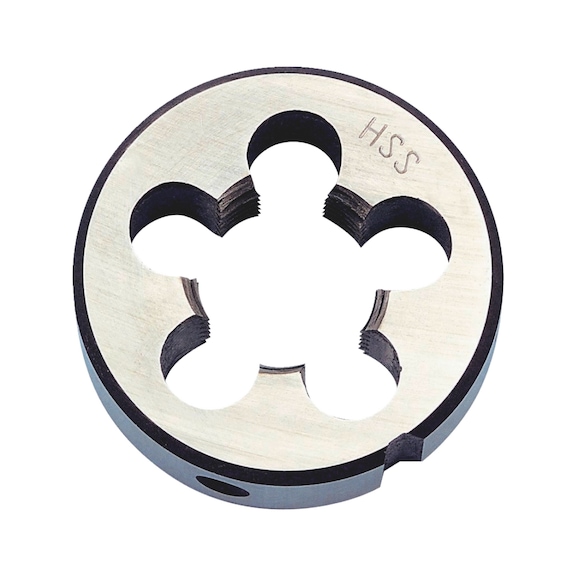

Metric Fine Thread Die MF14 | HSS Material | Two-Sided Cut | by Wurth
The Metric Fine Thread Die MF14 is designed for precision threading in steel and cast iron, featuring high-speed steel (HSS) construction for durability. With a two-sided cut for efficient threading and excellent chip removal, it's perfect for trained machinists and industrial applications. Ideal for producing metric ISO fine threads, this die ensures high edge retention and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metric Fine Thread Die MF14 | HSS Material | Two-Sided Cut | by Wurth
Brand: Wurth
SKU: 6521415
Alternatively Known As: Metric Fine Thread Die, MF14 Thread Cutter, HSS Threading Die
Technical Specifications
- Type description: For metric ISO fine thread DIN 13
- Cutting material: HSS
- Surface: Plain
- Thread type: Metric fine thread
- Form: B (closed, pre-slotted design)
- Tolerance class: 6g
- Thread type x nominal diameter: MF14
- Pitch: 1.5 mm
- Outer diameter: 38 mm
- Height: 10 mm
- Material to be processed: Steel, Cast iron (up to 850 N/mm² strength)
- Dimensions (H x L x W): 10mm x 38mm x 38mm
- Weight: 0.1 kg
Key Features
- Two-sided cut allows use on both sides
- Threads can be cut in one process
- Easy cutting with excellent chip removal in cutting direction
- High edge retention for durability
Professional Installation Requirements
- Use by trained machinists or professionals with appropriate threading equipment is recommended.
Applications
- Machining: Cutting metric ISO fine threads in steel and cast iron
- Industrial: Thread production for mechanical and engineering applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable HSS material reduces frequency of replacement and waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Round Die MF14 is available now for immediate purchase. Ideal for precision threading in machining and industrial applications.
