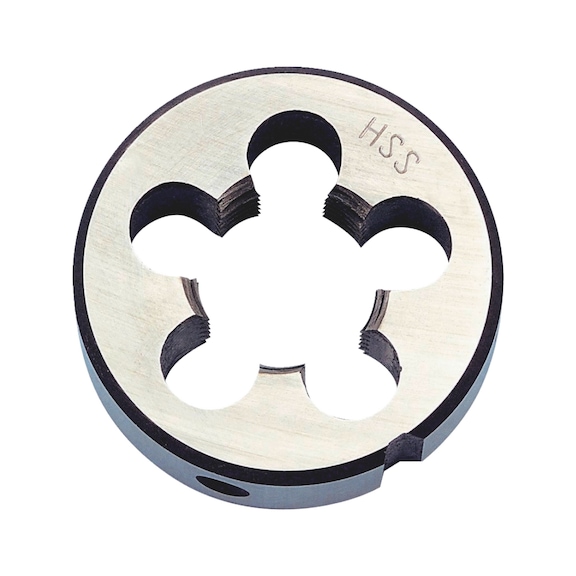

Metric Fine Thread Die MF4 | HSS Round Cutter | Two-Sided Cut | by Wurth
The Metric Fine Thread Die MF4 is designed for precision machining, featuring a high-speed steel (HSS) construction that ensures durability and excellent chip removal. Ideal for cutting metric ISO fine threads in steel and cast iron, this die allows for threading in one process, making it perfect for industrial and workshop applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metric Fine Thread Die MF4 | HSS Round Cutter | Two-Sided Cut | by Wurth
Brand: Wurth
SKU: 6520405
Alternatively Known As: Metric Fine Thread Die, MF4 Thread Cutter, HSS Round Die, Threading Die for Steel
Technical Specifications
- Type description: For metric ISO fine thread DIN 13
- Cutting material: HSS
- Surface: Plain
- Thread type: Metric fine thread
- Form: B
- Tolerance class: 6g
- Thread type x nominal diameter: MF4
- Pitch: 0.5 mm
- Outer diameter: 20 mm
- Height: 5 mm
- Material to be processed: Steel, Cast iron
- Dimensions (H x L x W): 5mm x 20mm x 20mm
- Weight: 0.1 kg
Key Features
- Two-sided cut allows use on both sides
- Threads can be cut in one process
- Easy cutting and excellent chip removal in cutting direction
- High edge retention for durability
Professional Installation Requirements
- Professional use recommended; ensure proper handling and safety measures during machining operations.
Applications
- Machining: Cutting metric ISO fine threads in steel and cast iron
- Industrial: Thread production for mechanical and automotive parts
- Workshop: Precision threading tasks requiring high edge retention
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable HSS material reduces need for frequent replacements
- Efficient cutting reduces waste material
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Round Die for Metric ISO Fine Threads MF4 is available for immediate purchase, ideal for precision machining and threading applications.
