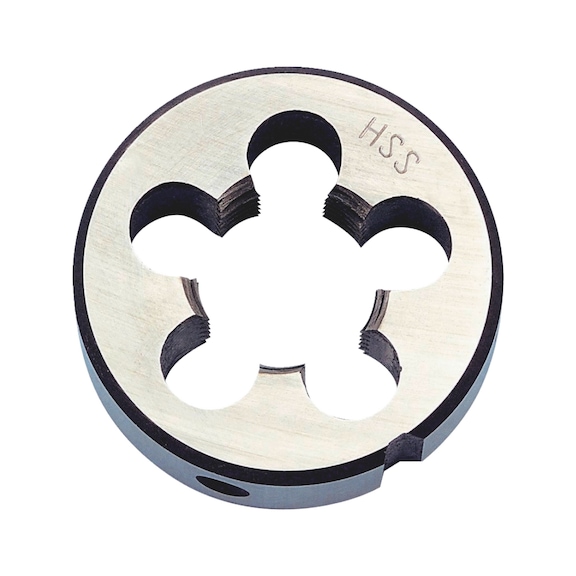

Metric Fine Thread Die MF5 | HSS Material | Two-Sided Cut | by Wurth
The Metric Fine Thread Die MF5 is designed for precision threading in steel and cast iron, featuring durable HSS material and a two-sided cut for efficient operation. Ideal for trained machinists, this die ensures excellent chip removal and high edge retention, making it perfect for industrial applications and repair workshops.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metric Fine Thread Die MF5 | HSS Material | Two-Sided Cut | by Wurth
Brand: Wurth
SKU: 6520505
Alternatively Known As: Metric Fine Thread Die, MF5 Thread Cutter, HSS Round Die, Threading Die for Steel
Technical Specifications
- Type description: For metric ISO fine thread DIN 13
- Cutting material: HSS
- Surface: Plain
- Thread type: Metric fine thread
- Form: B (closed, pre-slotted design)
- Tolerance class: 6g
- Thread type x nominal diameter: MF5
- Pitch: 0.5 mm
- Outer diameter: 20 mm
- Height: 5 mm
- Material to be processed: Steel up to 850 N/mm² strength, Cast iron
- Dimensions (H x L x W): 5mm x 20mm x 20mm
- Weight: 0.1 kg
Key Features
- Two-sided cut allows use on both sides
- Threads can be cut in one process
- Easy cutting with excellent chip removal in cutting direction
- High edge retention for durability
Professional Installation Requirements
- Use by trained machinists or professionals experienced in thread cutting is recommended for optimal results and safety.
Applications
- Machining: Production of metric ISO fine threads in steel and cast iron
- Industrial: Thread cutting in manufacturing and repair workshops
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable HSS material reduces frequency of replacement
- Efficient cutting reduces waste material
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Round Die for Metric ISO Fine Threads MF5 is available now for immediate purchase. Ideal for machining and industrial thread cutting applications.
