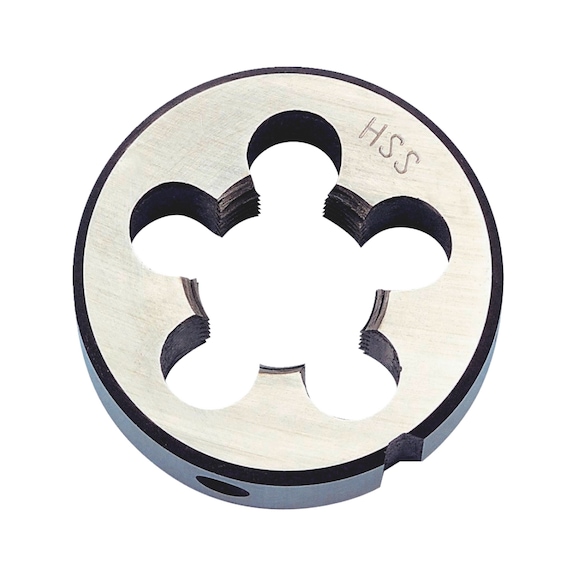

Metric Fine Thread Die MF6 | HSS Material | Two-Sided Cut | by Wurth
The Metric Fine Thread Die MF6 is designed for precision machining of ISO fine threads in steel and cast iron. Made from durable HSS material, it features a two-sided cut for efficient threading in one process, ensuring excellent chip removal and high edge retention. Ideal for trained machinists, this die is perfect for applications requiring high strength and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metric Fine Thread Die MF6 | HSS Material | Two-Sided Cut | by Wurth
Brand: Wurth
SKU: 65206075
Alternatively Known As: Metric Fine Thread Die, MF6 Thread Cutter, ISO Fine Thread Die
Technical Specifications
- Type description: For metric ISO fine thread DIN 13
- Cutting material: HSS
- Surface: Plain
- Thread type: Metric fine thread
- Form: B
- Tolerance class: 6g
- Thread type x nominal diameter: MF6
- Pitch: 0.75 mm
- Outer diameter: 20 mm
- Height: 7 mm
- Material to be processed: Steel, Cast iron
- Dimensions (H x L x W): 7mm x 20mm x 20mm
- Weight: 0.1 kg
Key Features
- Two-sided cut allows use on both sides
- Threads can be cut in one process
- Easy cutting with excellent chip removal in cutting direction
- High edge retention for durability
Professional Installation Requirements
- Use by trained machinists or professionals experienced in thread cutting for optimal results and safety.
Applications
- Machining metric ISO fine threads in steel up to 850 N/mm² strength
- Thread cutting in cast iron materials
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable HSS cutting material reduces frequency of replacement
- Efficient cutting reduces waste material
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy.
Available Now
The Wurth Round Die for Metric ISO Fine Threads MF6 is available for immediate purchase, ideal for precision machining applications in metalworking.
