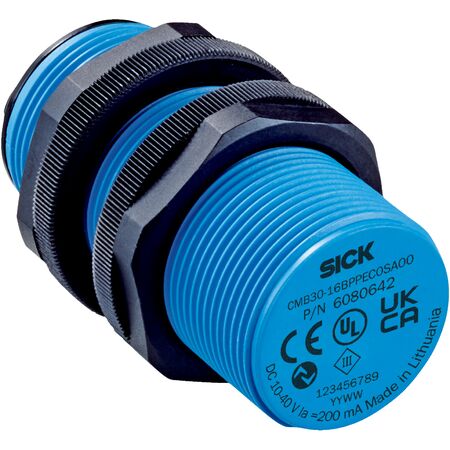

Metric Proximity Sensor M30 | 16mm Sensing Range | IP67/IP68/IP69K Rated | by SICK
The Metric Proximity Sensor M30 is designed for precise object detection in industrial automation, featuring a sensing range of up to 16mm and a safe sensing range of 12.24mm. With a robust IP67/IP68/IP69K rated enclosure, it withstands harsh environments, making it ideal for machine safety and control systems. Its PNP complementary output and IO-Link V1.1 communication interface ensure seamless integration into your automation processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric, M30 x 1.5 thread
- Sensing range Sn: 0 mm to 16 mm
- Safe sensing range Sa: 12.24 mm
- Installation type: Flush
- Switching frequency: 50 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP complementary, wire configurable
- Electrical wiring: DC 4-wire
- Adjustment: Sensitivity potentiometer (11 turns), IO-Link configurable
- Enclosure rating: IP67, IP68, IP69K
- Supply voltage: 10 V DC to 36 V DC
- Current consumption: ≤ 20 mA
- Voltage drop: ≤ 2 V DC
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 5%
- Temperature drift: ±10%
- Shock resistance: 30 g, 11 ms shocks per EN 60068-2-27
- Vibration resistance: 10 Hz to 150 Hz, 1 mm / 15 g per EN 60068-2-6
- Ambient operating temperature: -30°C to +85°C
- Housing material: Plastic, PBT
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 74mm x 74mm x 30mm
- Weight: 0.1 kg
Key Features
- Metric housing with M30 x 1.5 thread size
- Sensing range up to 16 mm with safe sensing range of 12.24 mm
- Flush installation type
- Switching frequency of 50 Hz with PNP complementary output
- Wire configurable output characteristic
- Visual adjustment indicator for sensitivity
- IP67, IP68, and IP69K rated enclosure for harsh environments
- Shock and vibration resistant according to EN 60068 standards
- Wide ambient operating temperature range from -30°C to +85°C
- IO-Link V1.1 communication interface with COM2 (38.4 kBaud)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and configuration, ensuring proper mounting torque and connector integrity.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Manufacturing process monitoring
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP69K rated housing reduces need for frequent replacements
- Low power consumption with DC 4-wire electrical wiring
- Supports IO-Link for smart sensor integration reducing system waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CMB30-16BPPEC0SA00 proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring reliable object detection.
