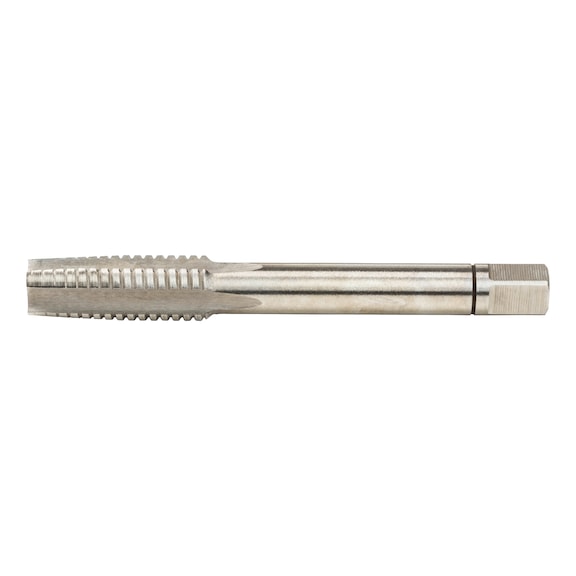

Metric Taper Tap M5 | DIN 352 Compliant | HSS Material | Trim Cut Form A | by Wurth

BRAND: Wurth
SKU: 64015
$49.60 List price: $62.30
+ −
30 Days Return Delivery Options
The Metric Taper Tap M5 is designed for precise thread cutting, featuring a DIN 352 compliance and durable high-speed steel (HSS) construction. Ideal for machining metric ISO standard threads by hand, this tap is suitable for use in steel, non-ferrous metals, and cast iron materials up to 800 N/mm² strength, ensuring reliable performance in both through and blind holes.

Product Name/Title: Metric Taper Tap M5 | DIN 352 Compliant | HSS Material | Trim Cut Form A | by Wurth

Brand: Wurth

SKU: 64015

Alternatively Known As: Metric Taper Tap M5, Thread Cutter Tap, Hand Threading Tap

Technical Specifications
  • Type description: Taper tap
  • Standards: DIN 352
  • Thread type x nominal diameter: M5
  • Pitch: 0.8 mm
  • Length: 50 mm
  • Thread length (metric thread): 16 mm
  • Shank diameter: 6 mm
  • Size of square: 4.9 mm
  • Core hole diameter: 4.2 mm
  • Material: HSS
  • Thread type: Metric thread
  • Dimensions (H x L x W): 50mm x 50mm x 6mm
  • Weight: 0.1 kg
Key Features
  • Trim cut form A for precise thread cutting
  • Complies with DIN 352 standard
  • High-speed steel (HSS) material for durability
  • Metric thread type with M5 nominal diameter and 0.8 mm pitch
Professional Installation Requirements
  • Use by trained machinists or professionals experienced in hand threading for best results.
Applications
  • Machining: Producing metric ISO standard threads by hand
  • Suitable for steel, non-ferrous metals, and cast iron materials up to 800 N/mm² strength
  • Use in through holes and blind holes
Standards & Compliance
  • AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • Durable HSS material reduces frequent replacements and waste
Warranty Information

Standard manufacturer warranty applies.

Available Now

The Wurth 64015 Taper Tap M5 is available for immediate purchase, ideal for precision machining and threading applications.
