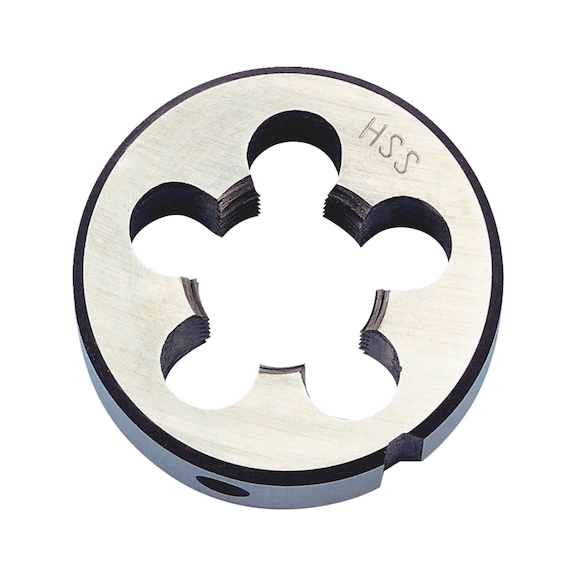

Metric Thread Cutter M10 | HSS Material | Two-Sided Cut | High Edge Retention | by Wurth
The Metric Thread Cutter M10 is designed for precision cutting of standard metric ISO threads in steel and cast iron. Made from durable HSS material, it features a two-sided cut for efficient threading in one process, ensuring excellent chip removal and high edge retention. Ideal for trained machinists and technicians, this tool is perfect for industrial applications and maintenance tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metric Thread Cutter M10 | HSS Material | Two-Sided Cut | High Edge Retention | by Wurth
Brand: Wurth
SKU: 65210
Alternatively Known As: Metric Thread Cutter M10, Round Thread Die M10, ISO Thread Die M10
Technical Specifications
- Type description: For metric ISO thread DIN 13
- Cutting material: HSS
- Surface: Plain
- Thread type: Metric thread
- Form: B (closed, pre-slotted design)
- Tolerance class: 6g
- Thread type x nominal diameter: M10
- Pitch: 1.5 mm
- Outer diameter: 30 mm
- Height: 11 mm
- Material to be processed: Steel, Cast iron
- Dimensions (H x L x W): 11mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- Two-sided cut allows use on both sides
- Threads can be cut in one process
- Easy cutting with excellent chip removal in cutting direction
- High edge retention for durability
Professional Installation Requirements
- Professional use by trained machinists or technicians is recommended for optimal thread cutting performance.
Applications
- Machining: Cutting standard metric ISO threads in steel and cast iron
- Industrial: Thread production for mechanical and engineering applications
- Maintenance and Repair: Thread cutting for equipment and machinery
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable HSS cutting material reduces frequency of replacement
- Efficient cutting reduces material waste
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy.
Available Now
The Wurth Round Die M10 Metric ISO Thread Cutter is available now for immediate purchase. Ideal for machining and industrial thread cutting applications.
