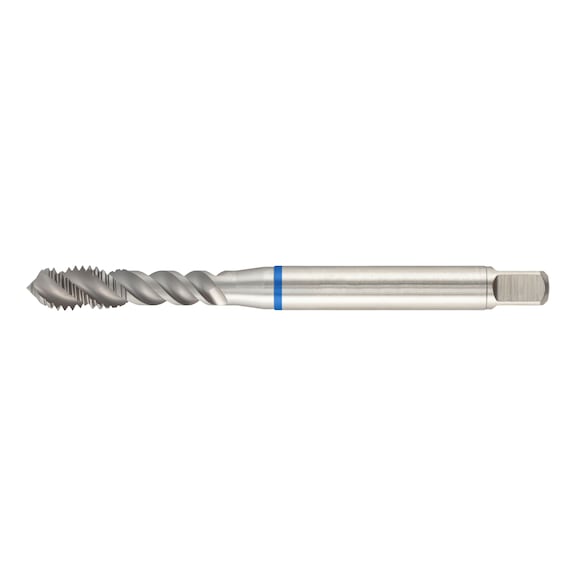

Metric Thread Cutter M2.5 | Vario Geometry | Enhanced Cutting Edge | Steel Material | by Wurth
The Metric Thread Cutter M2.5 is designed for precision machining in steel materials, featuring newly developed Vario geometry for optimized cutting and a multi-stage finishing process for enhanced cutting edge preparation. Ideal for trained machinists, this tool ensures precise threading in general structural steels and non-alloyed tempering steels, making it a reliable choice for milling and drilling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metric Thread Cutter M2.5 | Vario Geometry | Enhanced Cutting Edge | Steel Material | by Wurth
Brand: Wurth
SKU: 653800250
Alternatively Known As: Metric Thread Cutter M2.5, Steel Thread Tap, Machine Tap M2.5, Wurth Thread Cutter
Technical Specifications
- Thread type: Metric thread
- Material to be processed: Steel
- Hole type: Blind hole approx. 2.5xD
- Suitable for machine type: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Thread type x nominal diameter: M2.5
- Pitch: 0.45 mm
- Length: 50 mm
- Shank diameter: 2.8 mm
- Size of square: 2.1 mm
- DIN: 371
- Cutting material: HSCo
- Surface: Plain
- Form: C
- Core hole diameter: 2.05 mm
- Twist angle: 45° Vario
- Shank style: Cylindrical with square drive
- Tolerance of screw taps: ISO 2X (6HX)
- Suitable for tensile strength up to: 1200 N/mm²
- Service life (points system): 3 of 4 points
- Trueness to gauge (points system): 4 of 4 points
- Versatility (points system): 2 of 4 points
- Cutting behaviour (points system): 3 of 4 points
- Chip formation (points system): 3 of 4 points
- Material of sub-group: General structural steels, Non-alloyed tempering steels
- Dimensions (H x L x W): 50mm x 50mm x 2.8mm
- Weight: 0.1 kg
Key Features
- Newly developed Vario geometry for optimized cutting
- Multi-stage finishing process for enhanced cutting edge preparation
- Angled threaded part for precise threading
- Cutting edge geometry tailored specifically for steel materials
- Up to 30% longer service life compared to conventional plain machine taps
- Exclusive availability from Wurth
- Product packaging made from 100% PCR recycled plastic and is fully recyclable
Professional Installation Requirements
- Use by trained machinists or operators familiar with thread cutting tools and safety procedures is recommended.
Applications
- Machining: Thread cutting in general structural steels and non-alloyed tempering steels
- Suitable for use with milling/drill centers and pedestal drilling machines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic
- Fully recyclable packaging reduces environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Metric Thread Cutter M2.5 is available for immediate purchase, ideal for precision machining in steel materials.
