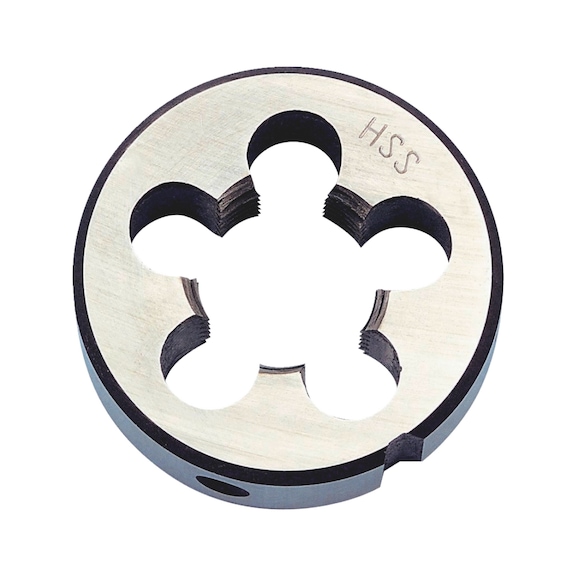

Metric Thread Cutter M4 | HSS Material | Two-Sided Cut Design | High Edge Retention | by Wurth
The Metric Thread Cutter M4 is designed for efficient threading in steel and cast iron, featuring a high-speed steel construction for durability. With a unique two-sided cut, it allows for threading in one process, saving you time and ensuring excellent chip removal. Ideal for trained machinists and professionals, this tool is perfect for machining, industrial applications, and maintenance tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metric Thread Cutter M4 | HSS Material | Two-Sided Cut Design | High Edge Retention | by Wurth
Brand: Wurth
SKU: 6524
Alternatively Known As: Metric Thread Cutter M4, Round Thread Die M4, ISO Thread Die M4
Technical Specifications
- Type description: For metric ISO thread DIN 13
- Cutting material: HSS (High-Speed Steel)
- Surface: Plain
- Thread type: Metric thread
- Form: B (closed, pre-slotted design)
- Tolerance class: 6g
- Thread type x nominal diameter: M4
- Pitch: 0.7 mm
- Outer diameter: 20 mm
- Height: 5 mm
- Material to be processed: Steel up to 850 N/mm² strength, Cast iron
- Dimensions (H x L x W): 5mm x 20mm x 20mm
- Weight: 0.1 kg
Key Features
- Two-sided cut allows use on both sides for efficient threading
- Threads can be cut in one process for time-saving
- Easy cutting with excellent chip removal in cutting direction
- High edge retention for durability and long tool life
Professional Installation Requirements
- Use by trained machinists or professionals with appropriate threading equipment is recommended for optimal results and safety.
Applications
- Machining: Cutting standard metric ISO threads in steel and cast iron
- Industrial: Thread production for mechanical and engineering applications
- Maintenance and Repair: Thread restoration and creation in metal parts
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable HSS material reduces frequency of tool replacement, minimizing waste
- Efficient cutting reduces energy consumption during machining
Warranty Information
Wurth provides standard manufacturer warranty covering defects in material and workmanship.
Available Now
The Wurth Round Die M4 Metric ISO Thread Cutter is available now for immediate purchase. Ideal for machining and industrial threading applications.
