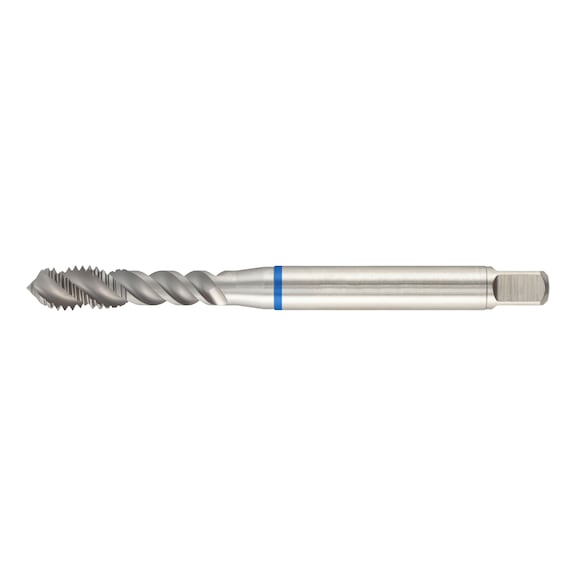

Metric Thread Cutter M6 | Vario Geometry | Optimized Cutting Edge | 80mm Length | by Wurth
The Metric Thread Cutter M6 is designed for precision machining in steel, featuring newly developed Vario geometry for optimized cutting and a multi-stage finishing process for superior edge preparation. Ideal for trained machinists, this tool ensures efficient threading in general structural steels and non-alloyed tempering steels, providing up to 30% longer service life compared to conventional taps.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metric Thread Cutter M6 | Vario Geometry | Optimized Cutting Edge | 80mm Length | by Wurth
Brand: Wurth
SKU: 653800600
Alternatively Known As: Metric Thread Cutter M6, Machine Tap M6, Steel Thread Cutter, Wurth Thread Cutter
Technical Specifications
- Thread type: Metric thread
- Material to be processed: Steel
- Hole type: Blind hole up to 2.5xD
- Suitable for machine type: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Thread type x nominal diameter: M6
- Pitch: 1.0 mm
- Length: 80 mm
- Shank diameter: 6.0 mm
- Size of square: 4.9 mm
- DIN: 371
- Cutting material: HSCo
- Surface: Plain
- Form: C
- Core hole diameter: 5.0 mm
- Twist angle: 45° Vario
- Shank style: Cylindrical with square drive
- Tolerance of screw taps: ISO 2X (6HX)
- Suitable for tensile strength up to: 1200 N/mm²
- Service life (points system): 3 of 4 points
- Trueness to gauge (points system): 4 of 4 points
- Versatility (points system): 2 of 4 points
- Cutting behaviour (points system): 3 of 4 points
- Chip formation (points system): 3 of 4 points
- Material of sub-group: General structural steels, Non-alloyed tempering steels
- Dimensions (H x L x W): 80mm x 80mm x 6mm
- Weight: 0.1 kg
Key Features
- Newly developed Vario geometry for optimized cutting
- Multi-stage finishing process for optimized cutting edge preparation
- Angled threaded part for efficient threading
- Cutting edge geometry precisely tailored to steel materials
- Up to 30% longer service life compared to conventional plain machine taps
- Exclusive availability from Wurth
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
Professional Installation Requirements
- Use by trained machinists or operators familiar with thread cutting tools and safety procedures is recommended.
Applications
- Machining: Milling/drill centers, pedestal drilling machines
- Thread cutting in general structural steels and non-alloyed tempering steels
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic and is fully recyclable, reducing environmental impact.
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy.
Available Now
The Wurth Metric Thread Cutter M6 is available for immediate purchase, ideal for machining steel components in industrial and manufacturing settings.
