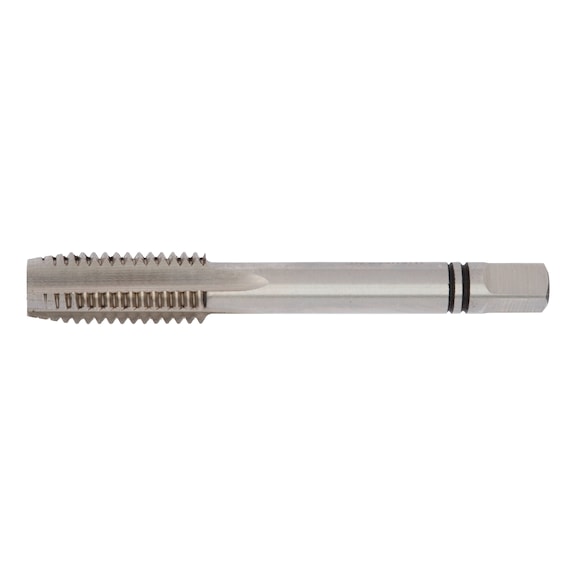

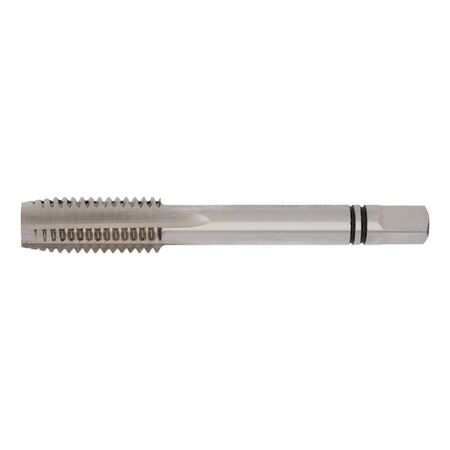

Metric Thread Tap M2.5 | HSS Material | DIN 352 Compliant | Trim Cut Form D | by Wurth
The Metric Thread Tap M2.5 is crafted from high-speed steel (HSS) for durability and precision in thread cutting. Designed for producing ISO standard threads in steel, non-ferrous metals, and cast iron, this tap features a 0.45 mm pitch and complies with DIN 352 standards. Ideal for trained machinists, it ensures efficient machining with minimal waste, making it a reliable choice for metalworking and manufacturing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metric Thread Tap M2.5 | HSS Material | DIN 352 Compliant | Trim Cut Form D | by Wurth
Brand: Wurth
SKU: 640225
Alternatively Known As: Metric Thread Tap M2.5, HSS Thread Cutter, Hand Tap M2.5, ISO Metric Tap
Technical Specifications
- Type description: Second tap
- Standards: DIN 352
- Thread type x nominal diameter: M2.5
- Pitch: 0.45 mm
- Length: 40 mm
- Thread length (metric thread): 9 mm
- Shank diameter: 2.8 mm
- Size of square: 2.1 mm
- Core hole diameter: 2.05 mm
- Material: High-Speed Steel (HSS)
- Thread type: Metric thread
- Dimensions (H x L x W): 40mm x 40mm x 2.8mm
- Weight: 0.1 kg
Key Features
- Trim cut form D for precise thread cutting
- Complies with DIN 13 and DIN 352 standards
- High-Speed Steel (HSS) material for durability
- Designed for metric thread type M2.5 with 0.45 mm pitch
Professional Installation Requirements
- Use by trained machinists or professionals familiar with hand tapping techniques is recommended for safety and precision.
Applications
- Machining: Producing metric ISO standard threads by hand in through holes and blind holes
- Materials: Suitable for steel, non-ferrous metals, and cast iron with strength up to 800 N/mm²
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable HSS material reduces frequency of replacement and waste
- Precision cutting reduces material waste during machining
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth M2.5 Metric Thread Cutter Tap is available for immediate purchase, ideal for precision machining in metalworking and manufacturing applications.
