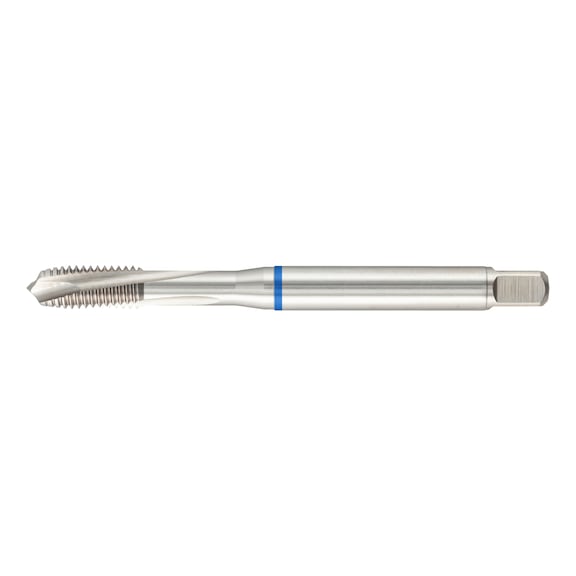

Metric Thread Tap M2.5 | Left-Hand Spiral & Premium Quality | Steel Cutter | by Wurth
The Metric Thread Tap M2.5 is designed for precision machining in steel, featuring a unique left-hand spiral geometry and a premium quality finish. Ideal for trained machinists, this tap offers up to 30% longer service life compared to conventional taps, making it perfect for general structural steels and non-alloyed tempering steels. Its advanced cutting edge geometry ensures optimal performance in milling and drilling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metric Thread Tap M2.5 | Left-Hand Spiral & Premium Quality | Steel Cutter | by Wurth
Brand: Wurth
SKU: 653700250
Alternatively Known As: Thread tap, Machine tap, Spiral point tap, Metric thread cutter, Steel thread cutter
Technical Specifications
- Thread type: Metric thread
- Material to be processed: Steel
- Hole type: Clearance hole approx. 3xD
- Suitable for machine type: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Thread type x nominal diameter: M2.5
- Pitch: 0.45 mm
- Length: 50 mm
- Shank diameter: 2.8 mm
- Size of square: 2.1 mm
- DIN: 371
- Cutting material: HSCo
- Surface: Plain
- Form: D
- Core hole diameter: 2.05 mm
- Shank style: Cylindrical with square drive
- Tolerance of screw taps: ISO 2X (6HX)
- Suitable for tensile strength up to: 1200 N/mm²
- Service life (points system): 3 of 4 points
- Trueness to gauge (points system): 4 of 4 points
- Versatility (points system): 2 of 4 points
- Cutting behaviour (points system): 3 of 4 points
- Chip formation (points system): 3 of 4 points
- Material of sub-group: General structural steels, Non-alloyed tempering steels
- Dimensions (H x L x W): 50mm x 50mm x 2.8mm
- Weight: 0.1 kg
Key Features
- Newly developed geometry combining a left-hand spiral and a spiral point tap
- Homogenised surface structure due to state-of-the-art finishing process
- Up to 30% longer service life compared to conventional plain machine taps
- Cutting edge geometry precisely tailored to steel materials
- Available exclusively from Wurth
- Product packaging made from 100% PCR (recycled plastic from household waste) and 100% recyclable
Professional Installation Requirements
- Use by trained machinists or operators familiar with machine tapping processes is recommended to ensure safety and precision.
Applications
- Machining general and wide-ranging applications in steels up to 1200 N/mm² strength
- Suitable for milling/drill centers and pedestal drilling machines
- Ideal for processing general structural steels and non-alloyed tempering steels
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% recycled plastic from household waste
- 100% recyclable product packaging reduces environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Specialist Thread Cutter for Steel is available now for immediate purchase. Ideal for machining applications requiring precision and durability in steel materials.
