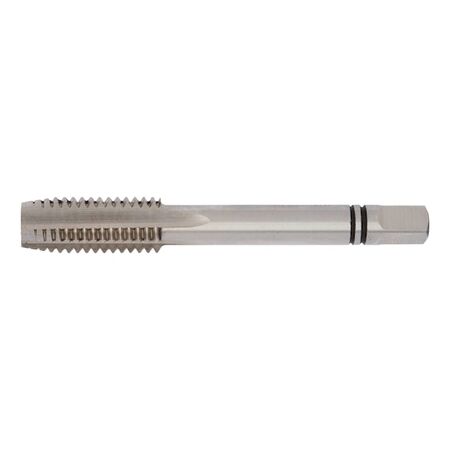

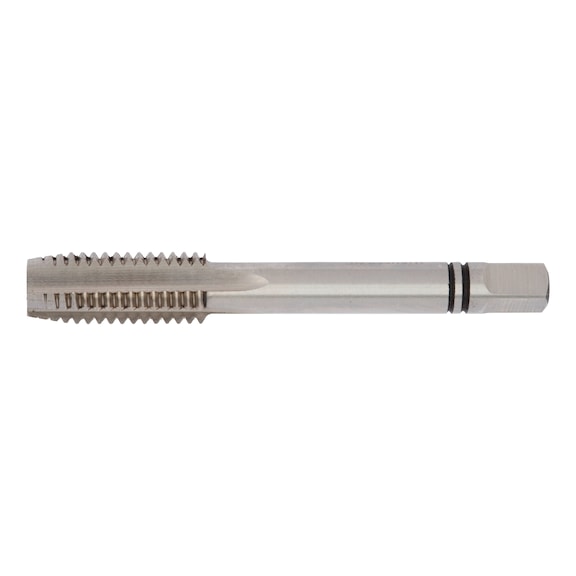

Metric Thread Tap M2 | HSS Material | DIN 352 Compliant | Trim Cut Form D | by Wurth
The Metric Thread Tap M2 is designed for precise thread cutting in machining applications. Made from durable HSS material, it complies with DIN 352 standards and is ideal for producing metric ISO standard threads in steel, non-ferrous metals, and cast iron. Perfect for trained machinists, this tap ensures safety and precision in both through and blind holes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metric Thread Tap M2 | HSS Material | DIN 352 Compliant | Trim Cut Form D | by Wurth
Brand: Wurth
SKU: 64022
Alternatively Known As: Metric Thread Tap M2, HSS Thread Cutter, DIN 352 Tap, Hand Threading Tap
Technical Specifications
- Type description: Second tap
- Standards: DIN 352
- Thread type x nominal diameter: M2
- Pitch: 0.4 mm
- Length: 36 mm
- Thread length (metric thread): 8 mm
- Shank diameter: 2.8 mm
- Size of square: 2.1 mm
- Core hole diameter: 1.6 mm
- Material: HSS
- Thread type: Metric thread
- Dimensions (H x L x W): 36mm x 36mm x 2.8mm
- Weight: 0.1 kg
Key Features
- Trim cut form D for precise thread cutting
- Complies with DIN 352 standard
- Suitable for metric ISO standard threads (DIN13)
- High-speed steel (HSS) material for durability
Professional Installation Requirements
- Use by trained machinists or professionals experienced in manual threading for safety and precision.
Applications
- Machining: Producing metric ISO standard threads by hand in through holes and blind holes
- Material groups: Steel, non-ferrous metals, cast iron up to 800 N/mm² strength
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable HSS material reduces tool replacement frequency, minimizing waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth M2 Metric Thread Cutter Tap is available now for immediate purchase. Ideal for machining applications requiring precise metric thread cutting.
