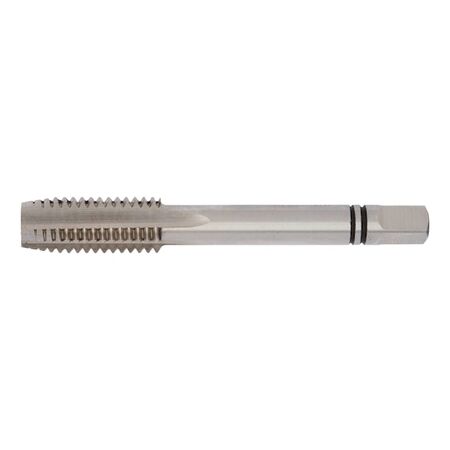

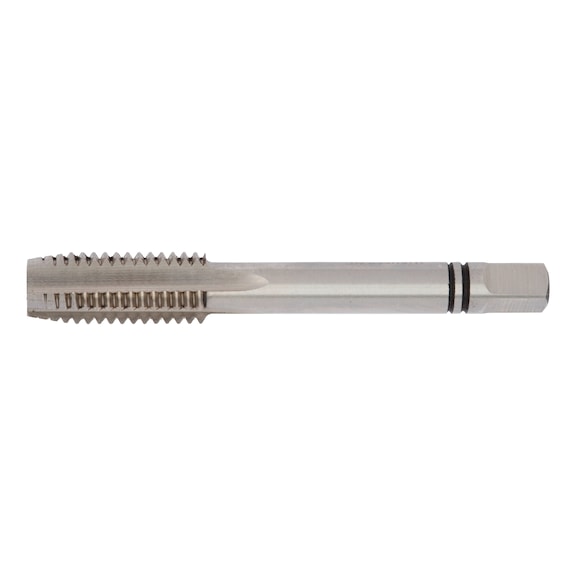

Metric Thread Tap M3 | HSS Material | DIN 352 Compliant | Trim Cut Form D | by Wurth
The Metric Thread Tap M3 is designed for precise thread cutting in machining applications. Made from durable high-speed steel (HSS), it complies with DIN 352 standards and features a trim cut form D for optimal performance. Ideal for producing metric ISO standard threads in steel, non-ferrous metals, and cast iron, this tap is perfect for professionals seeking reliability and precision in their work.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metric Thread Tap M3 | HSS Material | DIN 352 Compliant | Trim Cut Form D | by Wurth
Brand: Wurth
SKU: 64023
Alternatively Known As: Metric Thread Tap M3, HSS Thread Cutter, Hand Tap M3, DIN 352 Tap
Technical Specifications
- Type description: Second tap
- Standards: DIN 352
- Thread type x nominal diameter: M3
- Pitch: 0.5 mm
- Length: 40 mm
- Thread length (metric thread): 11 mm
- Shank diameter: 3.5 mm
- Size of square: 2.7 mm
- Core hole diameter: 2.50 mm
- Material: High-Speed Steel (HSS)
- Thread type: Metric thread
- Dimensions (H x L x W): 40mm x 40mm x 3.5mm
- Weight: 0.1 kg
Key Features
- Trim cut form D for precise thread cutting
- Complies with DIN 13 and DIN 352 standards
- High-speed steel (HSS) material for durability
- Designed for metric thread M3 with 0.5 mm pitch
Professional Installation Requirements
- Use by trained machinists or professionals experienced in thread cutting for safety and precision.
Applications
- Machining: Producing metric ISO standard threads by hand in through holes and blind holes
- Suitable for steel, non-ferrous metals, and cast iron materials up to 800 N/mm² strength
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable HSS material reduces tool replacement frequency, minimizing waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth M3 Metric Thread Cutter Tap is available for immediate purchase, ideal for machining and metalworking applications.
