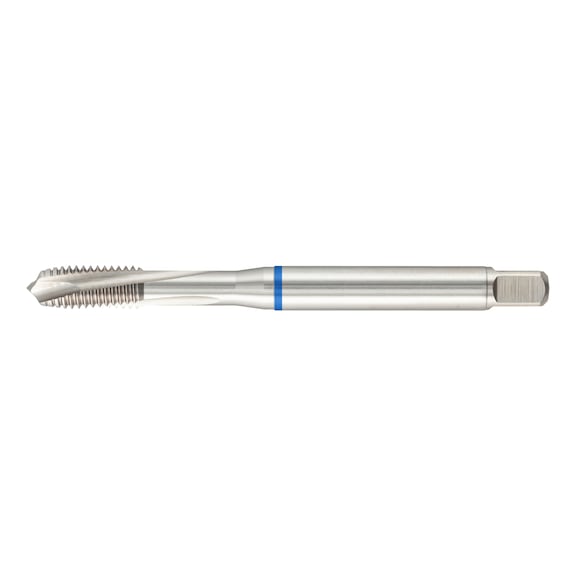

Metric Thread Tap M4 | Steel Thread Cutter | Left-Hand Spiral Design | 30% Longer Service Life | by Wurth
The Metric Thread Tap M4 is engineered for precision machining in steel, featuring a unique left-hand spiral design and a cutting edge geometry tailored for steel materials. Ideal for trained machinists, this premium tap offers up to 30% longer service life compared to conventional taps, making it perfect for general machining applications in structural steels and non-alloyed tempering steels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metric Thread Tap M4 | Steel Thread Cutter | Left-Hand Spiral Design | 30% Longer Service Life | by Wurth
Brand: Wurth
SKU: 653700400
Alternatively Known As: Metric Thread Tap M4, Steel Thread Cutter, Machine Tap M4, Spiral Point Tap
Technical Specifications
- Thread type: Metric thread
- Material to be processed: Steel
- Hole type: Clearance hole approx. 3xD
- Suitable for machine type: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Thread type x nominal diameter: M4
- Pitch: 0.7 mm
- Length: 63 mm
- Shank diameter: 4.5 mm
- Size of square: 3.4 mm
- DIN: 371
- Cutting material: HSCo
- Surface: Plain
- Form: D
- Core hole diameter: 3.3 mm
- Shank style: Cylindrical with square drive
- Tolerance of screw taps: ISO 2X (6HX)
- Suitable for tensile strength up to: 1200 N/mm²
- Service life (points system): 3 of 4 points
- Trueness to gauge (points system): 4 of 4 points
- Versatility (points system): 2 of 4 points
- Cutting behaviour (points system): 3 of 4 points
- Chip formation (points system): 3 of 4 points
- Material of sub-group: General structural steels, Non-alloyed tempering steels
- Dimensions (H x L x W): 63mm x 63mm x 4.5mm
- Weight: 0.1 kg
Key Features
- Newly developed geometry combining a left-hand spiral and a spiral point tap
- Homogenised surface structure due to state-of-the-art finishing process
- Up to 30% longer service life compared to conventional plain machine taps
- Cutting edge geometry precisely tailored to steel materials
- Available exclusively from Wurth
- Product packaging made from 100% PCR (recycled plastic from household waste) and 100% recyclable
Professional Installation Requirements
- Use by trained machinists or professionals familiar with thread cutting and machine tool operation is recommended for optimal results and safety.
Applications
- General machining applications in steels up to 1200 N/mm² strength
- Suitable for milling/drill centers and pedestal drilling machines
- Thread cutting in general structural steels and non-alloyed tempering steels
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Product packaging made from 100% PCR recycled plastic and is fully recyclable, reducing environmental impact.
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Metric Thread Cutter M4 is available for immediate purchase, ideal for precision machining in steel materials.
