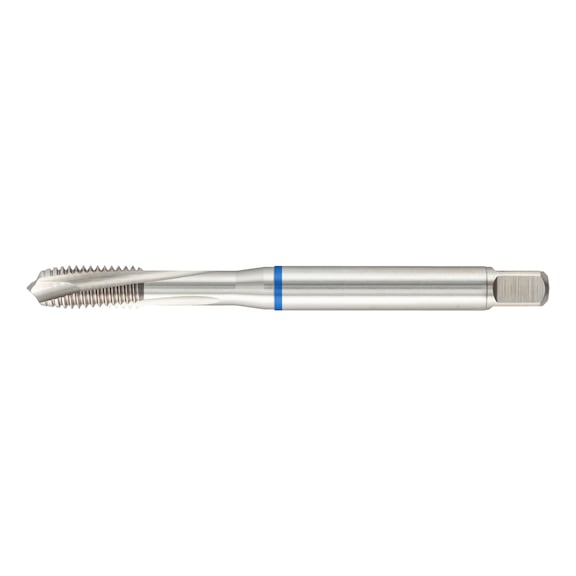

Metric Thread Tap M5 | Steel Thread Cutter | Premium Quality | by Wurth
The Metric Thread Tap M5 is designed for precision machining in steel materials, featuring a newly developed geometry that combines a left-hand spiral and a spiral point tap. Ideal for trained machinists, this premium quality tap offers up to 30% longer service life compared to conventional taps, ensuring efficient and reliable performance in milling and drilling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metric Thread Tap M5 | Steel Thread Cutter | Premium Quality | by Wurth
Brand: Wurth
SKU: 653700500
Alternatively Known As: Metric Thread Tap M5, Steel Thread Cutter, Machine Tap M5, Wurth Thread Cutter
Technical Specifications
- Thread type: Metric thread
- Material to be processed: Steel
- Hole type: Clearance hole approx. 3xD
- Suitable for machine type: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Thread type x nominal diameter: M5
- Pitch: 0.8 mm
- Length: 70 mm
- Shank diameter: 6.0 mm
- Size of square: 4.9 mm
- DIN: 371
- Cutting material: HSCo
- Surface: Plain
- Form: D
- Core hole diameter: 4.2 mm
- Shank style: Cylindrical with square drive
- Tolerance of screw taps: ISO 2X (6HX)
- Suitable for tensile strength up to: 1200 N/mm²
- Service life (points system): 3 of 4 points
- Trueness to gauge (points system): 4 of 4 points
- Versatility (points system): 2 of 4 points
- Cutting behaviour (points system): 3 of 4 points
- Chip formation (points system): 3 of 4 points
- Material of sub-group: General structural steels, Non-alloyed tempering steels
- Dimensions (H x L x W): 70mm x 70mm x 6mm
- Weight: 0.1 kg
Key Features
- Newly developed geometry combining a left-hand spiral and a spiral point tap
- Homogenised surface structure due to state-of-the-art finishing process
- Up to 30% longer service life compared to conventional plain machine taps
- Cutting edge geometry precisely tailored to steel materials
- Available exclusively from Wurth
- Product packaging made from 100% PCR (recycled plastic from household waste) and 100% recyclable
Professional Installation Requirements
- Use by trained machinists or professionals experienced with thread cutting tools is recommended for optimal performance and safety.
Applications
- Machining general structural steels
- Non-alloyed tempering steels
- Suitable for milling/drill centers and pedestal drilling machines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% recycled plastic from household waste
- 100% recyclable packaging reduces environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth M5 Metric Thread Cutter Tap is available for immediate purchase, ideal for precision machining in steel materials.
