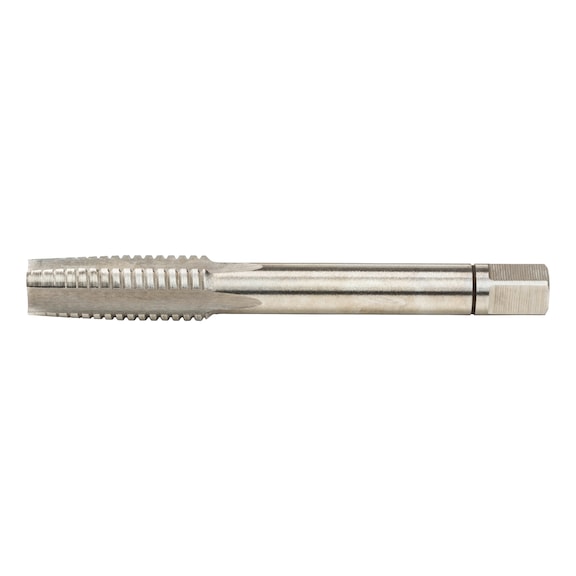

Metric Thread Tap M7 | Taper Tap | HSS Material | DIN 352 Compliant | by Wurth
The Metric Thread Tap M7 is designed for precise thread cutting, featuring a taper tap design and high-speed steel (HSS) construction for durability. Ideal for machining ISO standard threads by hand, it works effectively with steel, non-ferrous metals, and cast iron materials. This tap is perfect for both through holes and blind holes, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metric Thread Tap M7 | Taper Tap | HSS Material | DIN 352 Compliant | by Wurth
Brand: Wurth
SKU: 64017
Alternatively Known As: Metric Thread Tap, Taper Tap M7, Thread Cutter M7, HSS Thread Tap
Technical Specifications
- Type description: Taper tap
- Standards: DIN 352
- Thread type x nominal diameter: M7
- Pitch: 1.0 mm
- Length: 56 mm
- Thread length (metric thread): 19 mm
- Shank diameter: 6 mm
- Size of square: 4.9 mm
- Core hole diameter: 6.0 mm
- Material: HSS
- Thread type: Metric thread
- Dimensions (H x L x W): 56mm x 56mm x 6mm
- Weight: 0.1 kg
Key Features
- Trim cut form A for precise thread cutting
- Complies with DIN 352 standard
- High-speed steel (HSS) material for durability
- Metric thread type M7 with 1.0 mm pitch
- Suitable for manual thread production
Professional Installation Requirements
- No professional installation required; suitable for use by trained machinists or technicians.
Applications
- Machining: Producing metric ISO standard threads by hand
- Suitable for steel, non-ferrous metals, and cast iron materials up to 800 N/mm² strength
- Use in through holes and blind holes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable HSS material reduces frequent replacements and waste
- Manual operation reduces energy consumption compared to powered tools
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Taper Tap M7 x 1.0 mm is available for immediate purchase, ideal for precision machining and thread cutting applications.
