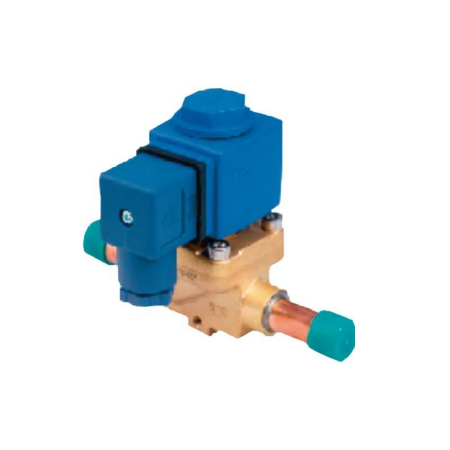

1/2" MF Solenoid Valve | Wide Operating Temperature | High Maximum Pressure | Din Plug Connection | by Aspen Pumps
The 1/2" MF Solenoid Valve is designed for HVAC and refrigeration systems, offering a wide operating temperature range from -40°C to 105°C and a high maximum operating pressure of 31 bar. With a reliable Din plug electrical connection and certifications from UL, VDE, and CQC, this valve ensures safe and efficient operation in various applications, including industrial and commercial refrigeration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1/2" MF Solenoid Valve | Wide Operating Temperature | High Maximum Pressure | Din Plug Connection | by Aspen Pumps
Brand: Aspen Pumps
SKU: 706-08
Alternatively Known As: 1/2 inch Male Female Solenoid Valve, Flare Solenoid Valve, Refrigeration Solenoid Valve, HVAC Solenoid Valve
Technical Specifications
- Length: 92 mm
- Height: 96 mm
- CV (Flow Coefficient): 2.2
- Liquid Kw R-134A: 35.3
- Liquid Kw R-407c: 38.2
- Liquid Kw R-404a: 26.7
- Operating Temperature Range: -40°C to 105°C
- Maximum Operating Pressure: 31 bar
- Safe Working Pressure (SWP): 43 bar
- Electrical Connection: Din plug
- Certifications: UL, VDE, CQC
- Dimensions (H x L x W): 96mm x 92mm x 40mm
- Weight: 0.5 kg
Key Features
- Suitable for HCFC, HFC, and A2L refrigerants
- Wide operating temperature range from -40°C to 105°C
- High maximum operating pressure up to 31 bar
- Din plug electrical connection
- Certified UL, VDE, and CQC for safety and quality
- SWP (Safe Working Pressure) of 43 bar
Professional Installation Requirements
- Installation by a qualified HVAC technician or licensed plumber is recommended to ensure proper connection and compliance with safety standards.
Applications
- HVAC systems using HCFC, HFC, and A2L refrigerants
- Refrigeration systems requiring solenoid valve control
- Industrial and commercial refrigeration applications
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Compatible with low global warming potential refrigerants (A2L)
- Supports energy-efficient HVAC and refrigeration system operation
Warranty Information
Standard manufacturer warranty applies. Please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps 1/2" MF Solenoid Valve is available now for immediate purchase. Ideal for HVAC and refrigeration systems requiring reliable solenoid valve control.
