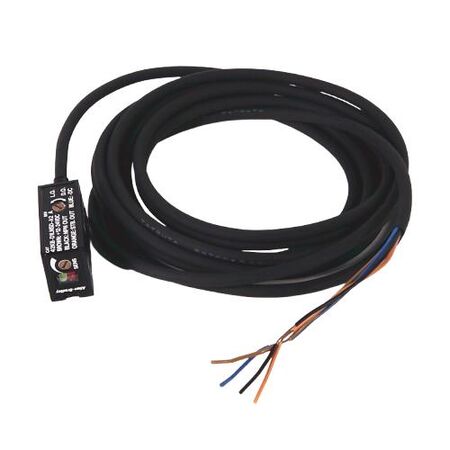

Micro Rectangular Sensor | Infrared Light Source | IP67 Rated | NPN Output | by Allen-Bradley
The Micro Rectangular Sensor from Allen-Bradley features a standard diffuse sensing mechanism with an infrared light source, making it ideal for industrial automation and control systems. With an IP67 rating for dust and water resistance, this sensor is built for durability and reliability in demanding environments. It operates on 12-24 VDC and offers selectable NPN output, ensuring versatility for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor Type: Standard diffuse
- Light Source: Infrared
- Output Type: NPN
- Voltage: 12-24 VDC
- Output Selectable: LO or DO
- Cable Length: 2 meters (6.5 ft)
- Housing Material: Plastic
- Sensing Direction: End view
- Ingress Protection: IP67, NEMA 6P
- Dimensions (H x L x W): 10mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- Micro rectangular sensor with side through hole
- Standard diffuse sensing with infrared light source
- Manually adjustable sensitivity
- NPN output type
- 12-24 VDC operating voltage
- LO or DO selectable output
- 2 meter (6.5 ft) cable length
- Plastic housing
- End view sensing
- IP67 and NEMA 6P rated for dust and water resistance
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation and control systems
- Object detection in manufacturing lines
- Position sensing in machinery
- Packaging and material handling systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP67 and NEMA 6P rating reduces need for frequent replacements, minimizing waste
- Low power consumption with 12-24 VDC operation
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 42KBD1LNEGA2 Micro Rectangular Sensor is available for immediate purchase, ideal for industrial automation and control applications.
