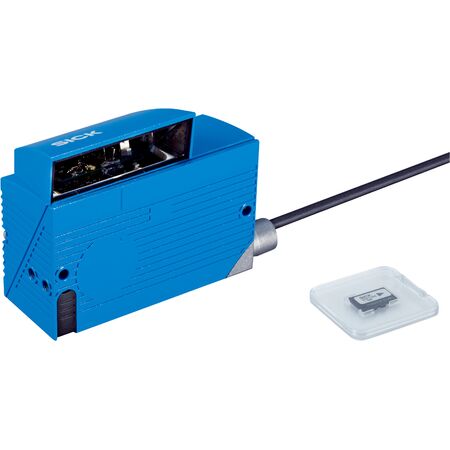

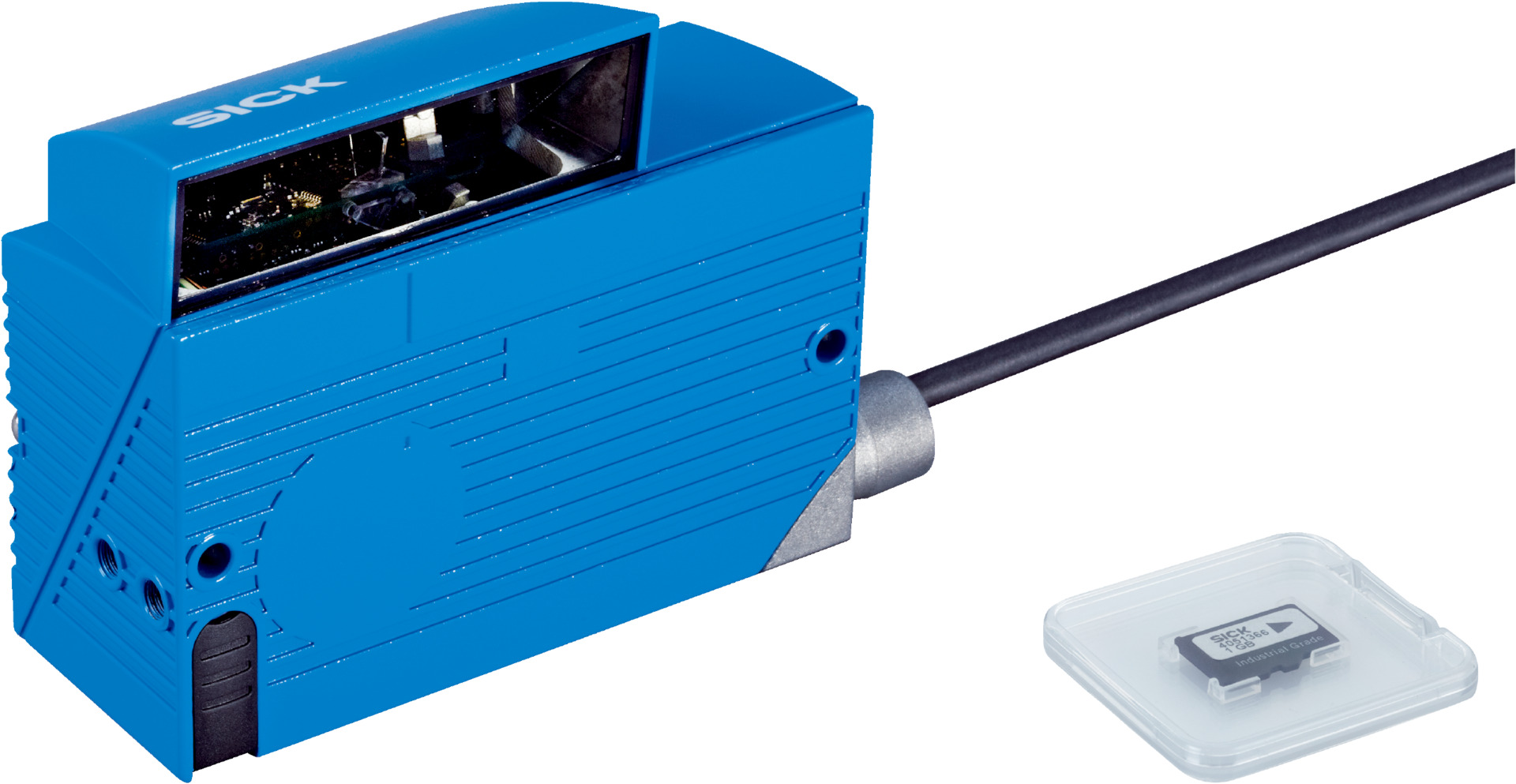

MicroSD Memory Card Kit | Long Range Line Scanner | IP65 Protection | by SICK
The MicroSD Memory Card Kit is a long-range line scanner designed for industrial barcode scanning. With a high scanning frequency of 400 Hz to 1000 Hz and the ability to read various 1D barcodes, it’s perfect for automated production lines and logistics. Built with durable aluminum housing and IP65 protection, this scanner ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Long Range
- Connection type: Cable with 5-pin M12 POWER and dual 4-pin M12 PROFINET connectors
- Reading field: Side (105°)
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser spot, 655 nm
- Laser class: 2, compliant with EN 60825-1:2014+A11:2021 and IEC 60825-1:2014
- Aperture angle: ≤ 50°
- Reading distance: 44 mm to 683 mm
- Scanning frequency: 400 Hz to 1000 Hz
- Code resolution: 0.35 mm to 1 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- Weight: approximately 310.5 g
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, Code 93, Codabar, UPC/GTIN/EAN, Interleaved 2 of 5, Pharmacode
- Number of codes per scan: 1 to 10 (Standard decoder), 1 to 6 (SMART620)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 1,500
- Digital inputs: 2
- Digital outputs: 4
- Optical indicators: 5 LEDs
- Configuration software: SOPAS ET
- Memory card: MicroSD
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.31 kg
Key Features
- Long range line scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, UPC, EAN, and more
- High scanning frequency from 400 Hz to 1000 Hz
- Durable aluminum die cast housing with IP65 protection
- Integrated MicroSD memory card for data storage
- Multiple connection options including PROFINET dual port
- Laser class 2 with visible red light spot at 655 nm
- High code resolution from 0.35 mm to 1 mm
- Robust against ambient light up to 2000 lx and vibration/shock resistant
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial barcode scanning and reading
- Automated production lines
- Logistics and warehouse management
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Energy-efficient operation with low power consumption of 5 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV618-D2540 MicroSD Memory Card Kit is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
