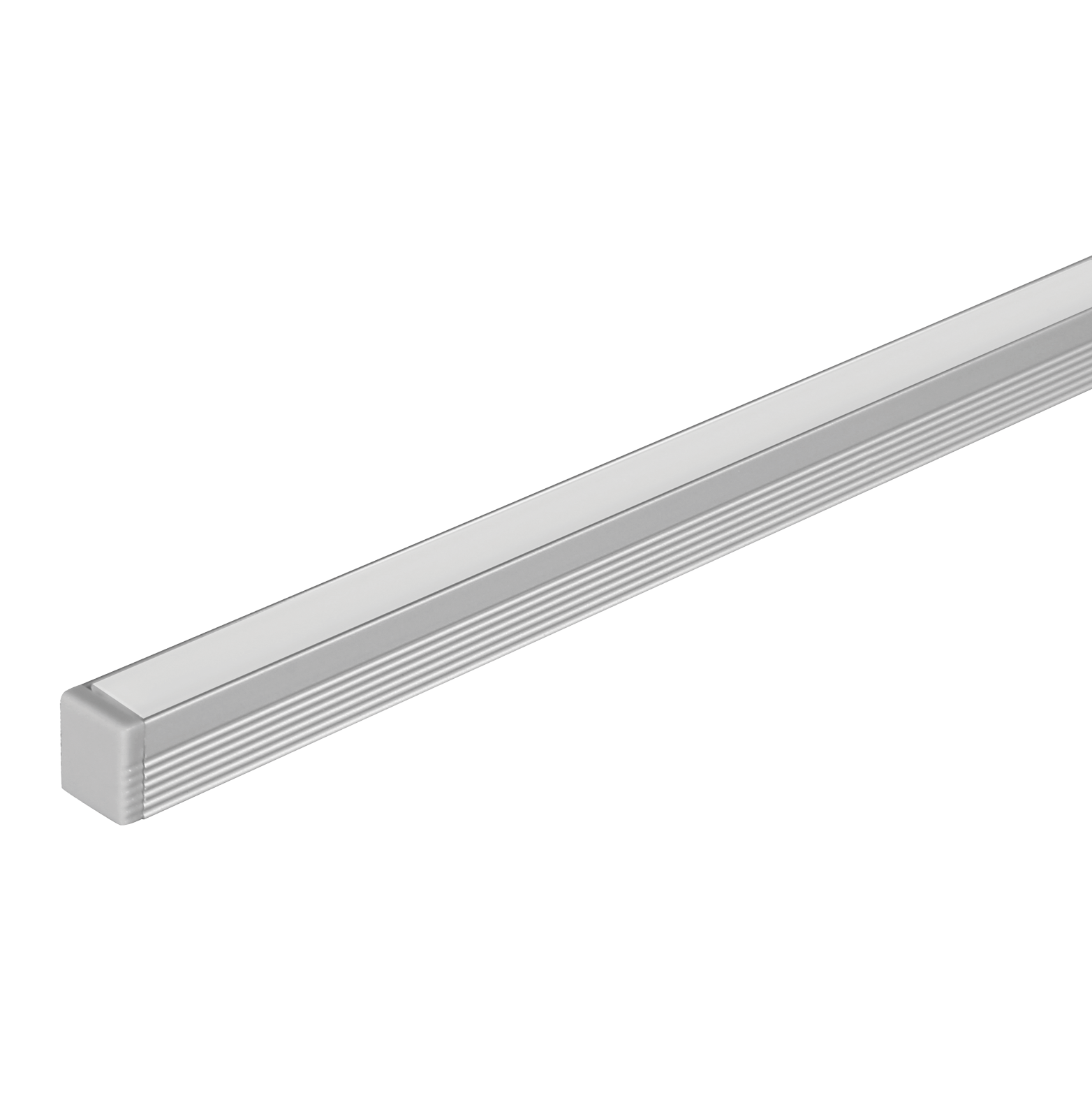

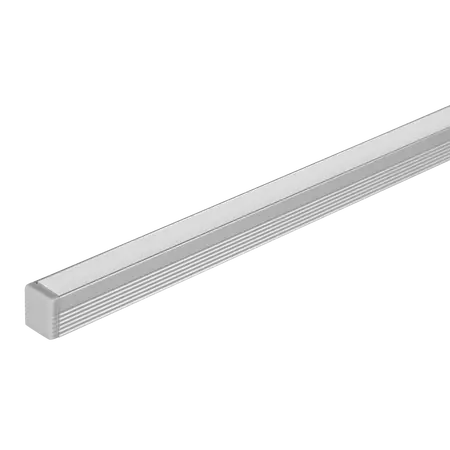

Micro Surface LED Profile Opal Diffuser Aluminium 3m Length Domus
Domus Micro surface mount aluminium LED strip profile, 8x9mm, opal diffuser, end caps included, aluminium, 3m length.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Micro LED Strip Profile, Surface-Mount Aluminium LED Channel, Aluminium LED Extrusion with Opal Diffuser
Technical Specifications
- Model: LP-0809-SM-3M
- Material: Extruded aluminium 6063
- Finish: Natural clear anodised aluminium
- Diffuser: Flat opal PMMA
- Installation: Surface or wall mounted
- Overall Length: 3000mm continuous
- Compatible LED Strip: Domus PLEX-MICRO-8W
- Accessories Included: End cap and mounting clips
- Driver Requirement: Remote driver required
- IP Rating: IP20
- Cutting: Can be cut to any length up to 3 metres
- Dimensions (H x L x W): 9mm x 3000mm x 8mm
- Weight: 0.4 kg
Key Features
- Slim 8 x 9mm surface-mount profile
- Flat opal diffuser provides a clean, uniform linear appearance
- Conceals and protects compatible LED strip lighting
- Helps keep LED strip lighting straight and linear
- Protects LEDs from dust, vapours and foreign objects
- Suitable for under-bench, pelmet, wardrobe and laundry installations
- Supplied with end caps and mounting clips
Applications
- Under-bench lighting
- Wardrobe lighting
- Laundry lighting
- Pelmet lighting
- Residential interior LED strip installations
- Commercial interior feature and task lighting
Environmental Benefits
- Extruded aluminium is durable and recyclable at end of service life
- Aluminium profile assists LED heat dissipation, which can support longer strip-light service life
- Opal diffuser and protective profile help reduce contamination and premature LED replacement
- Compatible with efficient LED strip lighting systems
Warranty Information
12-month replacement warranty for products not otherwise listed in the Domus Lighting warranty schedule, subject to proof of purchase, licensed installation where applicable, correct installation and other warranty conditions. Australian Consumer Law rights apply.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
