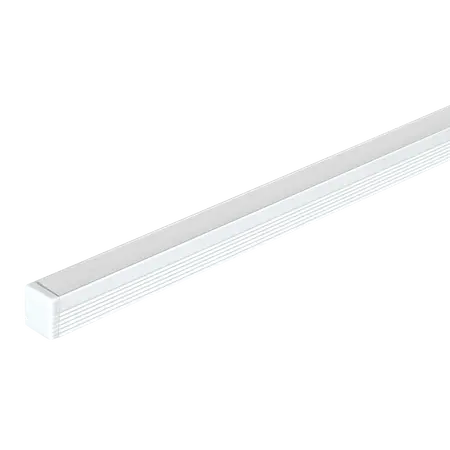

Micro Surface LED Profile Opal Diffuser White 3m Length Domus
Domus Micro surface mount aluminium LED strip profile, 8x9mm, opal diffuser, end caps included, white, 3m length.
Sign in
Please login to continue to your account.
Alternatively Known As: Micro LED Strip Aluminium Profile, Surface Mount LED Channel, LED Strip Diffuser Channel
- Material: Extruded aluminium 6063
- Finish: White powder-coated finish
- Diffuser: Flat opal PMMA
- Installation: Surface or wall mounted
- Profile Size: 8 mm wide x 9 mm high
- Continuous Length: 3000 mm
- Compatible Strip: Domus PLEX-MICRO-8W
- Included Accessories: End caps and mounting clips
- Driver Requirement: Remote driver required
- Ingress Protection: IP20
- Dimensions (H x L x W): 9mm x 3000mm x 8mm
- Weight: 0.18 kg
- Slim micro-width profile for compact LED strip installations
- Flat opal diffuser conceals the LED strip and provides smooth, uniform light output
- Protects LED strips from dust, vapours and foreign objects
- Suitable for under-bench, wardrobe and laundry applications
- Can be cut to the required length up to 3 metres
- White finish provides a clean architectural appearance
- Designed specifically for the Domus PLEX-MICRO LED strip range
- Under-bench lighting
- Wardrobe and cabinet lighting
- Laundry lighting
- Kitchen joinery and shelving
- Architectural linear lighting
- Compact residential and commercial LED strip installations
- Aluminium profile material is recyclable at end of service life
- Protects the LED strip from damage and contamination, helping extend system service life
- Supports replaceable LED strip lighting rather than requiring replacement of a complete luminaire
- Opal PMMA diffuser and aluminium profile are separate components, allowing targeted replacement where required
Domus Lighting's standard warranty is a 12-month replacement warranty for products not specifically listed in its warranty schedule. Warranty claims require proof of purchase and installation in accordance with Domus guidelines; electrical installation should be completed by a licensed electrician where applicable.
Available through Domus Lighting and authorised Australian distributors.
