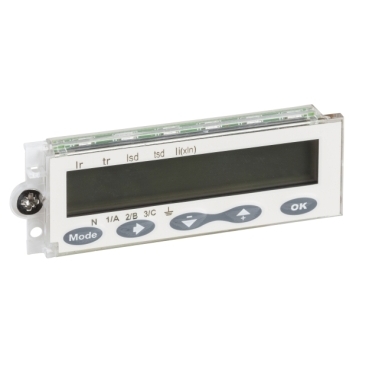

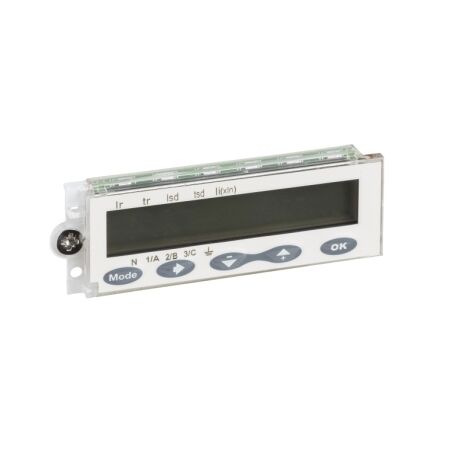

Micrologic 5 LCD Display | Real-Time Monitoring | Compatible with NSX100-630 | User-Friendly Interface | @Pack of 1 | by Clipsal
The Micrologic 5 LCD Display is designed for real-time monitoring and protection of NSX100 to NSX630 circuit breakers. With a user-friendly interface, it provides essential parameter readings and supports advanced protection functions. Ideal for electrical switchboards and industrial circuit breaker panels, this display module enhances energy management and ensures compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Micrologic 5 LCD Display | Real-Time Monitoring | Compatible with NSX100-630 | User-Friendly Interface | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV429483
Alternatively Known As: Micrologic 5 LCD Display, Schneider Electric NSX LCD Display, NSX100-630 Display Module, SCHLV429483 Display
Technical Specifications
- Display Type: LCD
- Compatibility: NSX100 to NSX630 circuit breakers with Micrologic 5
- Function: Real-time monitoring, protection, and parameter display
- Power Supply: Supplied by circuit breaker
- Operating Temperature: -25°C to +70°C
- Mounting: Direct fit to Micrologic 5 trip units
- Dimensions (H x L x W): 40mm x 30mm x 80mm
- Weight: 0.25 kg
Key Features
- LCD display module for Micrologic 5 series
- Compatible with NSX100 to NSX630 circuit breakers
- Provides real-time monitoring and protection data
- User-friendly interface for easy parameter reading
- Supports advanced protection, measurement, and communication functions
Professional Installation Requirements
- Installation must be performed by a licensed electrician or qualified technician familiar with NSX circuit breaker systems.
Applications
- Electrical switchboards
- Industrial circuit breaker panels
- Commercial and institutional power distribution systems
- Retrofitting or replacement in Schneider Electric NSX100 to NSX630 circuit breakers
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient energy monitoring and management
- Supports proactive maintenance, reducing unnecessary waste
- Facilitates optimal load management for reduced energy consumption
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Micrologic 5 LCD Display SCHLV429483 is available for immediate purchase. Ideal for upgrading or replacing display modules in NSX100-630 circuit breakers in commercial and industrial applications.
