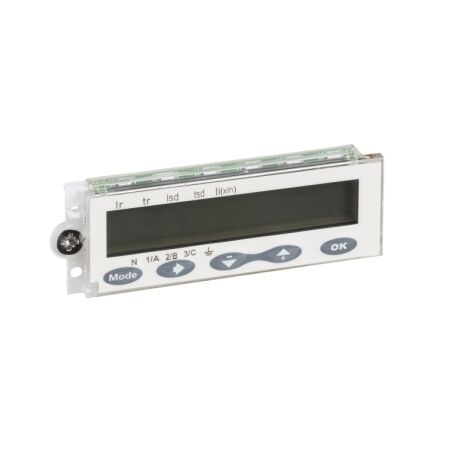

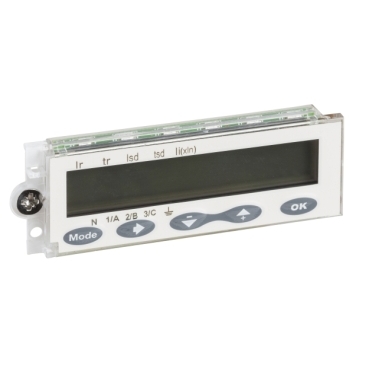

Micrologic 6.M LCD Display | Compatible with NSX100-630 | Easy Plug-in Replacement | by Clipsal
The Micrologic 6.M LCD Display is designed for Micrologic 6 E-M trip units, providing clear and accurate trip unit information. Ideal for maintaining and upgrading protection systems in commercial and industrial switchboards, this plug-in replacement is compatible with Compact NSX100 to NSX630 circuit breakers, ensuring reliable performance and easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Micrologic 6.M LCD Display | Compatible with NSX100-630 | Easy Plug-in Replacement | by Clipsal
Brand: Clipsal
SKU: SCHLV429486
Alternatively Known As: Micrologic 6M LCD Display, NSX100-630 LCD Module, SCHLV429486 Display Replacement, Micrologic Trip Unit Display
Technical Specifications
- Type: LCD display module
- Compatibility: Micrologic 6 E-M trip units
- For use with: Compact NSX100 to NSX630 circuit breakers
- Function: Displays trip unit status and protection parameters
- Mounting: Plug-in replacement
- Operating temperature: -25°C to +70°C
- Dimensions (H x L x W): 40mm x 20mm x 60mm
- Weight: 0.25 kg
Key Features
- LCD display module designed for Micrologic 6 E-M trip units
- Compatible with Compact NSX100 to NSX630 circuit breakers
- Provides clear and accurate trip unit information
- Easy replacement as a spare part
- Supports advanced protection and monitoring functions
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with switchboard maintenance and circuit breaker components.
Applications
- Replacement LCD display for Micrologic 6 E-M trip units
- Suitable for Compact NSX100 to NSX630 circuit breakers
- Ideal for electrical switchboards in commercial and industrial facilities
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Extends the life of circuit breakers by enabling easy replacement of display modules
- Reduces electronic waste by allowing component-level repairs
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Micrologic 6.M LCD Display (SCHLV429486) is available for immediate purchase. Ideal for maintaining and upgrading protection systems in commercial and industrial switchboards.
