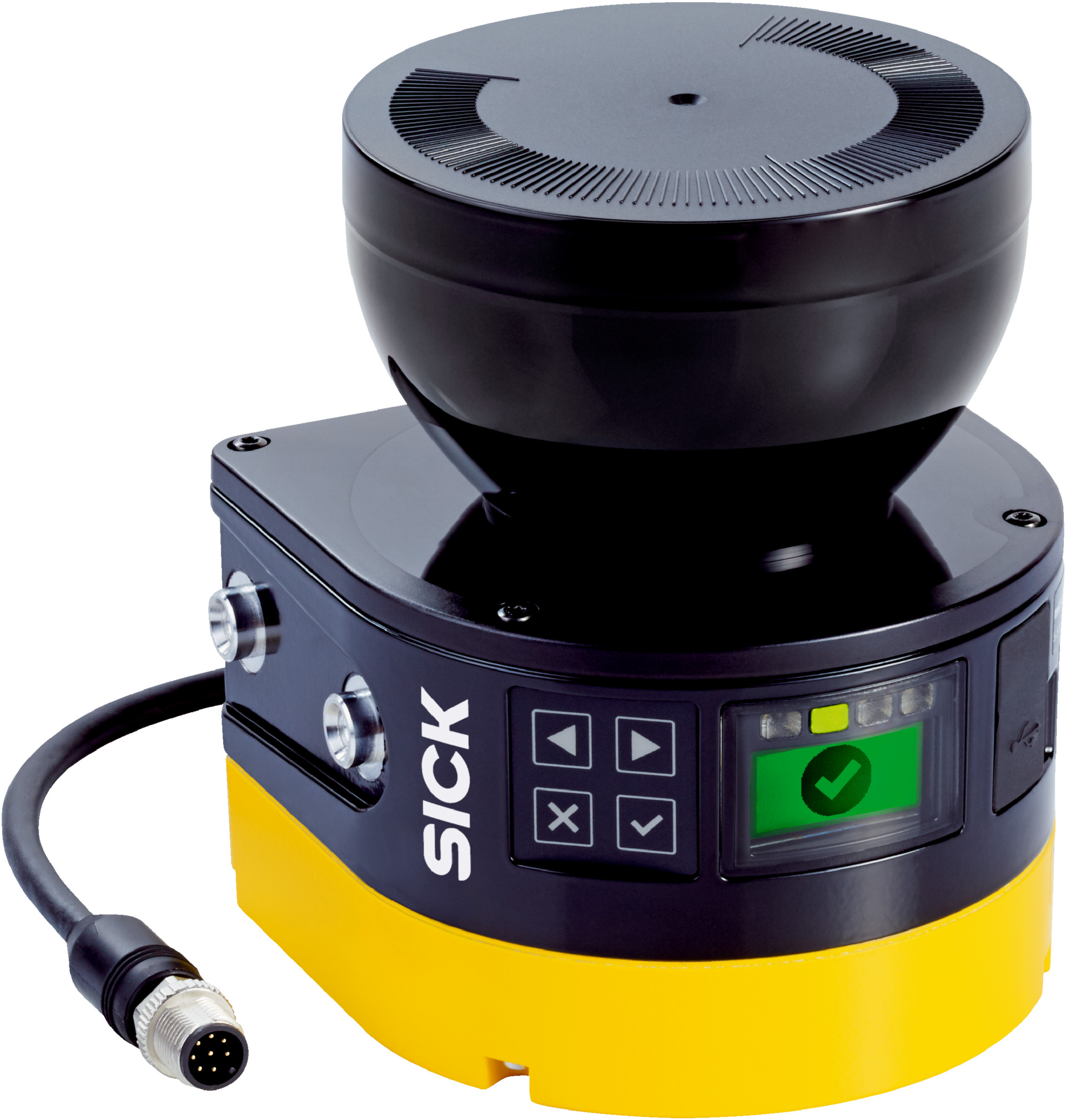

microScan3 Core I/O Safety Sensor | 5.5m Protective Range | 275° Scanning Angle | SIL 2 Compliance | by SICK
The microScan3 Core I/O Safety Sensor is designed for indoor safety monitoring in industrial automation, featuring a protective field range of 5.5 m and a warning field range of 40 m. With a 275° scanning angle and configurable resolution, it ensures optimal safety for machine safeguarding and perimeter protection. Built for robust performance, this sensor complies with Type 3 safety standards and includes an integrated graphic color display for easy status monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Protective field range: 5.5 m
- Warning field range: 40 m
- Scanning angle: 275°
- Configurable resolution: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm, 200 mm
- Angular resolution: 0.39°
- Response time: 70 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 7 W typical
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Housing material: Aluminum
- Optics cover material: Polycarbonate with scratch-resistant coating
- Connection: M12, 8 pin, A-coded male connector
- Configuration interface: USB 2.0 Mini-USB
- Display: Graphic color display and LEDs
- Dimensions (H x L x W): 135mm x 111mm x 112mm
- Weight: 1.15 kg
Key Features
- Protective field range of 5.5 m and warning field range of 40 m
- Simultaneous monitoring of up to 4 fields with 8 total fields
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Type 3 safety (IEC 61496) with SIL 2 and Category 3 (EN ISO 13849) compliance
- Integrated graphic color display and LEDs for status indication
- Robust aluminum housing with IP65 rating and scratch-resistant polycarbonate optics cover
- Multiple safety functions including restart interlock, external device monitoring, and safe contour detection
- Connection via M12 8-pin A-coded male connector and USB 2.0 Mini-USB for configuration
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with safety sensor systems and electrical standards to ensure compliance and optimal performance.
Applications
- Indoor safety monitoring in industrial automation
- Machine safeguarding and perimeter protection
- Automated guided vehicles and robotics safety
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7 W
- Durable construction reduces waste and replacement frequency
- Supports safer automation reducing risk of accidents and environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and duration.
Available Now

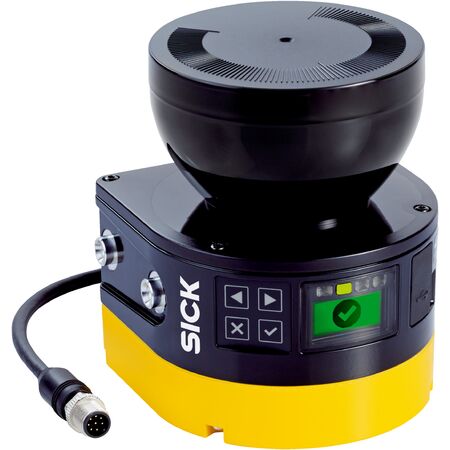

The SICK MICS3-AAAZ55AZ1P01 microScan3 Core I/O Safety Sensor is available for immediate purchase, ideal for industrial indoor safety monitoring and automation applications.
