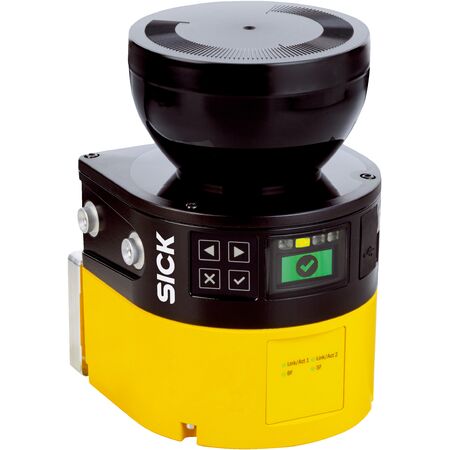

microScan3 Core PROFINET Safety Sensor | 5.5m Protective Range | 275° Scanning Angle | SIL 2 Safety Level | by SICK
The microScan3 Core PROFINET Safety Sensor is designed for indoor industrial safety monitoring, featuring a protective field range of 5.5 m and a warning field range of 40 m. With the ability to monitor up to 4 fields simultaneously and a 275° scanning angle, this sensor is perfect for machine safeguarding and factory automation. Built for reliability, it includes a robust IP65 rated aluminum housing and supports multiple interfaces including PROFINET with PROFIsafe protocol.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: microScan3 Core - PROFINET
- Protective field range: 5.5 m
- Warning field range: 40 m
- Number of simultaneously monitored fields: ≤ 4
- Number of fields: 8
- Scanning angle: 275°
- Configurable resolution: 30 mm to 200 mm
- Angular resolution: 0.39°
- Response time: 95 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption typical: 8.4 W
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -10 °C to +50 °C
- Housing material: Aluminum
- Optics cover material: Polycarbonate with scratch-resistant coating
- Interfaces: PROFINET with PROFIsafe, USB 2.0, Mini-USB, Ethernet
- Display: Graphic color display with LEDs
- Laser type: Pulsed laser diode, wavelength 845 nm, Laser class 1
- Dimensions (H x L x W): 163mm x 111mm x 112mm
- Weight: 1.65 kg
Key Features
- Protective field range of 5.5 m and warning field range of 40 m
- Simultaneous monitoring of up to 4 fields with 8 monitoring cases
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Safety integrity level SIL 2 and Category 3 safety classification
- Safe contour detection and static protective field switching
- Integrated configuration memory with PC-based Safety Designer software
- Multiple interfaces including PROFINET with PROFIsafe protocol
- Graphic color display and LED indicators for diagnostics
- Robust IP65 rated aluminum housing with scratch-resistant polycarbonate optics cover
- Operating temperature range from -10 °C to +50 °C
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial safety systems and PROFINET networks to ensure compliance and optimal performance.
Applications
- Indoor industrial safety monitoring
- Machine safeguarding
- Factory automation safety
- Robotics and automated production lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 8.4 W
- Durable construction reduces waste and replacement frequency
- Supports PROFIenergy for energy management in industrial networks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK microScan3 Core PROFINET Safety Sensor MICS3-ACAZ55LZ1P01 is available for immediate purchase, ideal for indoor industrial safety and automation applications.
