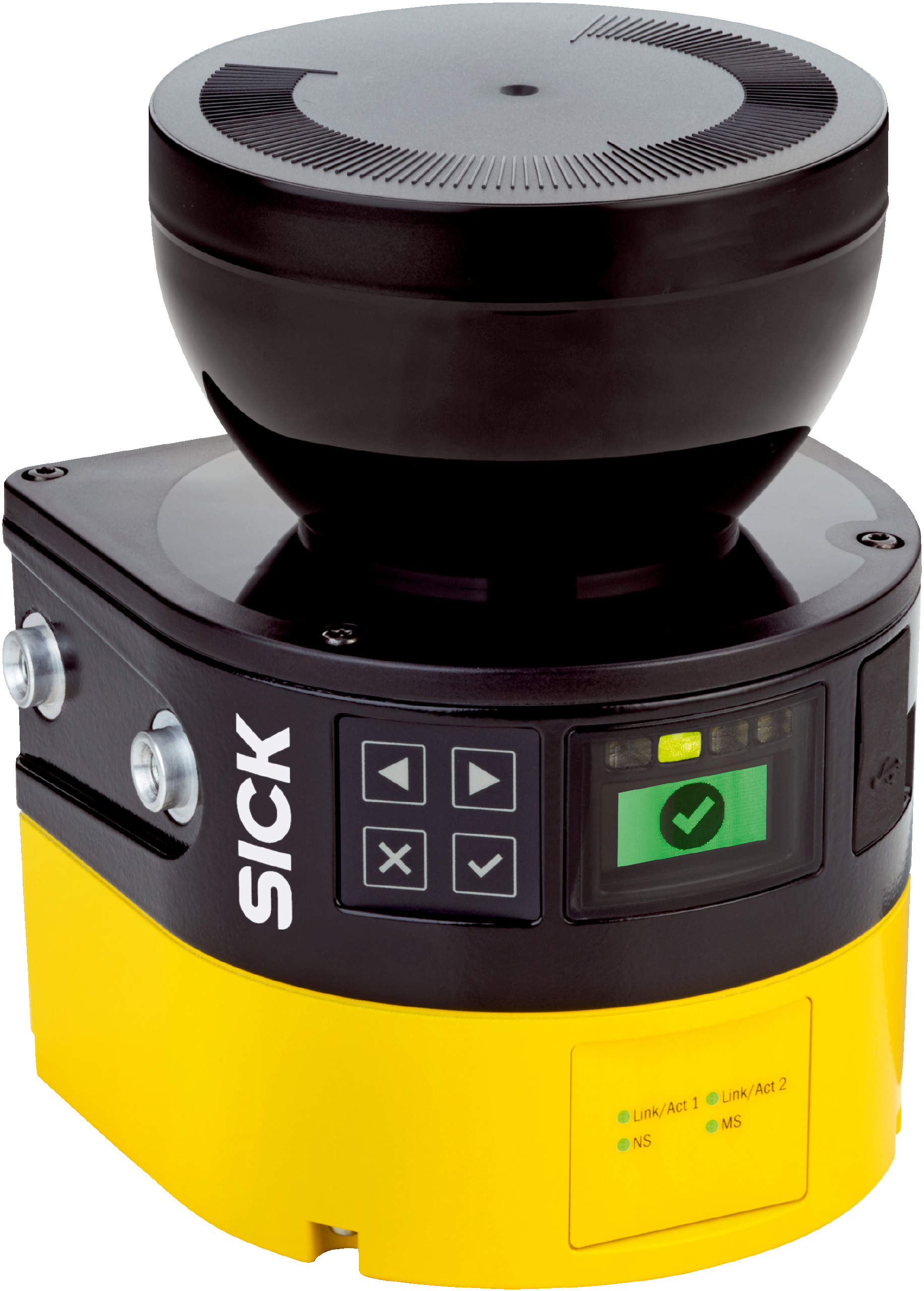

microScan3 Core Safety Sensor | 5.5m Protective Range | 275° Scanning Angle | SIL 2 Safety Level | by SICK
The microScan3 Core Safety Sensor is designed for indoor safety monitoring in industrial automation, featuring a protective field range of 5.5 m and a warning field range of 40 m. With the ability to monitor up to 4 fields simultaneously and a 275° scanning angle, this sensor ensures reliable machine safeguarding and perimeter protection. Built for durability with an IP65 rated enclosure, it’s perfect for factory automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: microScan3 Core - EtherNet/IP
- Protective field range: 5.5 m
- Warning field range: 40 m
- Number of simultaneously monitored fields: ≤ 4
- Number of fields: 8
- Number of monitoring cases: 8
- Scanning angle: 275°
- Configurable resolution: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm, 200 mm
- Angular resolution: 0.39°
- Response time: 95 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: Safety outputs via network are logic 0
- Connection type: 1 x male M12 4-pin A-coded for voltage supply, 2 x female M12 4-pin D-coded for EtherNet/IP
- Outputs: 4 safety outputs via network
- Configuration method: PC with Safety Designer software
- Configuration interfaces: USB 2.0, Mini-USB, Ethernet
- Data interface: EtherNet/IP CIP Safety
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption typical: 7.2 W
- Housing material: Aluminum
- Optics cover material: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance: IEC 60068 and related standards
- Light type: Pulsed laser diode, wavelength 845 nm
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 151mm x 111mm x 112mm
- Weight: 1.45 kg
Key Features
- Protective field range of 5.5 m and warning field range of 40 m
- Simultaneous monitoring of up to 4 fields with 8 monitoring cases
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Safety integrity level SIL 2 and Category 3 safety classification
- Integrated configuration memory and measured data output via Ethernet
- Multiple interfaces including USB 2.0, Mini-USB, and Ethernet
- Graphic color display with LEDs for status indication
- Robust aluminum housing with polycarbonate optics cover and scratch-resistant coating
- IP65 rated enclosure for dust and water protection
- Vibration and shock resistant compliant with IEC standards
- Pulsed laser diode light source with laser class 1 safety
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial safety sensor systems and network configuration to ensure compliance with safety standards.
Applications
- Indoor safety monitoring in industrial automation
- Machine safeguarding and perimeter protection
- Factory automation requiring reliable safety sensors
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7.2 W
- Durable construction reduces waste and extends product lifecycle
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

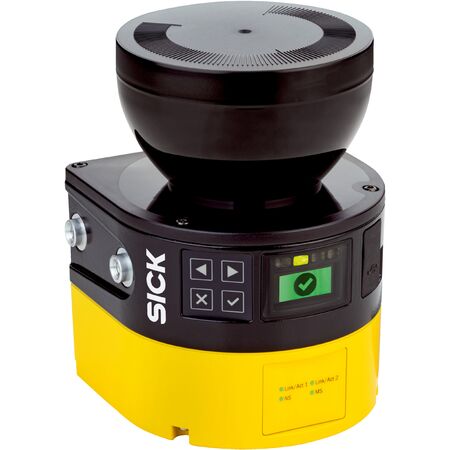

The SICK microScan3 Core EtherNet/IP Safety Sensor MICS3-ABAZ55IZ1P01 is available for immediate purchase, ideal for industrial indoor safety monitoring and machine safeguarding applications.
