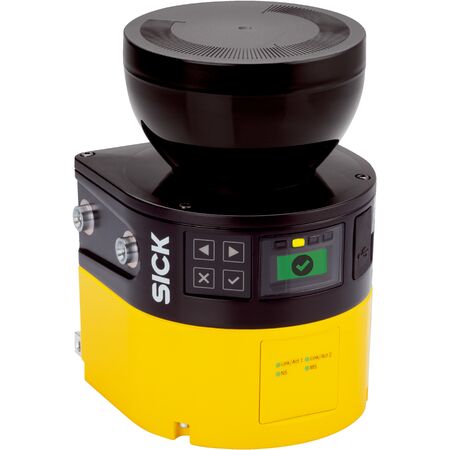

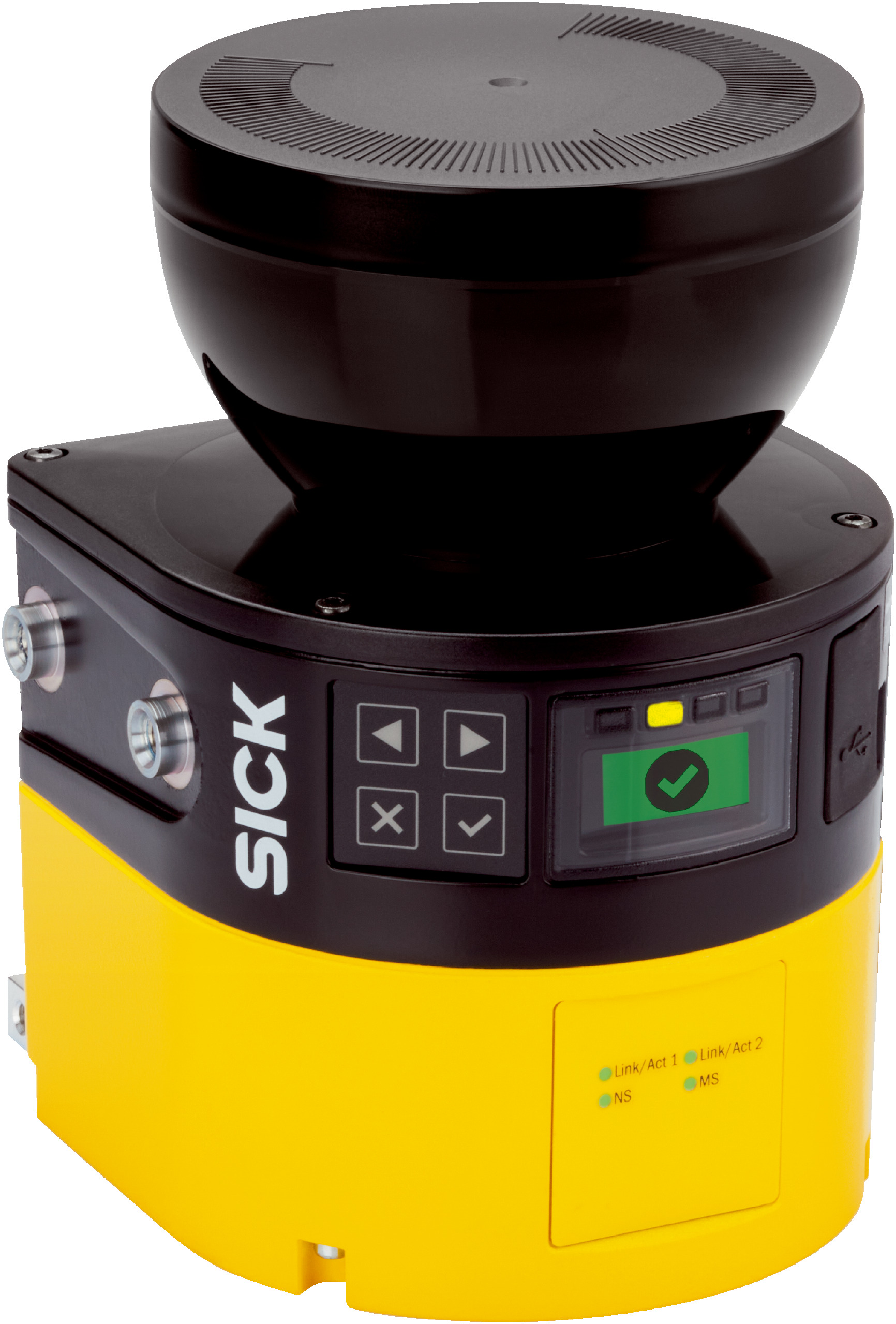

microScan3 Pro I/O Safety Sensor | 4m Protective Range | 275° Scanning Angle | SIL 2 Certified | by SICK
The microScan3 Pro I/O Safety Sensor is designed for indoor safety monitoring in industrial automation, featuring a protective field range of 4 m and a warning field range of 40 m. With the ability to monitor up to 8 fields simultaneously and a wide scanning angle of 275°, this Type 3 safety sensor ensures robust machine safeguarding and perimeter protection, making it ideal for robotics and automated guided vehicles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Protective field range: 4 m
- Warning field range: 40 m
- Number of simultaneously monitored fields: ≤ 8
- Number of fields: 128
- Number of monitoring cases: 128
- Scanning angle: 275°
- Configurable resolution: 30 mm to 200 mm
- Angular resolution: 0.39°
- Response time: 70 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 6 W typical
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Housing material: Aluminum
- Optics cover material: Polycarbonate with scratch-resistant coating
- Interfaces: Ethernet, USB 2.0, Mini-USB, M12 connectors
- Laser class: 1 (IEC 60825-1)
- Vibration and shock resistance compliant with IEC standards
- Dimensions (H x L x W): 163mm x 111mm x 112mm
- Weight: 1.6 kg
Key Features
- Protective field range of 4 m and warning field range of 40 m
- Simultaneous monitoring of up to 8 fields with 128 monitoring cases
- Wide scanning angle of 275° with configurable resolution options
- Type 3 safety sensor with SIL 2, Category 3, and PL d certifications
- Multiple safety functions including restart interlock and external device monitoring
- Ethernet data output and configuration via USB 2.0, Mini-USB, and Ethernet
- Robust IP65 rated aluminum housing with scratch-resistant polycarbonate optics cover
- Operating temperature range from -10 °C to +50 °C
- Graphic color display with LED indicators for status
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with safety sensor systems and industrial network integration.
Applications
- Indoor safety monitoring in industrial automation
- Machine safeguarding and perimeter protection
- Robotics and automated guided vehicles (AGVs)
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 6 W
- Durable construction reduces waste and extends product lifecycle
- Supports safe automation reducing risk of accidents and environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK MICS3-CCAZ40AN1P01 microScan3 Pro I/O Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
