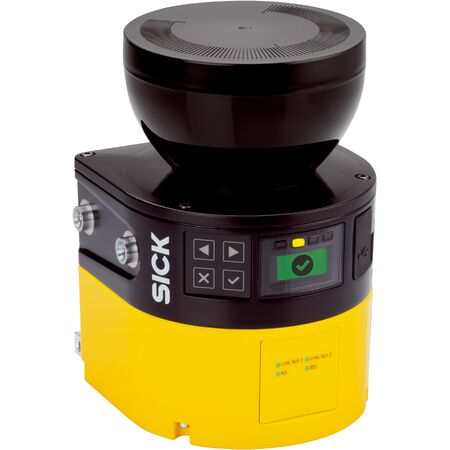

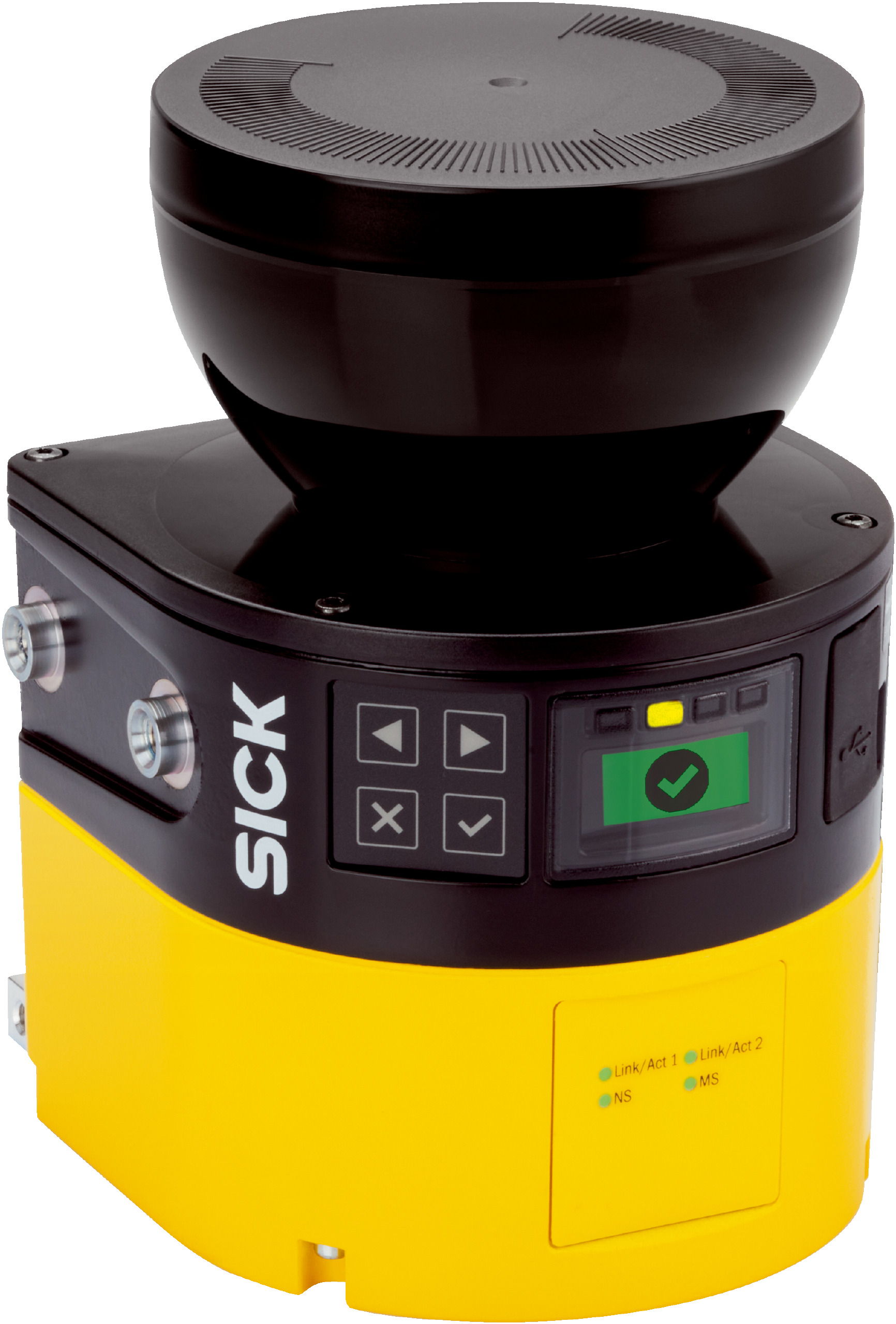

microScan3 Pro I/O Safety Sensor | 5.5m Protective Range | 275° Scanning Angle | SIL 2 Compliant | by SICK
The microScan3 Pro I/O Safety Sensor is designed for indoor safety monitoring in industrial automation, featuring a protective field range of 5.5 m and a warning field range of 40 m. With the ability to monitor up to 8 fields simultaneously and a 275° scanning angle, this sensor ensures optimal machine safeguarding and perimeter protection, making it ideal for robotics and automated guided vehicles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: microScan3 Pro I/O
- Protective field range: 5.5 m
- Warning field range: 40 m
- Number of simultaneously monitored fields: ≤ 8
- Number of fields: 128
- Number of monitoring cases: 128
- Scanning angle: 275°
- Configurable resolution: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm, 200 mm
- Angular resolution: 0.39°
- Response time: 70 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: At least one OSSD is OFF
- Connection types: M12 connectors (various pins and codings)
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 6 W typical
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance compliant with IEC standards
- Laser class: 1 (IEC 60825-1)
- Data interface: Ethernet 100Base-TX with auto-negotiation
- Dimensions (H x L x W): 163mm x 111mm x 112mm
- Weight: 1.6 kg
Key Features
- Protective field range of 5.5 m and warning field range of 40 m
- Simultaneous monitoring of up to 8 fields with 128 monitoring cases
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Type 3 safety sensor compliant with IEC 61496
- Safety integrity level SIL 2 and Performance level PL d
- Integrated restart interlock, external device monitoring, and multiple sampling
- Ethernet data output and configuration via USB 2.0, Mini-USB, and Ethernet
- Graphic color display with LEDs for status indication
- Robust aluminum housing with IP65 rating and scratch-resistant polycarbonate optics cover
- Operating temperature range from -10 °C to +50 °C
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial safety standards and SICK safety devices to ensure compliance and optimal performance.
Applications
- Indoor safety monitoring in industrial automation
- Machine safeguarding and perimeter protection
- Robotics and automated guided vehicles (AGVs)
- Factory automation requiring multi-field safety monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 6 W
- Durable construction reduces waste and replacement frequency
- Supports safer automation reducing risk of accidents and environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MICS3-CCAZ55AN1P01 microScan3 Pro I/O Safety Sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
