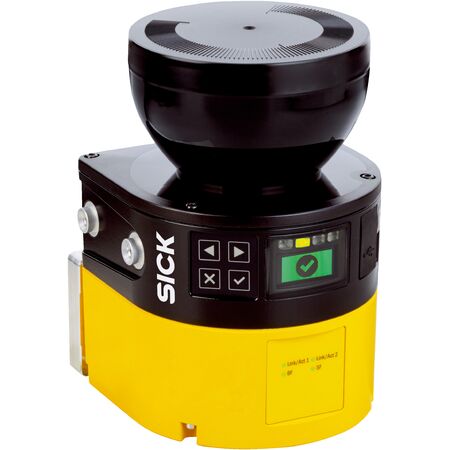

microScan3 Pro Safety Laser Scanner | 4m Protective Range | 40m Warning Range | 275° Scanning Angle | by SICK
The microScan3 Pro Safety Laser Scanner is designed for indoor safety monitoring in industrial automation, featuring a protective field range of 4 m and a warning field range of 40 m. With the ability to monitor up to 8 fields simultaneously and a scanning angle of 275°, this scanner ensures optimal machine safeguarding and perimeter protection, making it ideal for factory automation requiring PROFINET communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: microScan3 Pro - PROFINET
- Protective field range: 4 m
- Warning field range: 40 m
- Number of simultaneously monitored fields: ≤ 8
- Number of fields: 128
- Number of monitoring cases: 128
- Scanning angle: 275°
- Resolution (configurable): 30 mm, 40 mm, 50 mm, 70 mm, 150 mm, 200 mm
- Angular resolution: 0.39°
- Response time: 95 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: Safety outputs via network are logic 0
- Connection type: 1 x male M12 5-pin L-coded connector
- Fieldbus: PROFINET with PROFIsafe protocol
- Configuration: PC with Safety Designer software
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption typical: 8.4 W
- Housing material: Aluminum
- Optics cover material: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance: IEC 60068 series standards
- Laser type: Pulsed laser diode, wavelength 845 nm, Laser class 1
- Dimensions (H x L x W): 163mm x 111mm x 112mm
- Weight: 1.65 kg
Key Features
- Protective field range of 4 m and warning field range of 40 m
- Simultaneous monitoring of up to 8 fields with 128 monitoring cases
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Safety integrity level SIL 2 and Category 3 safety rating
- Safe contour detection and static protective field switching
- Integrated configuration memory with PC-based Safety Designer software
- Multiple interfaces including USB 2.0, Mini-USB, Ethernet, and PROFINET
- Graphic color display and LED indicators for diagnostics
- Robust IP65 rated aluminum housing with scratch-resistant polycarbonate optics cover
- Operating temperature range from -10 °C to +50 °C
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial safety standards and PROFINET networks to ensure compliance and optimal performance.
Applications
- Indoor safety monitoring in industrial automation
- Machine safeguarding and perimeter protection
- Factory automation requiring PROFINET communication
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3123 – Industrial Plugs and Socket-Outlets
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient operation with low power consumption of 8.4 W
- Durable construction reduces waste and replacement frequency
- Supports PROFIenergy for energy management in industrial networks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK microScan3 Pro PROFINET Safety Laser Scanner MICS3-CCAZ40LZ1P01 is available for immediate purchase. Ideal for indoor industrial safety and automation applications requiring advanced laser scanning and PROFINET communication.
