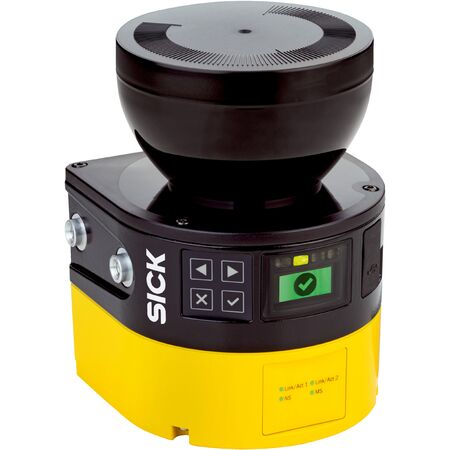

microScan3 Pro Safety Laser Scanner | 5.5m Protective Range | 275° Scanning Angle | SIL 2 Safety Level | by SICK
The microScan3 Pro Safety Laser Scanner is designed for indoor industrial safety monitoring, featuring a protective field range of 5.5 m and a warning field range of 40 m. With the ability to monitor up to 8 fields simultaneously and a 275° scanning angle, it ensures comprehensive safety for automated production lines and machine safeguarding. Built for durability with an IP65 rating, this scanner is perfect for factory automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: microScan3 Pro - EtherNet/IP
- Protective field range: 5.5 m
- Warning field range: 40 m
- Number of simultaneously monitored fields: ≤ 8
- Number of fields: 128
- Number of monitoring cases: 128
- Scanning angle: 275°
- Configurable resolution: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm, 200 mm
- Angular resolution: 0.39°
- Response time: 95 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: Safety outputs via network logic 0
- Connection type: 1 x male M12 4-pin A-coded for voltage supply, 2 x female M12 4-pin D-coded for EtherNet/IP
- Configuration method: PC with Safety Designer software
- Configuration interfaces: USB 2.0, Mini-USB, Ethernet
- Data interface: EtherNet/IP CIP Safety, CoLa 2
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption typical: 7.2 W
- Housing material: Aluminum
- Optics cover material: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance: IEC 60068 series standards
- Laser class: 1 (IEC 60825-1)
- Wavelength: 845 nm
- Dimensions (H x L x W): 151mm x 111mm x 112mm
- Weight: 1.45 kg
Key Features
- Protective field range of 5.5 m and warning field range of 40 m
- Simultaneous monitoring of up to 8 fields with 128 monitoring cases
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Safety integrity level SIL 2 and Category 3 safety classification
- Integrated configuration memory and multiple sampling functions
- EtherNet/IP™ industrial network with 8 safety outputs via network
- Graphic color display and LED indicators for status
- Robust aluminum housing with IP65 rating and scratch-resistant polycarbonate optics cover
- Operating temperature range from -10 °C to +50 °C
- Pulsed laser diode type 1 with 845 nm wavelength
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals trained in safety sensor systems and industrial network setup to ensure compliance with safety standards.
Applications
- Indoor industrial safety monitoring
- Machine safeguarding
- Automated production lines requiring safety laser scanning
- Factory automation requiring multiple monitored fields
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7.2 W
- Durable construction reduces waste and replacement frequency
- Supports safe automation reducing risk of accidents and environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK microScan3 Pro EtherNet/IP Safety Sensor MICS3-CBAZ55IZ1P01 is available for immediate purchase, ideal for indoor industrial safety and automation applications.
