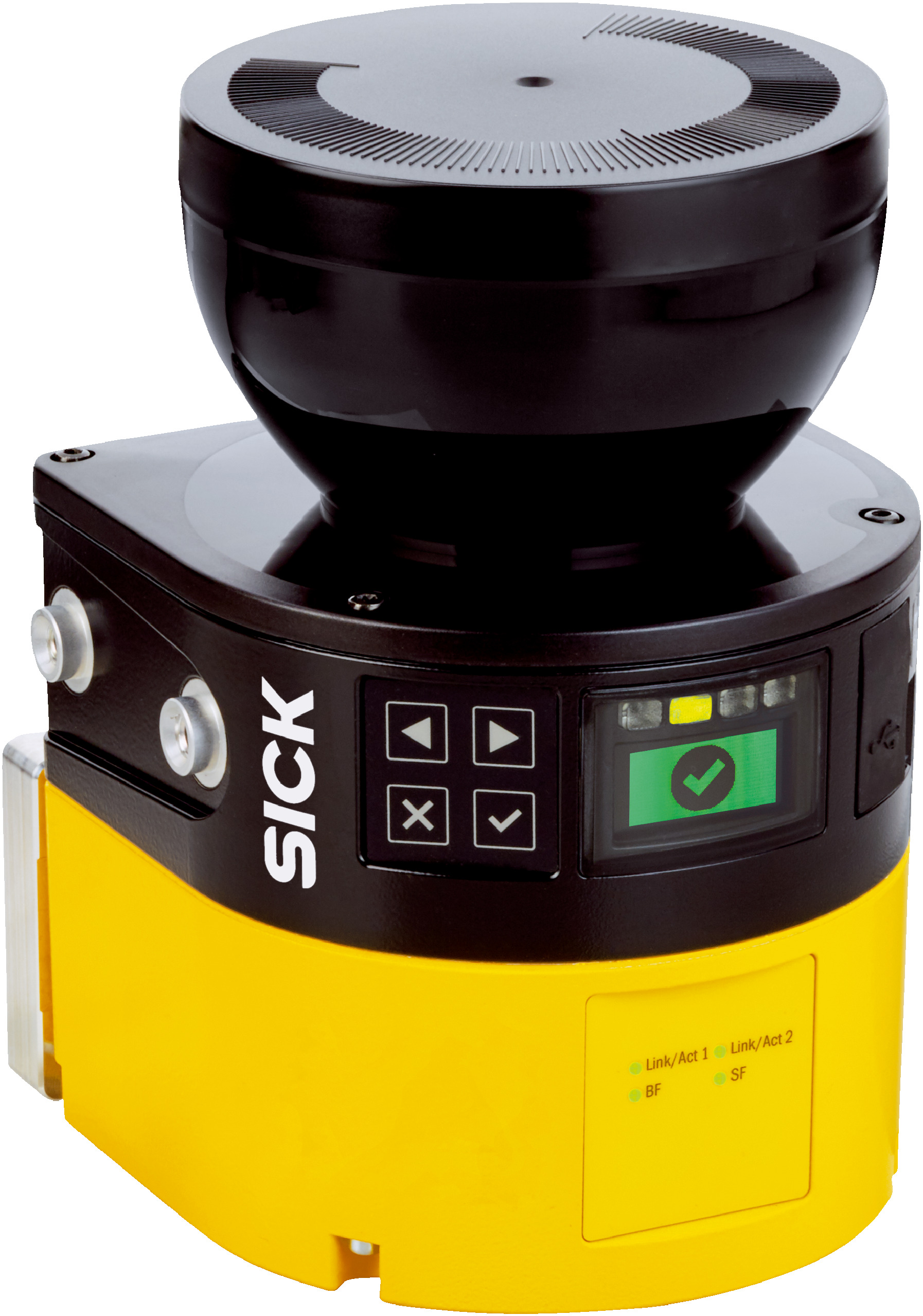

microScan3 Pro Safety Sensor | 5.5m Protective Range | 275° Scanning Angle | SIL 2 Compliant | by SICK
The microScan3 Pro Safety Sensor is designed for indoor industrial safety monitoring, featuring a protective field range of 5.5 m and a warning field range of 40 m. With the ability to monitor up to 8 fields simultaneously and a 275° scanning angle, this sensor ensures optimal machine safeguarding. Built for reliability, it complies with SIL 2 safety standards and is perfect for automated production lines requiring PROFINET communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: microScan3 Pro - PROFINET
- Protective field range: 5.5 m
- Warning field range: 40 m
- Number of simultaneously monitored fields: ≤ 8
- Number of fields: 128
- Number of monitoring cases: 128
- Scanning angle: 275°
- Configurable resolution: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm, 200 mm
- Angular resolution: 0.39°
- Response time: 95 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: Safety outputs via network are logic 0
- Connection type: 1 x male M12 5-pin L-coded, 2 x female RJ45 connectors
- Fieldbus: PROFINET with PROFIsafe protocol
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 7.2 W typical
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Housing material: Aluminum
- Optics cover: Polycarbonate with scratch-resistant coating
- Laser type: Pulsed laser diode, wavelength 845 nm, Laser class 1
- Dimensions (H x L x W): 163mm x 111mm x 112mm
- Weight: 1.65 kg
Key Features
- Protective field range of 5.5 m and warning field range of 40 m
- Simultaneous monitoring of up to 8 fields with 128 monitoring cases
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Safety outputs via PROFINET network with 8 safety outputs
- Type 3 safety sensor compliant with IEC 61496
- Safety Integrity Level SIL 2 and Performance Level PL d
- Integrated configuration memory and measured data output via Ethernet
- Robust aluminum housing with IP65 rating and scratch-resistant polycarbonate optics cover
- Operating temperature range from -10 °C to +50 °C
- Multiple communication interfaces including USB 2.0, Mini-USB, Ethernet
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with PROFINET networks and safety sensor integration to ensure compliance with safety standards.
Applications
- Indoor industrial safety monitoring
- Machine safeguarding
- Automated production lines requiring PROFINET communication
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7.2 W
- Durable construction reduces waste and replacement frequency
- Supports PROFIenergy for energy management in industrial networks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

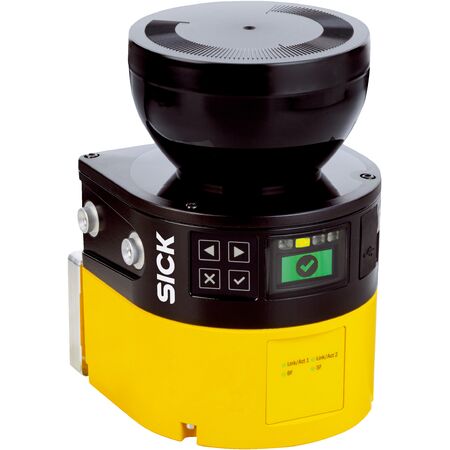

The SICK microScan3 Pro PROFINET Safety Sensor MICS3-CCAZ55PZ1P01 is available for immediate purchase, ideal for indoor industrial safety and machine safeguarding applications.
