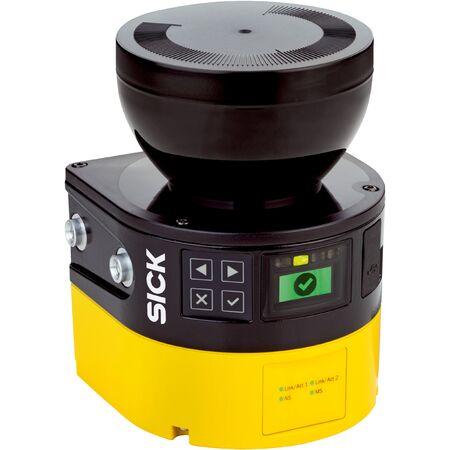

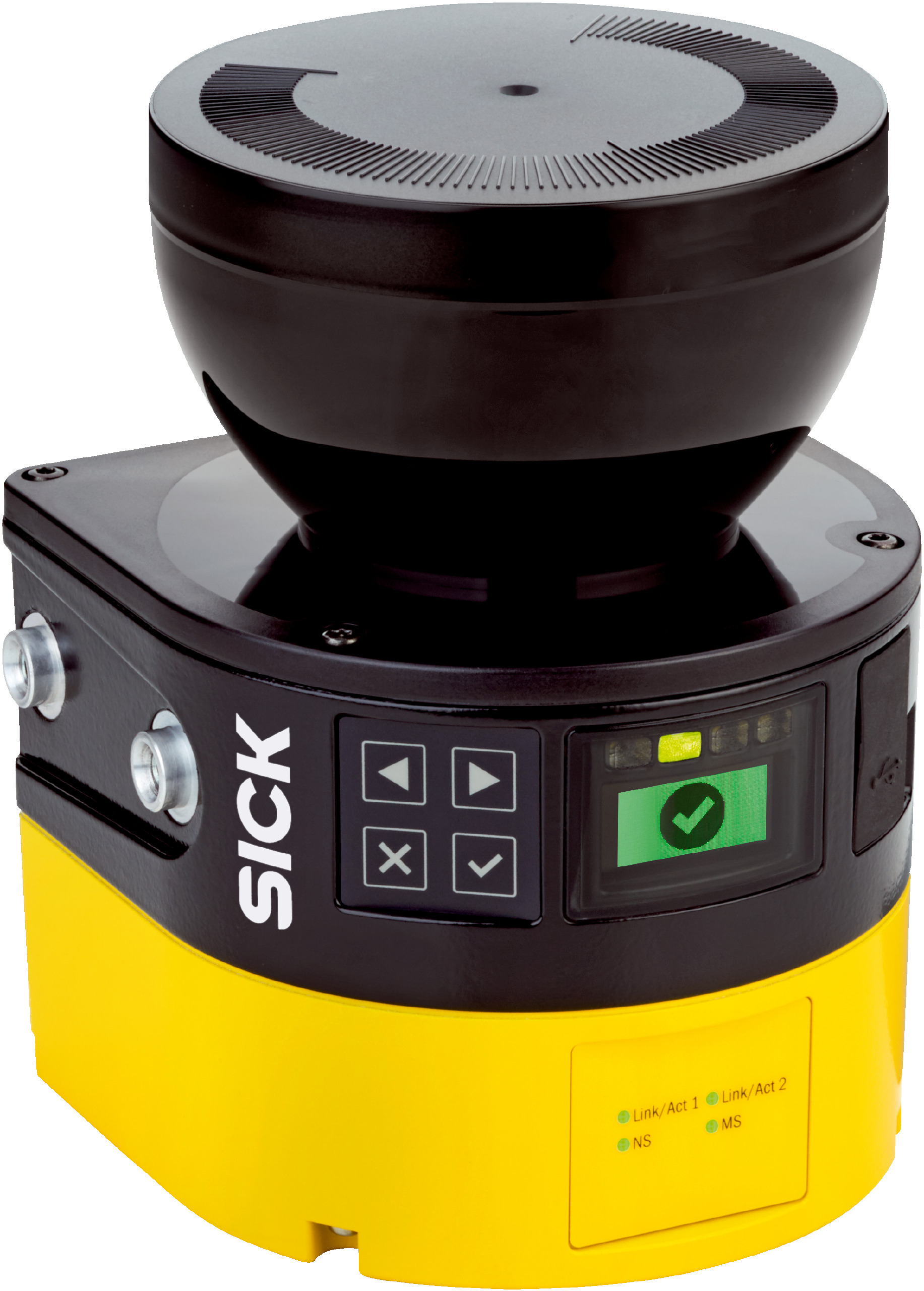

microScan3 Pro Safety Sensor | 9m Protective Range | 275° Scanning Angle | SIL 2 Compliance | by SICK
The microScan3 Pro Safety Sensor is designed for indoor industrial safety monitoring, featuring a protective field range of up to 9 meters and a 275° scanning angle. With the ability to monitor up to 4 fields simultaneously and SIL 2 safety compliance, this sensor is perfect for collision protection and safe contour detection in automated environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: microScan3 Pro - PROFINET
- Protective field range: 9 m
- Warning field range: 64 m
- Collision protection field range: 19 m on reference target
- Number of simultaneously monitored fields: ≤ 4
- Number of fields: 128
- Number of monitoring cases: 128
- Scanning angle: 275°
- Resolution configurable: 30 mm to 200 mm
- Angular resolution: 0.1°
- Response time: 115 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: Safety outputs via network are logic 0
- Connection type: 1 x male M12 4-pin A-coded for voltage supply, 2 x female M12 4-pin D-coded for PROFINET
- Outputs: 8 safety outputs via network
- Configuration method: PC with Safety Designer software
- Configuration interfaces: USB 2.0, Mini-USB, Ethernet
- Fieldbus protocol: PROFINET with PROFIsafe
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption typical: 7.2 W
- Housing material: Aluminum
- Optics cover material: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance: IEC 60068 series
- Laser type: Pulsed laser diode, wavelength 845 nm, Laser class 1
- Dimensions (H x L x W): 151mm x 111mm x 112mm
- Weight: 1.45 kg
Key Features
- Protective field range up to 9 m and warning field range up to 64 m
- Simultaneous monitoring of up to 4 fields with 128 monitoring cases
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Safety integrity level SIL 2 and Category 3 safety compliance
- Integrated configuration memory and measured data output via Ethernet
- Multiple interfaces including USB 2.0, Mini-USB, and Ethernet
- Graphic color display and LEDs for status indication
- Robust aluminum housing with polycarbonate optics cover and scratch-resistant coating
- IP65 rated enclosure for protection against dust and water
- Vibration and shock resistant according to IEC standards
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial safety systems and PROFINET networks to ensure compliance and optimal performance.
Applications
- Indoor industrial safety monitoring
- Collision protection and safe contour detection
- Machine and plant safety with PROFINET integration
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7.2 W
- Durable construction reduces waste and replacement frequency
- Supports PROFIenergy for energy management in industrial networks
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK MICS3-CBAZ90PZ1P01 microScan3 Pro PROFINET Safety Sensor is available for immediate purchase, ideal for enhancing safety in industrial indoor environments with advanced monitoring and network integration.
