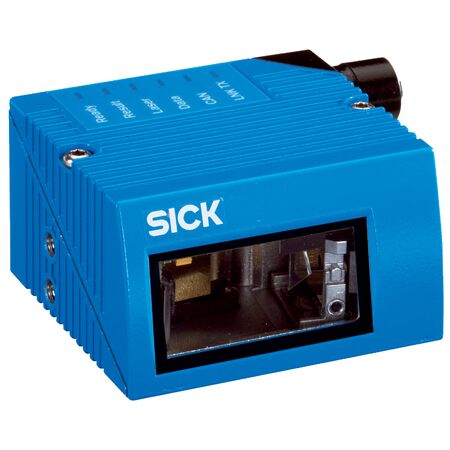

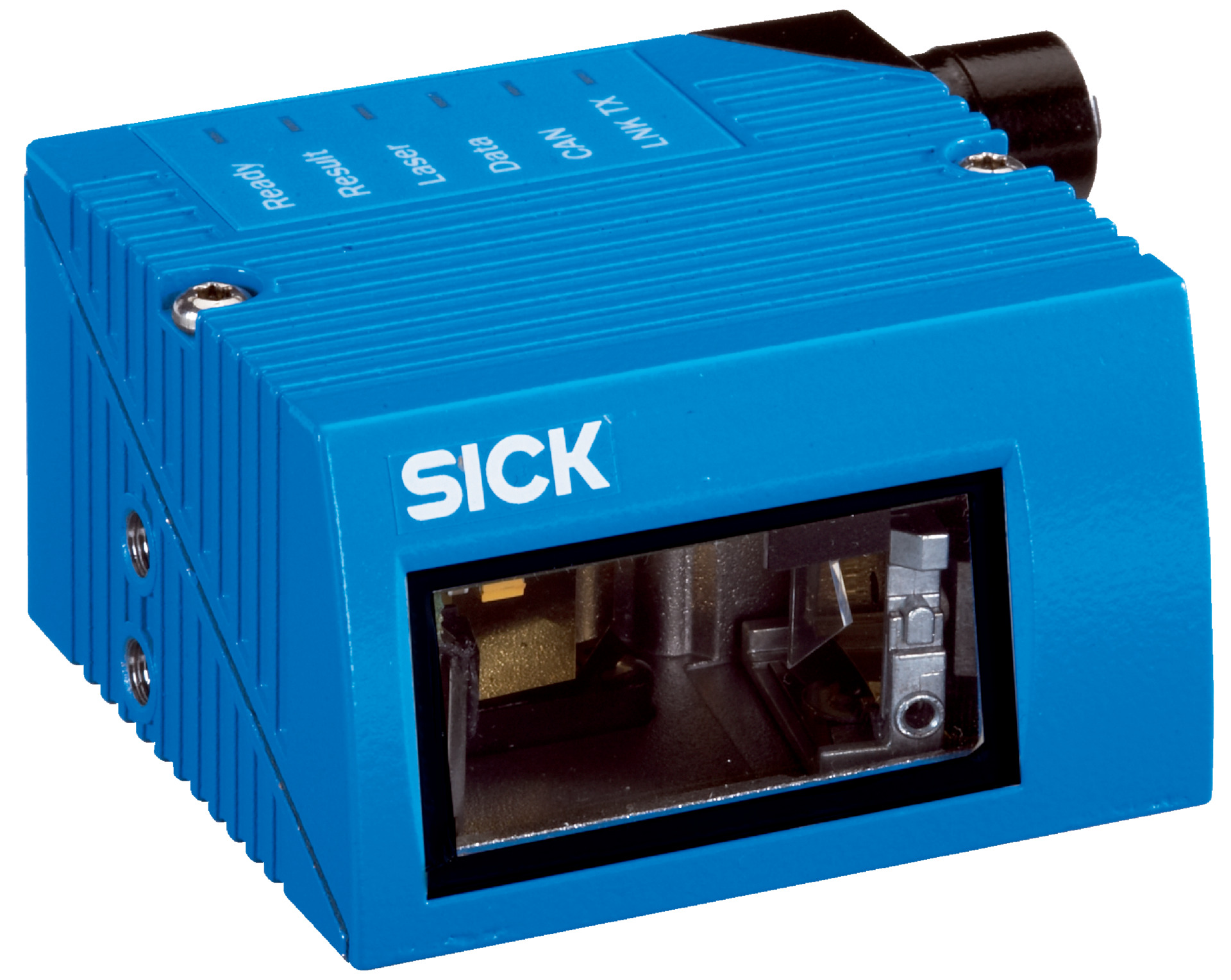

Mid Range Barcode Scanner CLV620-0120 | Ethernet Connectivity | IP65 Rated | by SICK
The Mid Range Barcode Scanner CLV620-0120 is designed for efficient industrial barcode reading, featuring Ethernet connectivity and an IP65 rated aluminum housing. With a high scanning frequency of 400 Hz to 1,200 Hz and the ability to read various 1D barcode types, it's perfect for logistics, manufacturing, and quality assurance applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mid Range Barcode Scanner CLV620-0120 | Ethernet Connectivity | IP65 Rated | by SICK
Brand: SICK
SKU: 1041547
Alternatively Known As: SICK CLV620, SICK Mid Range Barcode Scanner, Ethernet Line Scanner, Industrial Barcode Reader
Technical Specifications
- Version: Mid Range
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 365 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 1 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 205 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Bar code types: Code 39, Code 128, Code 93, Codabar, GS1-128, UPC, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20
- Number of codes per reading interval: 1 to 50
- Number of characters per reading interval: up to 1,500
- Interfaces: Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Indicators: 6 LEDs and beeper
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 38mm x 61mm x 66mm
- Weight: 0.205 kg
Key Features
- Mid Range line scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- Ethernet connectivity with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, and PROFIBUS DP
- High scanning frequency from 400 Hz to 1,200 Hz
- IP65 rated aluminum die cast housing for robust industrial use
- Laser class 2 with visible red light source at 655 nm
- Multiple digital inputs and outputs with LED and acoustic indicators
- Supports up to 50 codes per reading interval and 1,500 characters
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable aluminum housing reduces need for frequent replacements
- Energy-efficient operation with low power consumption of 4.5 W
- Supports digital communication reducing wiring and material waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV620-0120 Mid Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial barcode scanning applications in manufacturing and logistics.
