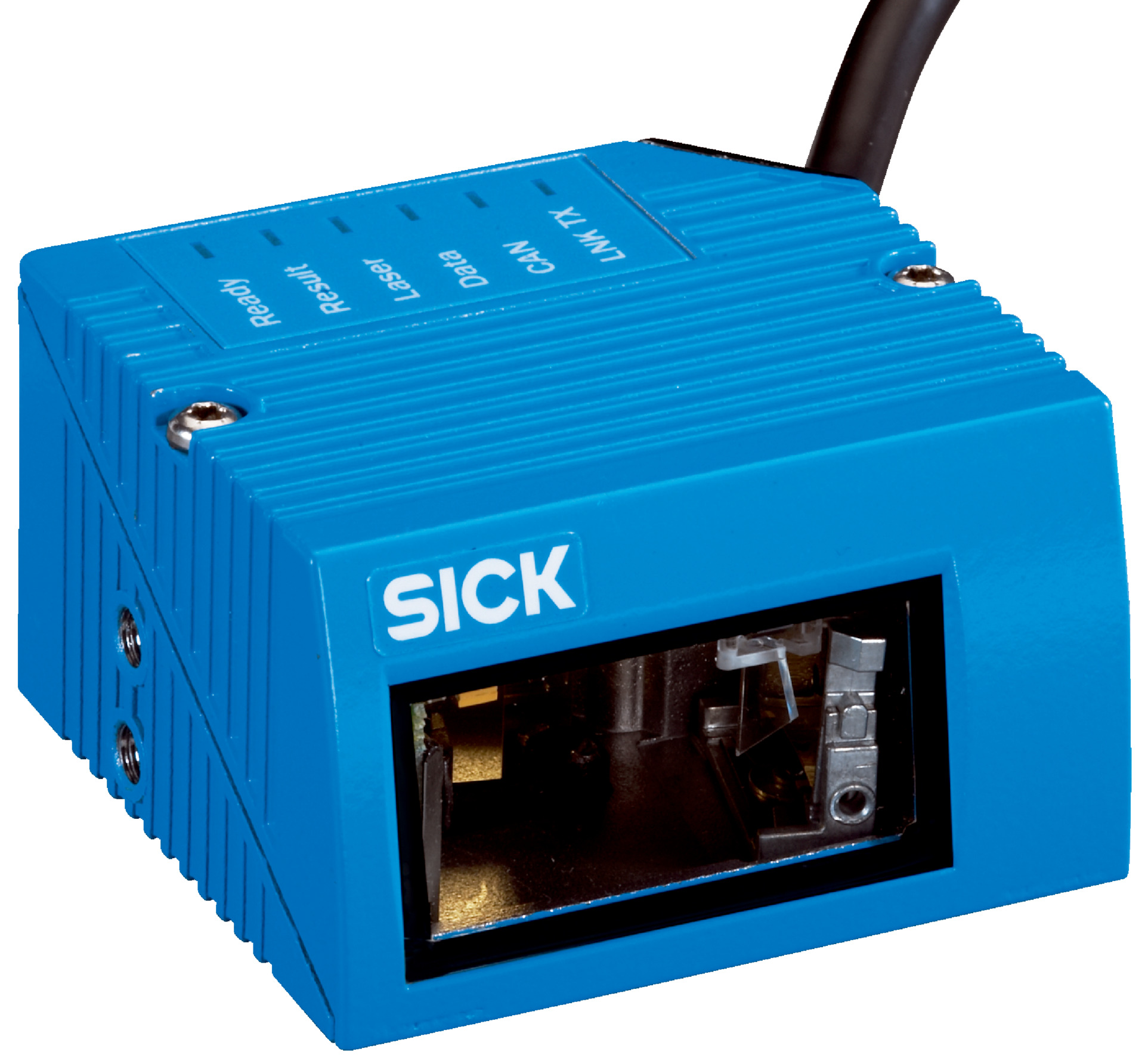

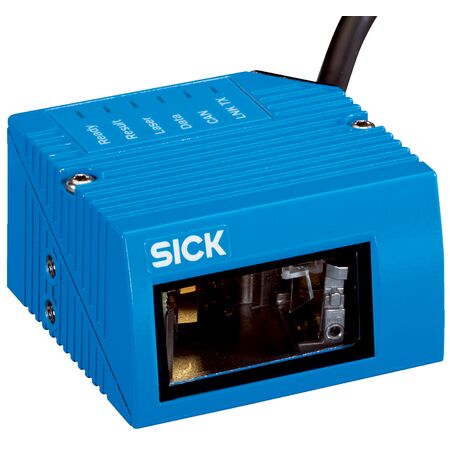

Mid Range Barcode Scanner SICK CLV620-1000 | IP65 Rated | 1D Code Reading | 400-1200 Hz Scanning | by SICK
The SICK CLV620-1000 Mid Range Barcode Scanner excels in industrial automation, reading 1D barcodes like Code 39 and Code 128 with a reading distance of 60 mm to 365 mm. With a robust aluminum housing and IP65 rating, it’s built for durability in demanding environments. Ideal for logistics, manufacturing, and quality assurance, this scanner supports multiple interfaces and features high scanning frequencies for efficient operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- Weight: 225 g including cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Reading field: Front
- Optical focus: Fixed
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 365 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 1 mm
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Number of codes per reading interval: 1 to 50
- Number of characters per reading interval: up to 1,500
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-3 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 38mm x 61mm x 66mm
- Weight: 0.225 kg
Key Features
- Mid range raster scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- Reading distance from 60 mm to 365 mm
- High scanning frequency between 400 Hz and 1,200 Hz
- Robust aluminum die cast housing with IP65 rating
- Multiple interface options including PROFINET, EtherCAT, CAN, and Serial
- Laser class 2 with visible red light source at 655 nm
- Supports up to 50 codes per reading interval and 1,500 characters
- Equipped with 6 LEDs and acoustic indicators for status feedback
- Operating temperature range 0 °C to +40 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 4.5 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and duration.
Available Now
The SICK CLV620-1000 Mid Range Raster Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
