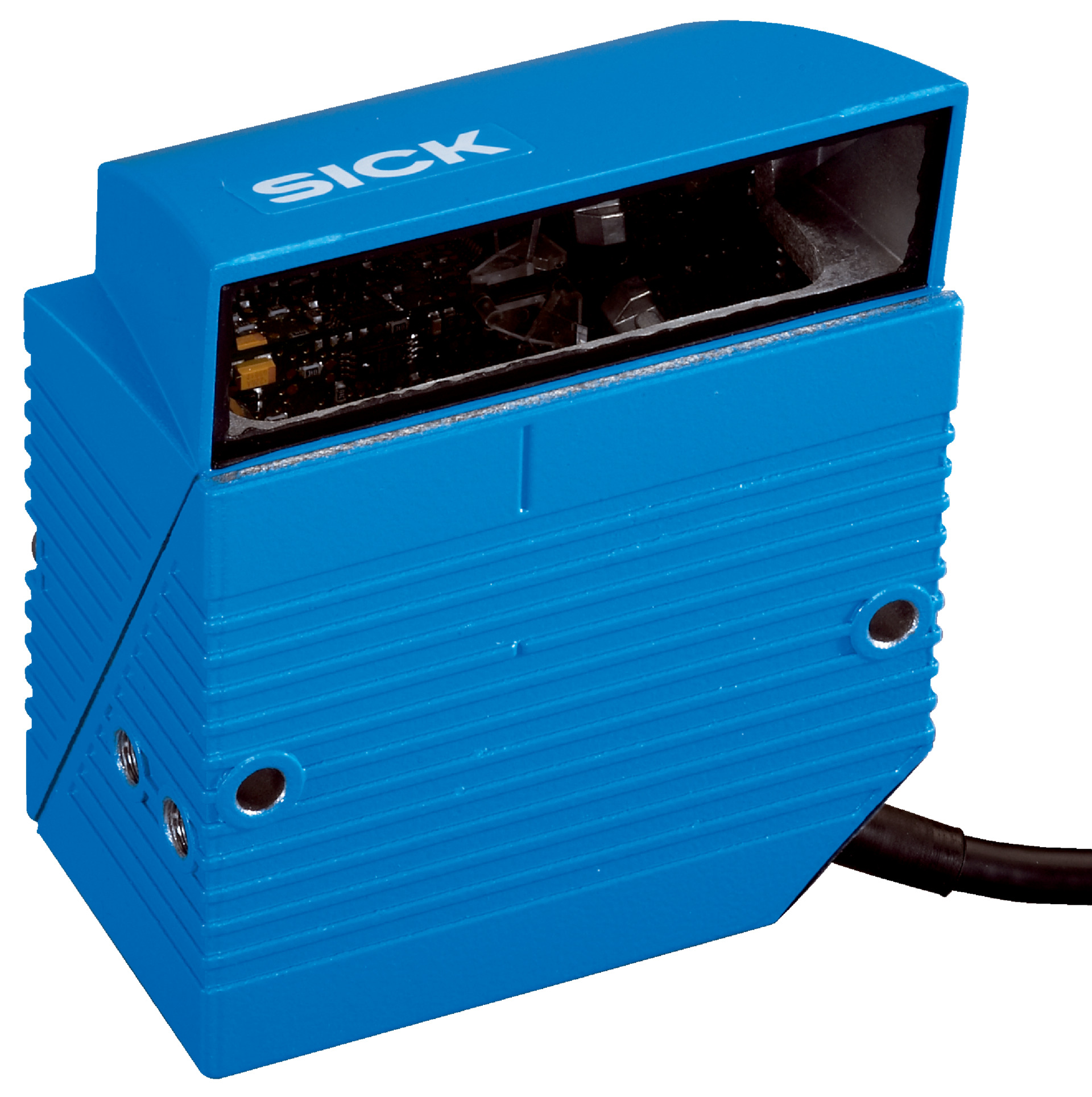

Mid Range Barcode Scanner SICK CLV620-3000 | IP65 Rated | 400-1200 Hz Scanning Frequency | by SICK
The SICK CLV620-3000 Mid Range Barcode Scanner excels in industrial automation, reading 1D barcodes like Code 39 and Code 128 with a high scanning frequency of 400 to 1200 Hz. Its robust aluminum die cast housing and IP65 rating ensure durability in demanding environments, making it perfect for logistics, manufacturing, and quality assurance applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mid Range Barcode Scanner SICK CLV620-3000 | IP65 Rated | 400-1200 Hz Scanning Frequency | by SICK
Brand: SICK
SKU: 1041552
Alternatively Known As: SICK CLV620, CLV620 Raster Scanner, Mid Range Barcode Scanner, Industrial Barcode Reader
Technical Specifications
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- Reading distance: 45 mm to 345 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 1 mm
- Laser class: 2, compliant with IEC 60825-1:2014+A11:2021
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and more
- Interfaces: PROFINET, EtherCAT, CAN, CANopen, PROFIBUS DP, Serial (RS-232, RS-422, RS-485)
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Dimensions (H x L x W): 38mm x 80mm x 66mm
- Weight: 0.25 kg
Key Features
- Mid range raster scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- Reading field side angle of 105° with aperture angle ≤ 50°
- High scanning frequency from 400 Hz to 1,200 Hz
- Multiple interface options including PROFINET, EtherCAT, CAN, and Serial
- Robust aluminum die cast housing with IP65 rating
- Laser class 2 with visible red light source at 655 nm
- Supports up to 50 codes per reading interval and 1,500 characters
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and tracking
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements
- Low power consumption at 4.5 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK CLV620-3000 Mid Range Raster Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
