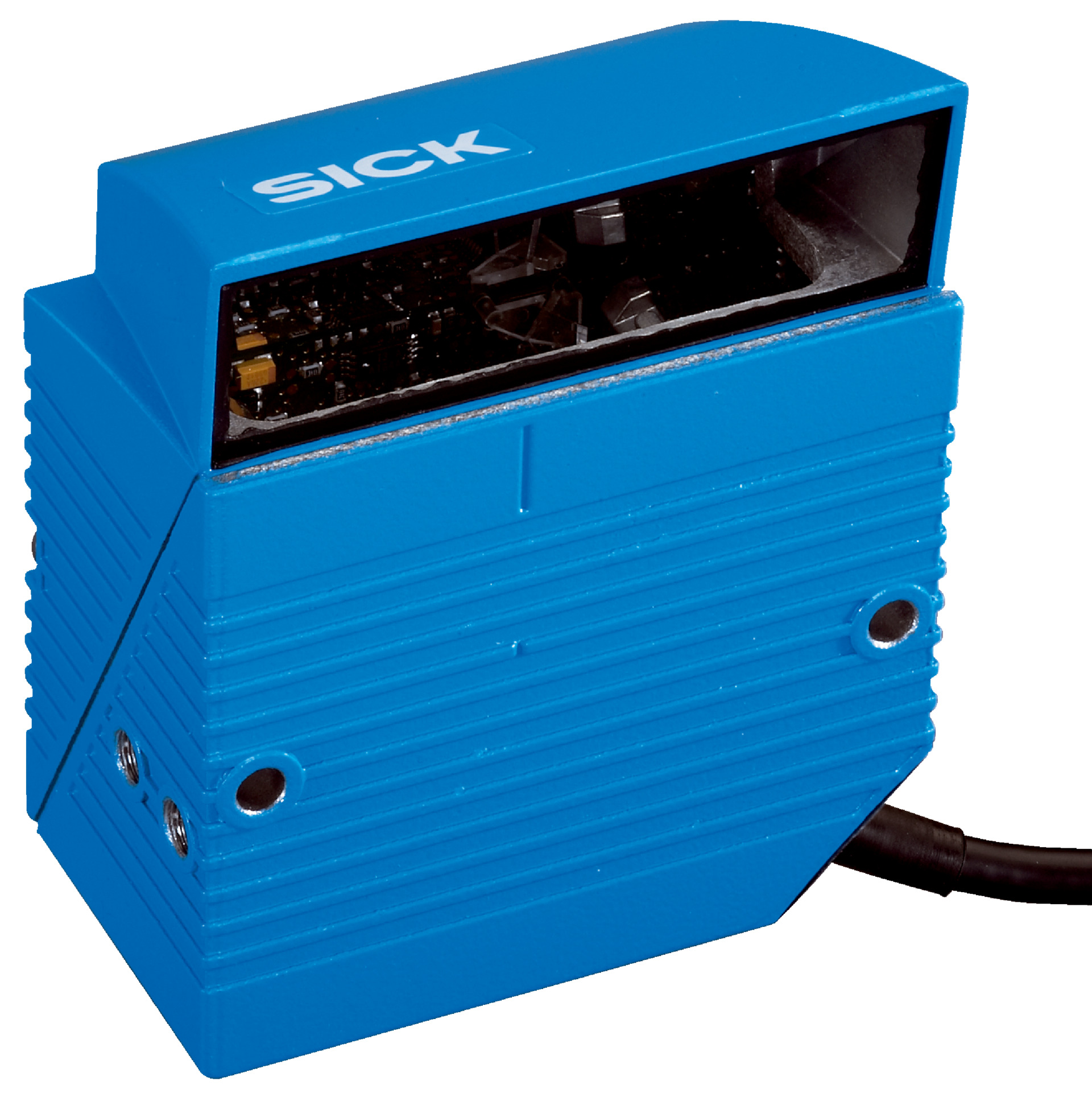

Mid Range Barcode Scanner SICK CLV620-3300 | IP65 Rated | 400 Hz to 1,200 Hz Scanning Frequency | by SICK
The SICK CLV620-3300 Mid Range Barcode Scanner excels in industrial automation, featuring a robust aluminum die cast housing and an IP65 rating for durability. With a high scanning frequency of 400 Hz to 1,200 Hz and the ability to read various 1D barcodes, it's perfect for logistics, warehouse management, and manufacturing process control. Designed for efficiency, this scanner supports multiple interfaces and ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mid Range Barcode Scanner SICK CLV620-3300 | IP65 Rated | 400 Hz to 1,200 Hz Scanning Frequency | by SICK
Brand: SICK
SKU: 1047825
Alternatively Known As: SICK CLV620 Raster Scanner, SICK Mid Range Barcode Scanner, SICK CLV620-3300 Barcode Reader
Technical Specifications
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (2 m)
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- Reading distance: 45 mm to 345 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 1 mm
- Laser class: 2, compliant with IEC 60825-1:2014
- Ambient operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Electromagnetic compatibility: EN 61000-6-3 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 38mm x 80mm x 66mm
- Weight: 0.25 kg
Key Features
- Mid range raster scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- Reading field side angle of 105° with aperture angle ≤ 50°
- High scanning frequency from 400 Hz to 1,200 Hz
- Multiple interface options including PROFINET, EtherCAT, CAN, and Serial
- Robust aluminum die cast housing with IP65 rating
- Laser class 2 with visible red light source at 655 nm
- Supports up to 50 codes per reading interval and 1,500 characters
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption at 4.5 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK CLV620-3300 Mid Range Raster Scanner is available for immediate purchase, ideal for industrial barcode scanning applications.
