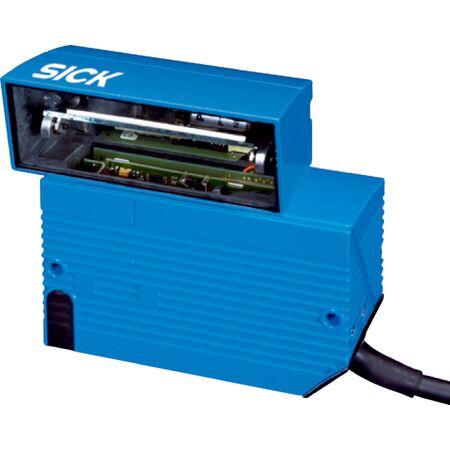

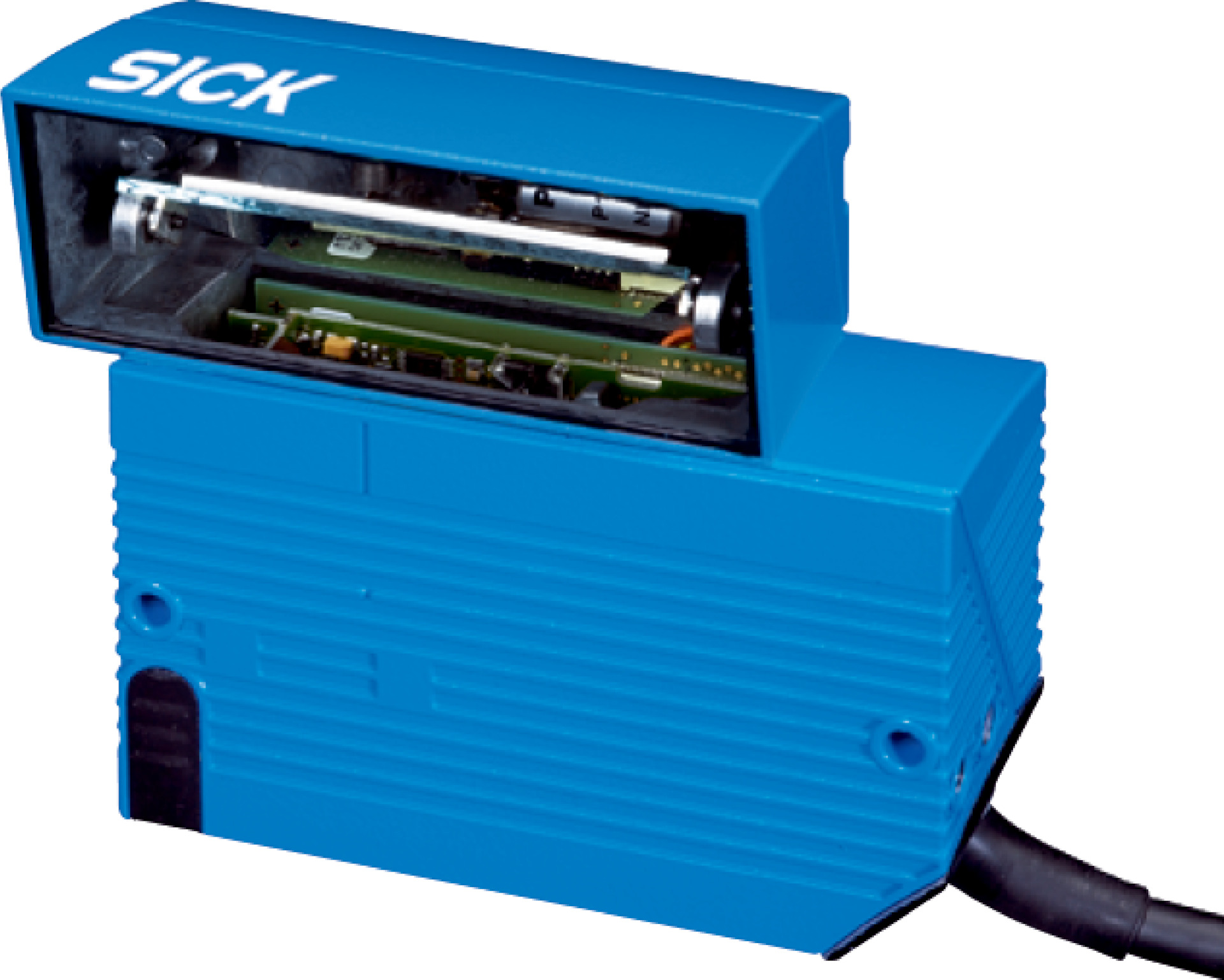

Mid Range Barcode Scanner SICK CLV631-6000 | IP65 Rated | Oscillating Mirror | by SICK
The SICK CLV631-6000 Mid Range Barcode Scanner is designed for efficient industrial barcode scanning, featuring an oscillating mirror reading field and a fixed optical focus with a visible red laser light spot. With a reading distance of 78 mm to 397 mm and support for all current 1D barcode types, it's perfect for automated production lines, logistics, and quality control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mid Range Barcode Scanner SICK CLV631-6000 | IP65 Rated | Oscillating Mirror | by SICK
Brand: SICK
SKU: 1041986
Alternatively Known As: SICK CLV631, CLV631 Line Scanner, Mid Range Barcode Scanner, Industrial Barcode Reader
Technical Specifications
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 6 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Reading field: Oscillating mirror
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: 2 (IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 78 mm to 397 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.25 mm to 0.5 mm
- Oscillating mirror functions: Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot
- Oscillation frequency: 0.5 Hz to 6.25 Hz
- Angle of deflection: –20° to 20°
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000 (500 for multiplexer function in CAN operation)
- Number of multiple readings: 1 to 99
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 41mm x 95mm x 107mm
- Weight: 0.42 kg
Key Features
- Mid range line scanner with oscillating mirror reading field
- Fixed optical focus with visible red laser light spot (655 nm)
- Laser class 2 compliant with IEC 60825-1 standards
- Reading distance from 78 mm to 397 mm
- Scanning frequency between 400 Hz and 1200 Hz
- Supports all current 1D barcode types including Code 39, Code 128, GS1 DataBar, and more
- Multiple interface options including PROFINET, EtherCAT, Serial, CAN, CANopen, and PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- Equipped with 6 LEDs and acoustic indicators for status and results
- Configuration via SOPAS ET software and optional MicroSD memory card
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and communication standards to ensure proper setup and compliance.
Applications
- Industrial barcode scanning and reading
- Automated production lines
- Logistics and warehouse management
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation reduces power consumption in industrial environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV631-6000 Mid Range Line Scanner is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
