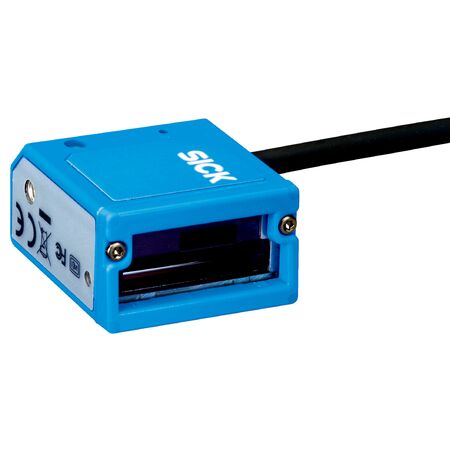

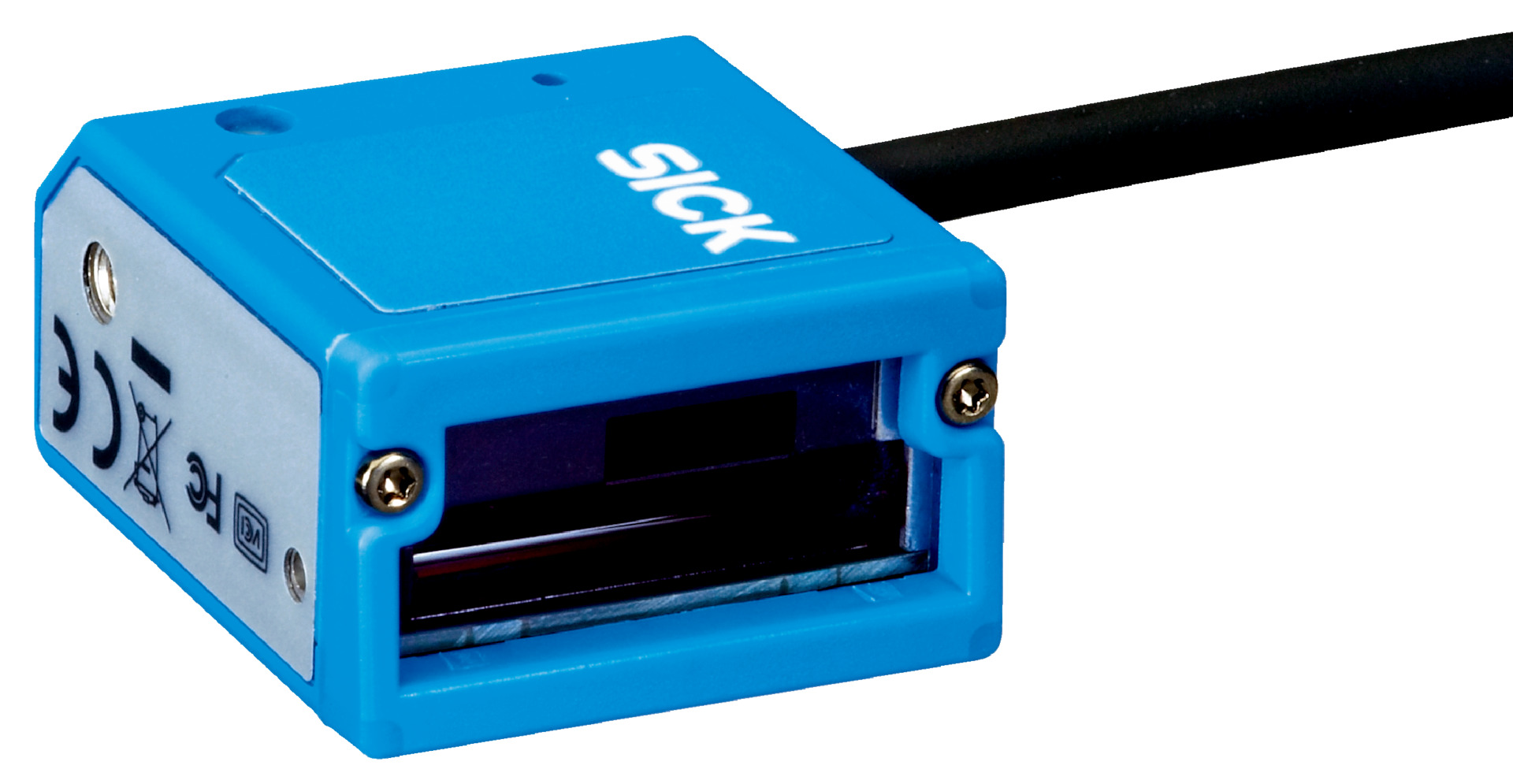

Mid Range Barcode Scanner | USB Connection | IP54 Rated | by SICK
The Mid Range Barcode Scanner CLV505-1110 is designed for efficient barcode reading in industrial automation and logistics. With a USB connection and a reading distance of 60 mm to 330 mm, it supports various 1D barcode types including UPC and EAN. Its IP54 rated enclosure ensures durability against dust and splashes, making it perfect for retail and inventory control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mid Range Barcode Scanner | USB Connection | IP54 Rated | by SICK
Brand: SICK
SKU: 1046320
Alternatively Known As: SICK CLV505 Barcode Scanner, USB Line Scanner, Mid Range Barcode Reader, Industrial Barcode Scanner
Technical Specifications
- Version: Mid Range
- Connection type: USB-A male connector, 1.5 m cable
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 650 nm
- Laser class: 2 (complies with EN 60825-1:2014+A11:2021, IEC 60825-1:2014)
- Aperture angle: ≤ 40°
- Reading distance: 60 mm to 330 mm
- Scanning frequency: ≤ 1,000 Hz
- Code resolution: 0.15 mm to 1 mm
- Supply voltage: 5 V DC ± 10%
- Power consumption: Typical 205 to 500 mA
- Housing color: Light blue (RAL 5012)
- Window material: Plastic
- Enclosure rating: IP54
- Protection class: III
- Weight: Approximately 30 g without cable
- MTBF: 10,000 hours
- Readable code structures: 1D codes including Code 11, Code 39, Code 128, Code 93, Codabar, JAN, UPC/GTIN/EAN, Interleaved 2 of 5, Matrix 2 of 5, GS1 DataBar variants, IATA, ISBN-ISMN-ISSN, Korea Post, MSI/Plessey, UK/Plessey, S-Code, Telepen, Code 39 Trioptic
- Code printing process: Label (printed codes)
- Indicators: 1 LED optical, beeper acoustic
- Ambient operating temperature: 0 °C to +45 °C
- Permissible relative humidity: Up to 90%, non-condensing
- Ambient light immunity: 2,000 lx
- Bar code print contrast (PCS): ≥ 45%
- Dimensions (H x L x W): 17mm x 29mm x 34.5mm
- Weight: 0.1 kg
Key Features
- Mid Range line scanner with fixed optical focus
- USB connection type with 1.5 m USB-A male connector
- Reads 1D barcode types including Code 39, Code 128, UPC, EAN, GS1 DataBar and more
- Laser class 2 with visible red light spot at 650 nm wavelength
- Scanning frequency up to 1,000 Hz
- Reading distance from 60 mm to 330 mm
- IP54 rated enclosure for dust and splash protection
- Light blue housing with plastic window
- Equipped with LED optical indicator and acoustic beeper
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper USB connection and compliance with laser safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Retail and inventory control
- Manufacturing process monitoring
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with typical 205 to 500 mA current draw
- Durable IP54 housing reduces need for frequent replacements
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV505-1110 Mid Range USB Line Scanner is available for immediate purchase, ideal for industrial and commercial barcode scanning applications.
