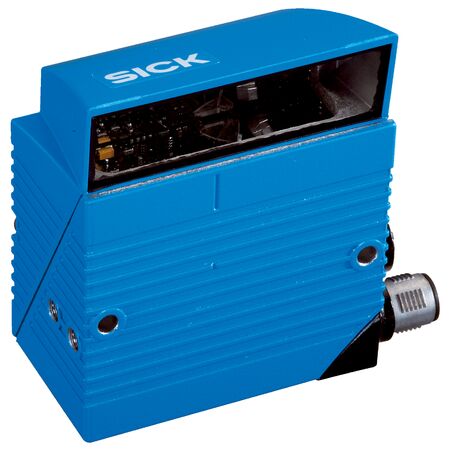

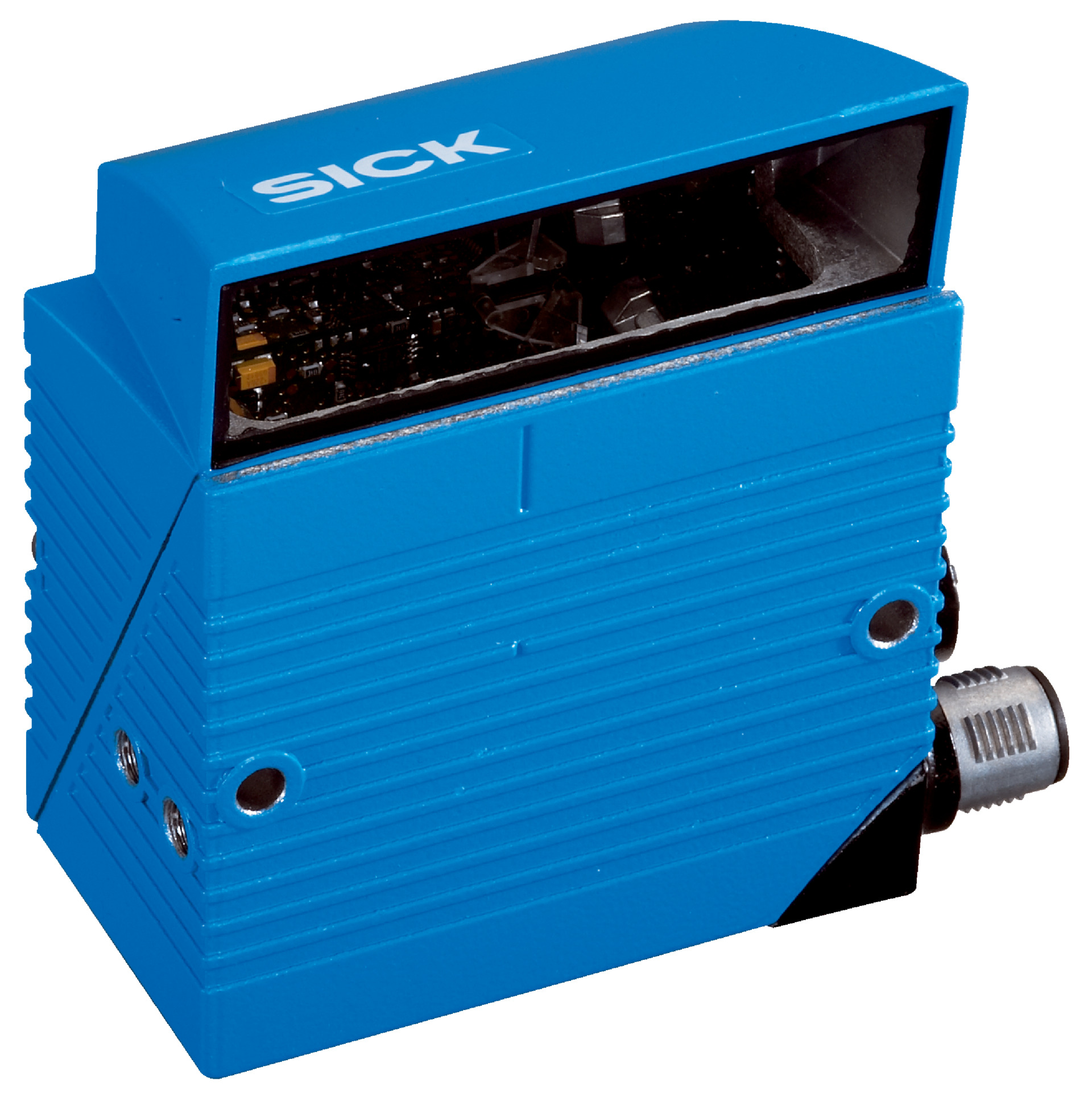

Mid Range Ethernet Barcode Scanner | Fixed Focus | 105° Reading Field | IP65 Rated | by SICK
The Mid Range Ethernet Barcode Scanner CLV620-2120 is designed for efficient industrial barcode scanning, featuring a fixed optical focus and a 105° reading field. With robust Ethernet connectivity and multiple interface options, it's perfect for automated production lines and logistics management. Built to last with an IP65 rating, this scanner ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mid Range Ethernet Barcode Scanner | Fixed Focus | 105° Reading Field | IP65 Rated | by SICK
Brand: SICK
SKU: 1041551
Alternatively Known As: SICK CLV620 Barcode Scanner, SICK Mid Range Line Scanner, Ethernet Barcode Reader, Industrial Barcode Scanner
Technical Specifications
- Version: Mid Range
- Connection type: Ethernet, 2 x M12 cylindrical connectors (12-pin male, 4-pin female)
- Reading field: Side (105°)
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser spot, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 365 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 1 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- Weight: 230 g (without cable)
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
- Number of codes per scan: 1 to 20 (standard decoder), 1 to 6 (SMART620)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: up to 1,500
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Electromagnetic compatibility: EN 61000-6-3 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 38mm x 80mm x 66mm
- Weight: 0.23 kg
Key Features
- Mid Range line scanner with fixed optical focus
- Ethernet connectivity with multiple interface options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP, and Serial
- Reading field side angle of 105° with aperture angle ≤ 50°
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, UPC, and more
- High scanning frequency from 400 Hz to 1,200 Hz
- Robust aluminum die cast housing with IP65 rating
- Laser class 2 with visible red light spot at 655 nm
- Supports multiple codes per scan and high code resolution from 0.2 mm to 1 mm
- Equipped with 6 LEDs and acoustic indicators for status feedback
- Configuration via SOPAS ET software
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical wiring standards to ensure compliance and optimal performance.
Applications
- Industrial barcode scanning and reading
- Automated production lines
- Logistics and warehouse management
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Energy-efficient operation with low power consumption of 4.5 W
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK CLV620-2120 Mid Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
