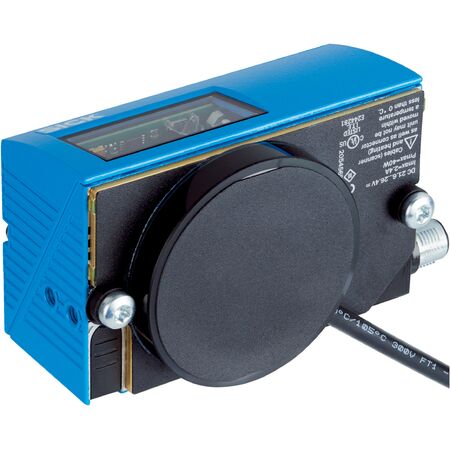

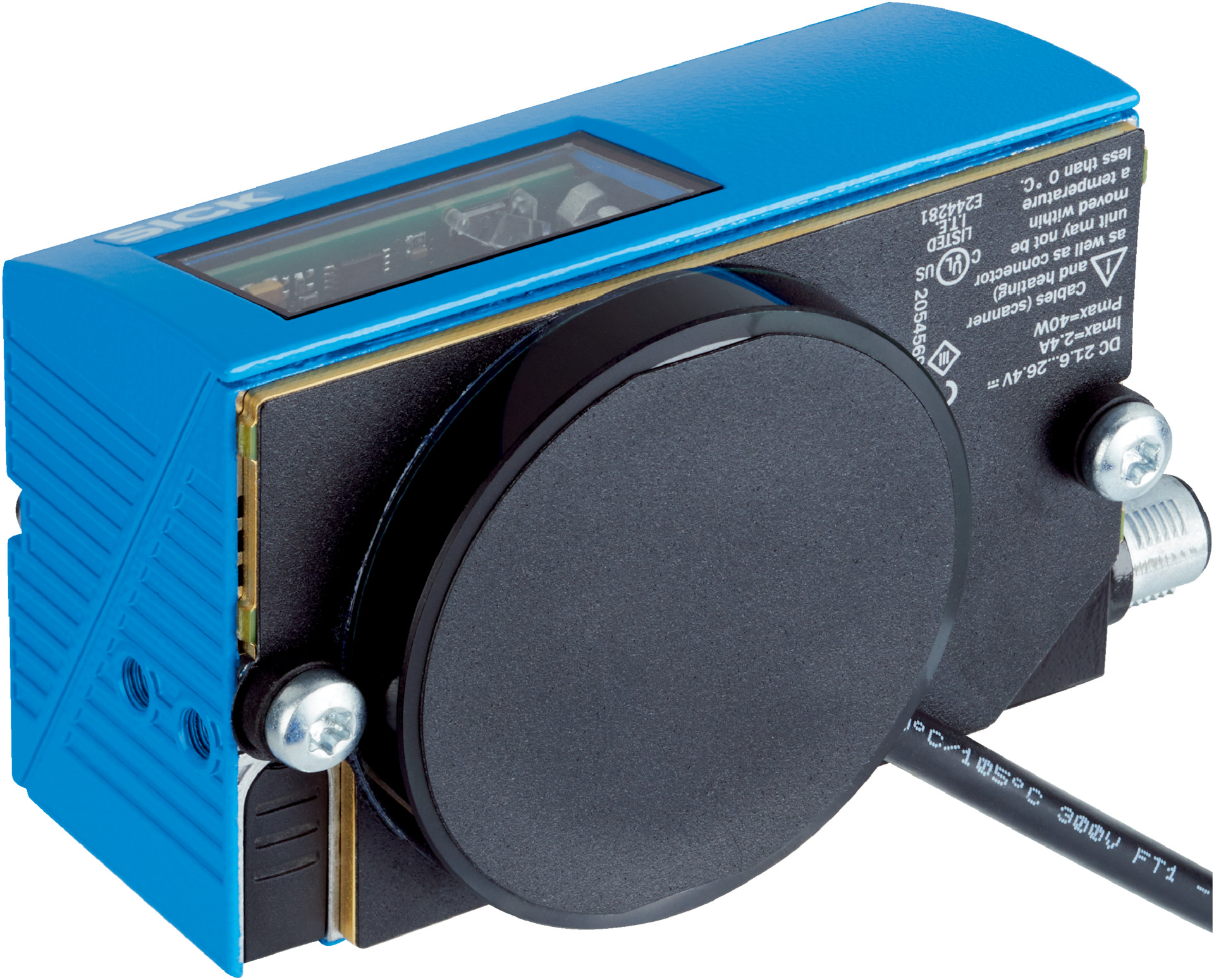

Mid Range Ethernet Barcode Scanner | Fixed Optical Focus | IP65 Rated | by SICK
The Mid Range Ethernet Barcode Scanner CLV631-0120F0 is designed for efficient industrial automation, featuring a fixed optical focus and the ability to read various 1D barcodes including Code 39 and UPC. With a high scanning frequency of 400 Hz to 1200 Hz and an IP65 rated aluminum housing, it's perfect for cold storage and logistics applications, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mid Range Ethernet Barcode Scanner | Fixed Optical Focus | IP65 Rated | by SICK
Brand: SICK
SKU: 1051861
Alternatively Known As: SICK CLV631 Barcode Scanner, SICK Mid Range Line Scanner, Ethernet Barcode Reader, Industrial Barcode Scanner
Technical Specifications
- Version: Mid Range
- Connection type: Ethernet, 2 x M12 cylindrical connectors, 1 x open-ended cable
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm, circular spot
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 90 mm to 450 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.25 mm to 0.5 mm
- Heating: Included for cold storage
- Supply voltage: ≤ 24 V DC, ±10%
- Power consumption: 40 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Weight: 450 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, Pharmacode, MSI/Plessey
- Number of codes per scan: 1 to 20 (standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 auto-discriminating
- Number of characters per reading interval: 5,000 (500 for multiplexer function)
- Interfaces: Ethernet TCP/IP, PROFINET, EtherNet/IP™, EtherCAT®, Serial RS-232/422/485, CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Indicators: 6 LEDs and beeper
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 50mm x 61mm x 96mm
- Weight: 0.45 kg
Key Features
- Mid Range line scanner with fixed optical focus
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, UPC, and more
- Laser class 2 with visible red light spot at 655 nm
- High scanning frequency from 400 Hz to 1200 Hz
- Heating for cold storage applications
- IP65 rated aluminum die cast housing with glass window
- Multiple digital inputs and outputs with LED and acoustic indicators
- Configuration via SOPAS ET software and optional MicroSD memory card
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration with industrial networks and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Cold storage barcode scanning
- Logistics and warehouse management
- Manufacturing process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP65 housing reduces need for frequent replacements
- Energy-efficient operation with low power consumption (40 W)
- Supports cold storage applications reducing product waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV631-0120F0 Mid Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
