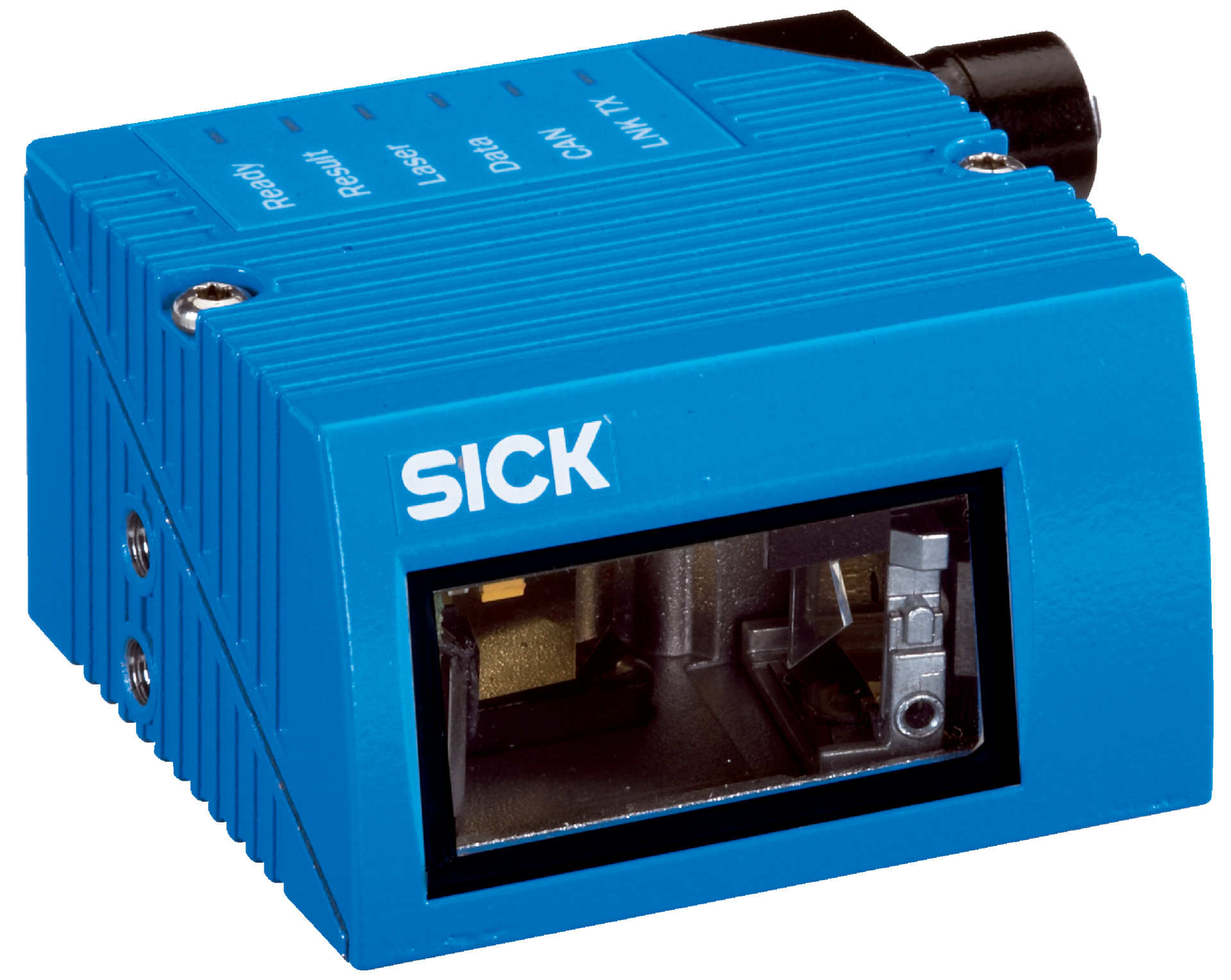

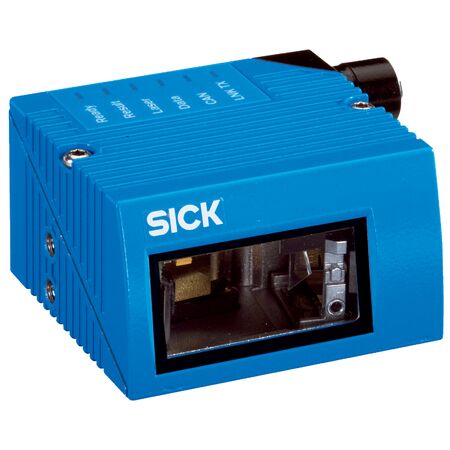

Mid Range Ethernet Barcode Scanner | Fixed Optical Focus | IP65 Rated | by SICK
The Mid Range Ethernet Barcode Scanner CLV620-0830 is designed for efficient industrial automation, featuring a fixed optical focus and robust IP65-rated aluminum housing. With the ability to read 1D barcodes at high resolution from 0.2 mm to 1 mm, it’s perfect for logistics, manufacturing, and quality assurance applications. Its versatile Ethernet connection supports multiple fieldbus options, ensuring seamless integration into your existing systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mid Range Ethernet Barcode Scanner | Fixed Optical Focus | IP65 Rated | by SICK
Brand: SICK
SKU: 1050940
Alternatively Known As: SICK CLV620 Barcode Scanner, SICK Mid Range Line Scanner, Ethernet Barcode Reader, Industrial Barcode Scanner
Technical Specifications
- Version: Mid Range
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser spot, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 365 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 1 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- Weight: 205 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, EAN, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Number of codes per reading interval: 1 to 50
- Number of characters per reading interval: up to 1,500
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232/422/485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-3 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 38mm x 61mm x 66mm
- Weight: 0.205 kg
Key Features
- Mid Range line scanner with fixed optical focus
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads 1D barcodes with high resolution from 0.2 mm to 1 mm
- Laser class 2 with visible red light spot at 655 nm wavelength
- High scanning frequency from 400 Hz to 1,200 Hz
- Robust aluminum die cast housing with IP65 rating
- Multiple digital inputs and outputs for flexible integration
- 6 LED optical indicators and acoustic beeper for status feedback
- Supports up to 50 codes per reading interval and up to 1,500 characters
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and network systems to ensure compliance with safety and operational standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient operation with low power consumption of 4.5 W
- Durable aluminum housing extends product life reducing waste
- Complies with RoHS and other environmental standards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK CLV620-0830 Mid Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
