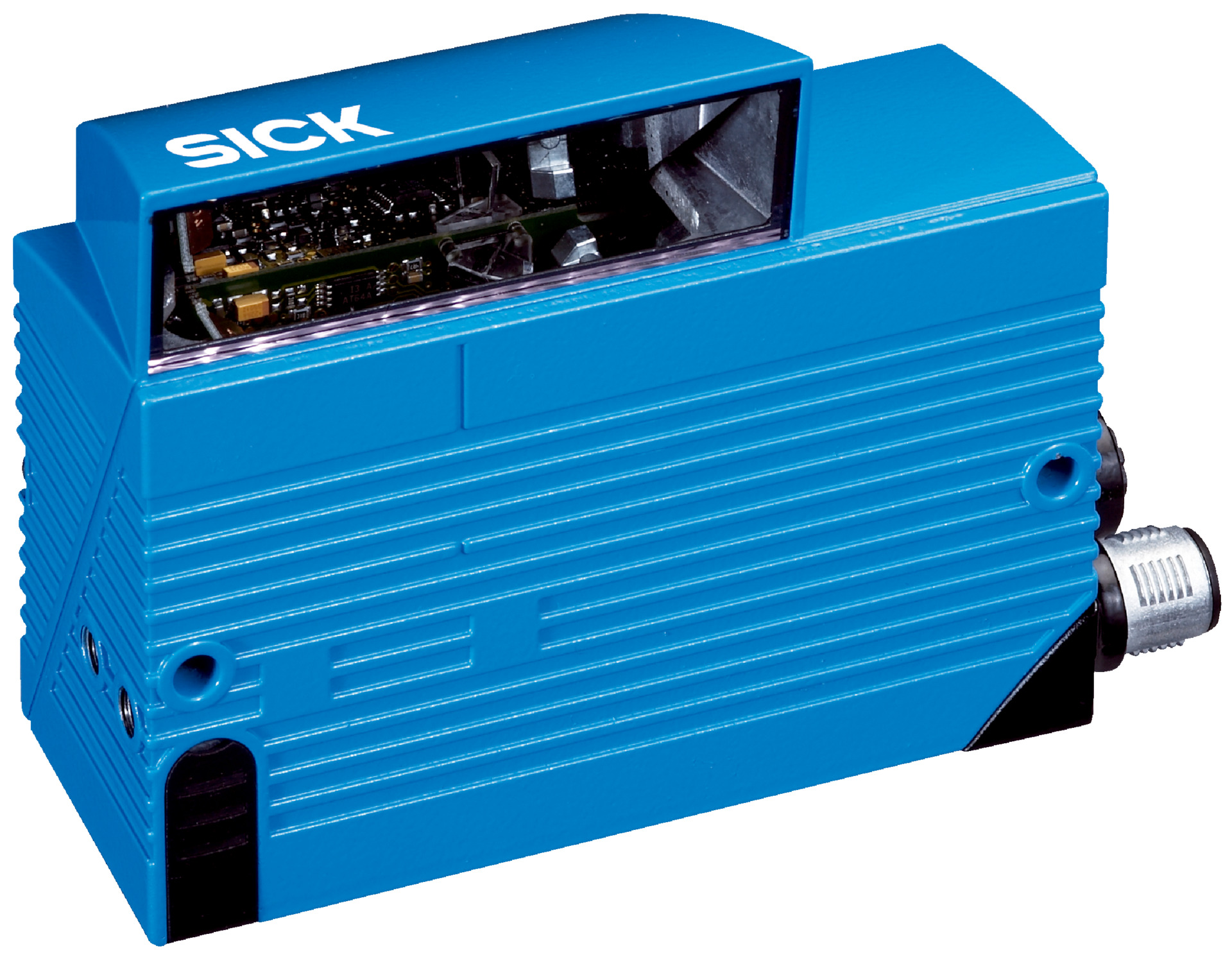

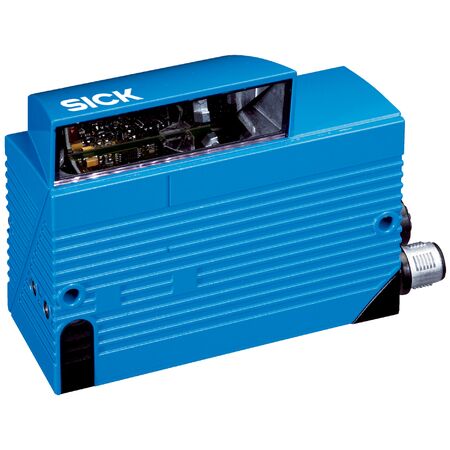

Mid Range Ethernet Barcode Scanner | IP65 Rated | 400 Hz to 1,200 Hz Scanning Frequency | by SICK
The Mid Range Ethernet Barcode Scanner CLV631-2120 is designed for industrial automation, offering high-resolution 1D barcode reading with a scanning frequency of 400 Hz to 1,200 Hz. With its robust aluminum housing and IP65 rating, it’s perfect for logistics, warehouse management, and manufacturing process control, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mid Range Ethernet Barcode Scanner | IP65 Rated | 400 Hz to 1,200 Hz Scanning Frequency | by SICK
Brand: SICK
SKU: 1041983
Alternatively Known As: SICK CLV631, SICK Mid Range Line Scanner, Ethernet Barcode Scanner, Industrial Barcode Reader
Technical Specifications
- Connection type: Ethernet, 2 x M12 cylindrical connectors (12-pin male, 4-pin female)
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Weight: 270 g without connecting cable
- Reading distance: 74 mm to 412 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.25 mm to 0.5 mm
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and more
- Optical focus: Fixed
- Light source: Visible red laser, 655 nm, laser class 2
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-3 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.27 kg
Key Features
- Mid Range line scanner with fixed optical focus
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads 1D barcodes with high resolution (0.25 mm to 0.5 mm)
- Reading field side angle of 105° with aperture angle ≤ 50°
- Laser class 2 with visible red light spot at 655 nm
- High scanning frequency from 400 Hz to 1,200 Hz
- Robust aluminum die cast housing with IP65 rating
- Multiple digital and acoustic indicators for status and results
- Supports up to 50 codes per reading interval and up to 5,000 characters
- Configuration via SOPAS ET software and optional MicroSD memory card
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial Ethernet and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low power consumption of 5 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV631-2120 Mid Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
