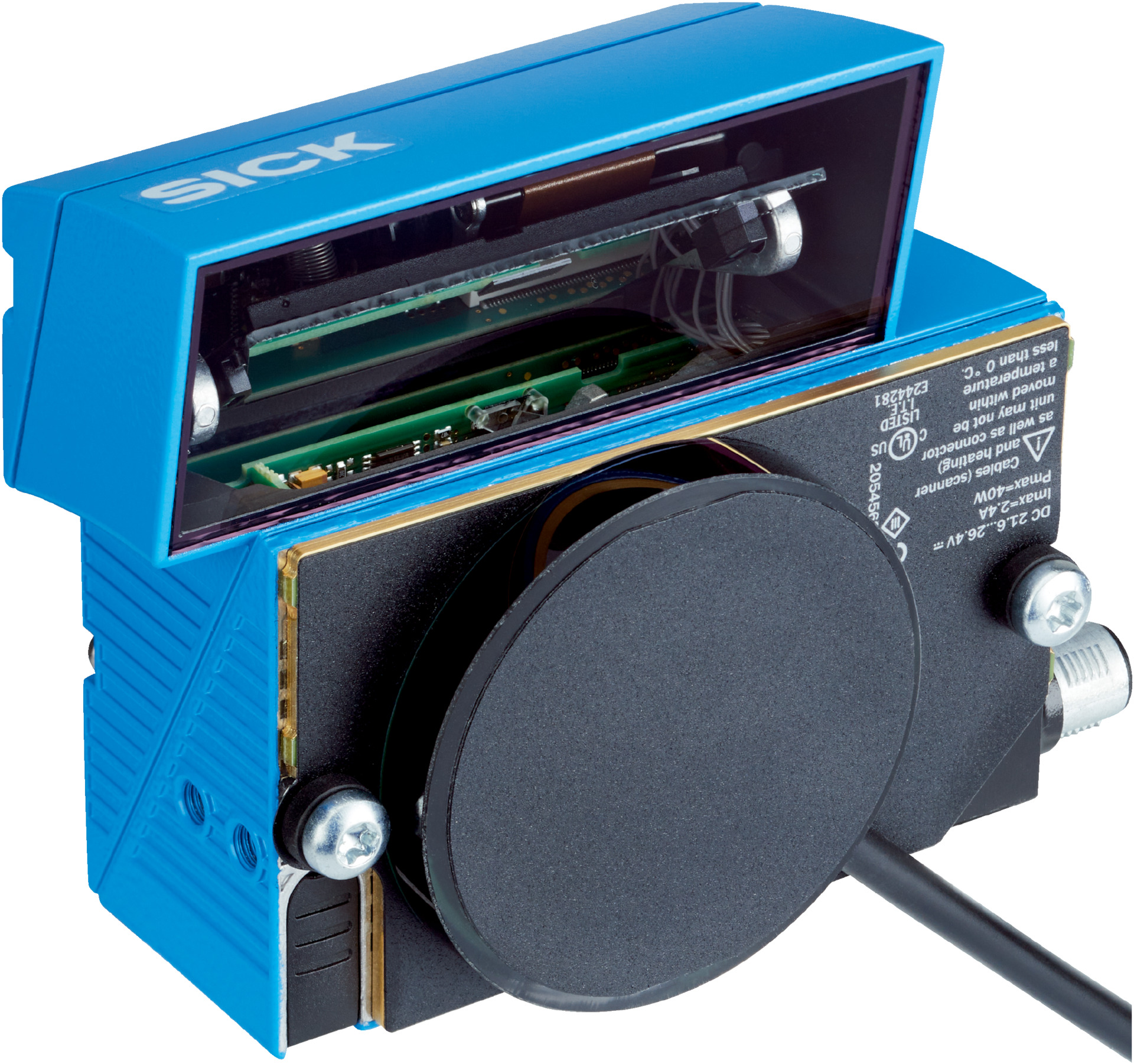

Mid Range Ethernet Barcode Scanner | IP65 Rated | 400 Hz to 1,200 Hz Scanning Frequency | by SICK
The Mid Range Ethernet Barcode Scanner is designed for efficient industrial automation, featuring a high scanning frequency of 400 Hz to 1,200 Hz and an IP65 rated aluminum housing. Ideal for logistics and warehouse management, this scanner supports all current 1D barcode types and operates effectively in cold storage environments, ensuring reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type: Ethernet, 2 x M12 cylindrical connectors, 1 x open-ended cable
- Supply voltage: ≤ 24 V DC, ± 10%
- Power consumption: 40 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Weight: 550 g without connecting cable
- Reading field: Oscillating mirror
- Sensor type: Line scanner
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 78 mm to 397 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.25 mm to 0.5 mm
- Oscillation frequency: 0.5 Hz to 6.25 Hz
- Angle of deflection: –20° to 20°
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and more
- Data transmission rates: Ethernet 10/100 MBit/s, CAN 20 kbit/s to 1 Mbit/s, Serial up to 115.2 kBaud
- Operating temperature: –35 °C to +35 °C
- Storage temperature: –20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 50mm x 95mm x 107mm
- Weight: 0.55 kg
Key Features
- Mid range line scanner with fixed optical focus
- Oscillating mirror with adjustable position and variable amplitude
- Visible red laser light spot at 655 nm, laser class 2
- Reading distance from 78 mm to 397 mm
- High scanning frequency from 400 Hz to 1,200 Hz
- Supports reading of all current 1D barcode types
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP, EtherCAT, Serial, CAN, CANopen, and PROFIBUS DP
- IP65 rated aluminum die cast housing with glass window
- Heating function for cold storage applications
- 6 LED optical indicators and acoustic beeper for status feedback
- Configuration via SOPAS ET software and optional MicroSD memory card
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Cold storage environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable aluminum housing reduces need for frequent replacements
- Energy-efficient operation with low power consumption of 40 W
- Supports cold storage applications reducing need for additional heating devices
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

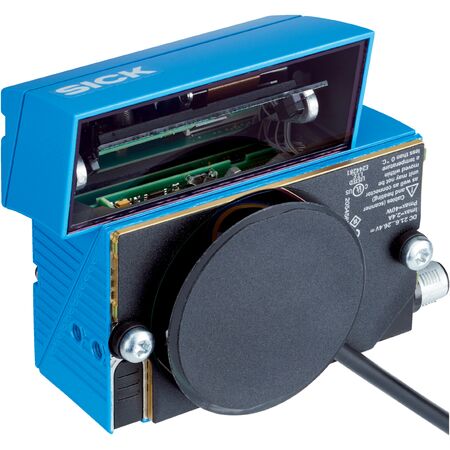

The SICK CLV631-6120F0 Mid Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
