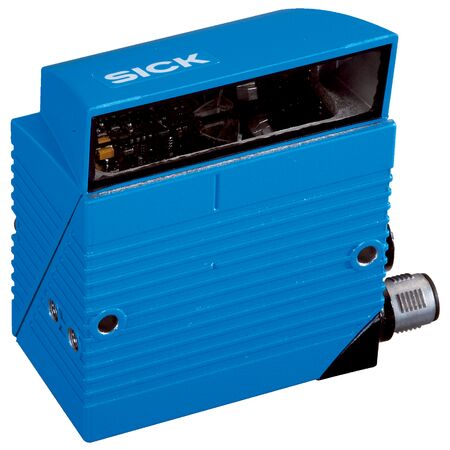

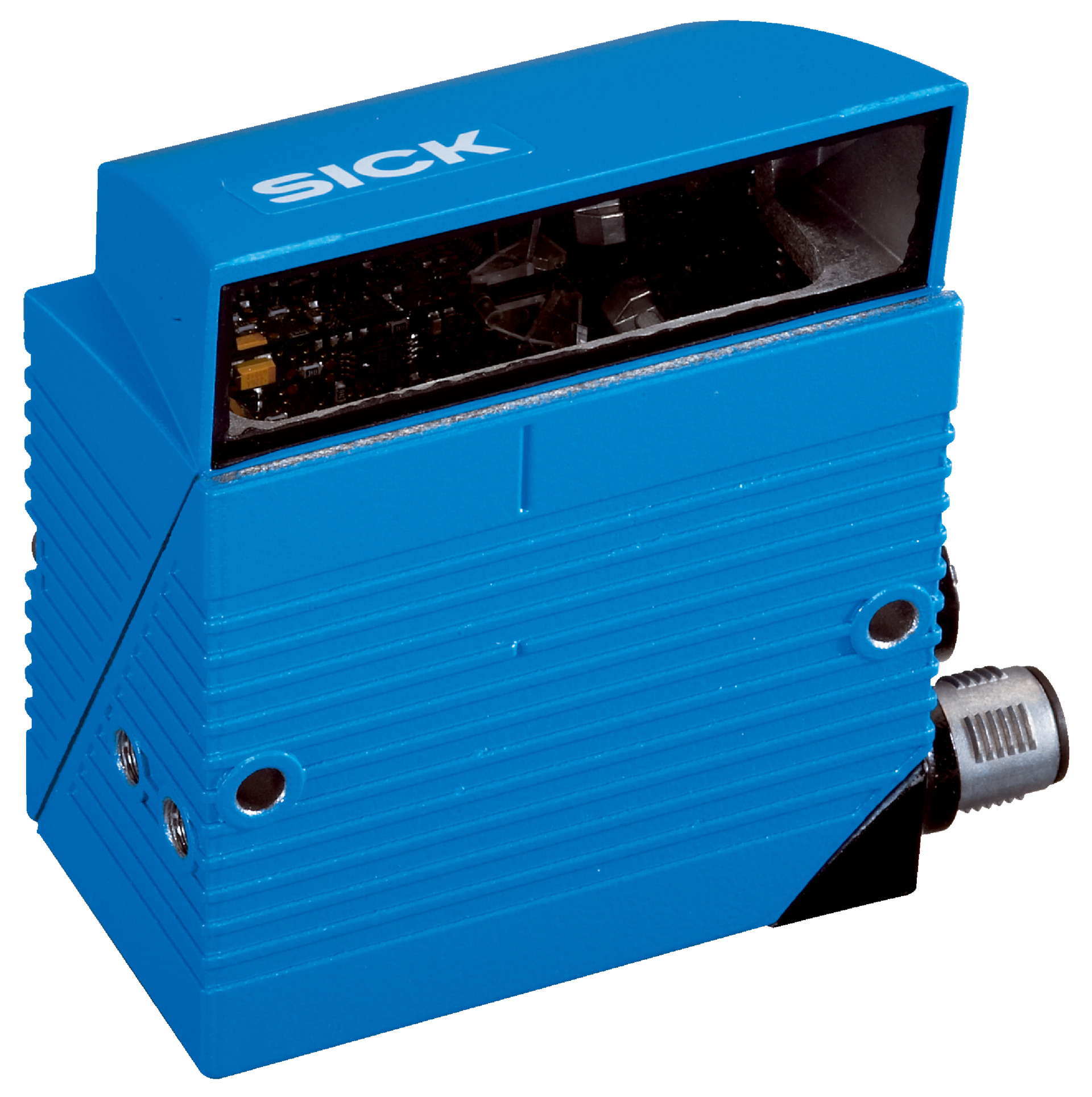

Mid Range Ethernet Raster Scanner | IP65 Rated | 400-1200 Hz Scanning Frequency | by SICK
The Mid Range Ethernet Raster Scanner is designed for efficient barcode reading in industrial automation, featuring a robust IP65 rated aluminum housing and a scanning frequency of 400 to 1200 Hz. With a reading distance of 60 mm to 365 mm and support for all current 1D barcode types, it's perfect for logistics, manufacturing process control, and quality assurance applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type: Ethernet, 2 x M12 cylindrical connectors (12-pin male, 4-pin female)
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 365 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.2 mm to 1 mm
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, EAN, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-3 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 38mm x 80mm x 66mm
- Weight: 0.23 kg
Key Features
- Mid Range version with Ethernet connection
- Side reading field of 105°
- Raster scanner with fixed optical focus
- Visible red laser light source (655 nm), Laser class 2
- Reading distance from 60 mm to 365 mm
- Scanning frequency between 400 Hz and 1200 Hz
- Supports all current 1D barcode types
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen, PROFIBUS DP
- IP65 rated aluminum die cast housing
- 6 LED optical indicators and acoustic beeper
- Configuration via SOPAS ET software
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 4.5 W reduces energy usage
- Durable IP65 housing extends product life and reduces waste
- Complies with laser safety standards minimizing environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CLV620-3120 Mid Range Ethernet Raster Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
