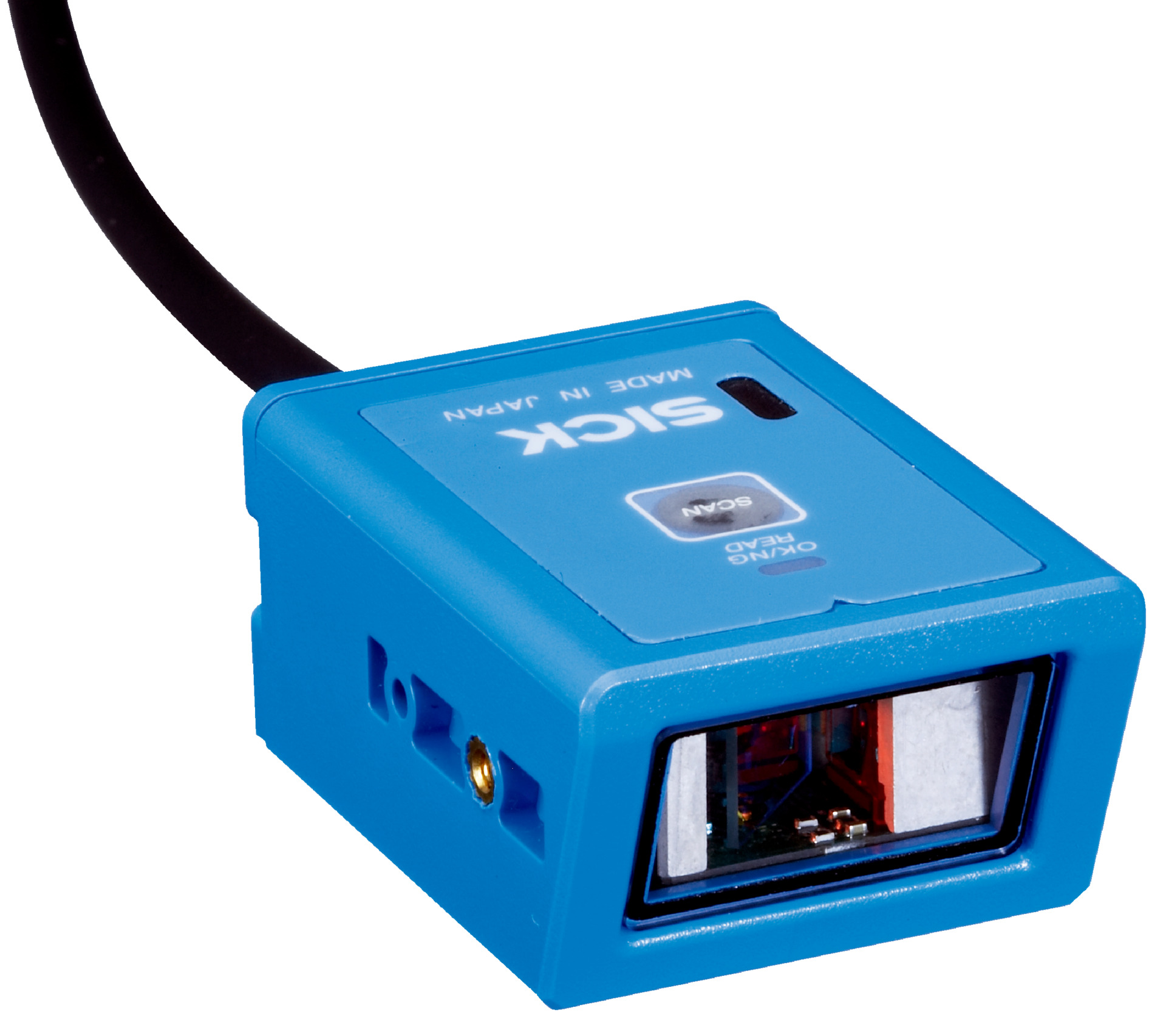

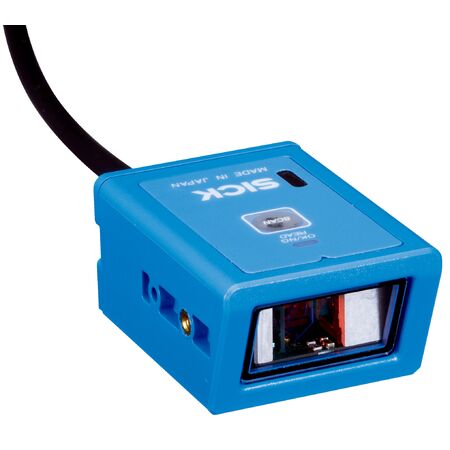

Mid Range Line Scanner Barcode Reader | Fixed Focus | IP45 Rated | by SICK
The Mid Range Line Scanner Barcode Reader is designed for efficient barcode reading in industrial automation and logistics. With a fixed optical focus and the ability to read various 1D barcode formats, it operates at a reading distance of 50 mm to 630 mm. Its compact design and IP45 enclosure ensure durability and reliability in demanding environments, making it an ideal choice for manufacturing process control and quality inspection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mid Range Line Scanner Barcode Reader | Fixed Focus | IP45 Rated | by SICK
Brand: SICK
SKU: 1046315
Alternatively Known As: SICK CLV503 Barcode Scanner, Mid Range Line Scanner, Industrial Barcode Reader, Fixed Focus Laser Scanner
Technical Specifications
- Version: Mid Range
- Connection type: Cable (1.5 m open cable end)
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 650 nm
- Laser class: 2 (complies with EN 60825-1:2014+A11:2021, IEC 60825-1:2014)
- Aperture angle: ≤ 44°
- Reading distance: 50 mm to 630 mm
- Scanning frequency: ≤ 100 Hz
- Code resolution: 0.15 mm to 1 mm
- Supply voltage: 5 V DC ± 10%
- Power consumption: 85 to 150 mA typical
- Housing color: Light blue (RAL 5012)
- Window material: Plastic
- Enclosure rating: IP45
- Protection class: III
- Weight: approx. 18.5 g without cable
- MTBF: 10,000 hours
- Readable code structures: 1D codes including Code 11, Code 39, Code 128, Code 93, Codabar, JAN, UPC/GTIN/EAN, Interleaved 2 of 5, Matrix 2 of 5, GS1 DataBar variants, IATA, ISBN-ISMN-ISSN, MSI/Plessey, UK/Plessey, Telepen, Code 39 Trioptic
- Data transmission rate: ≤ 115.2 kBaud
- Digital inputs: 1 (Reading pulse trigger)
- Digital outputs: 2 (Good Read / No Read)
- Indicators: 1 LED optical, beeper/buzzer acoustic
- Operating temperature: -10°C to +45°C
- Relative humidity: up to 85%, non-condensing
- Ambient light immunity: 2000 lx
- Bar code print contrast (PCS): ≥ 45%
- Dimensions (H x L x W): 20mm x 30mm x 43mm
- Weight: 0.1 kg
Key Features
- Mid Range line scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, UPC, EAN, GS1 DataBar and more
- Visible red laser light source (650 nm) with laser class 2 compliance
- Reading distance from 50 mm to 630 mm
- Scanning frequency up to 100 Hz
- Compact and lightweight design with IP45 enclosure rating
- Digital inputs and outputs for reading pulse trigger and status indication
- LED optical indicator and acoustic beeper for feedback
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and inspection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with typical 85 to 150 mA current draw
- Durable IP45 rated housing reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV503-0000 Mid Range Line Scanner Barcode Reader is available for immediate purchase, ideal for industrial and logistics barcode scanning applications.
