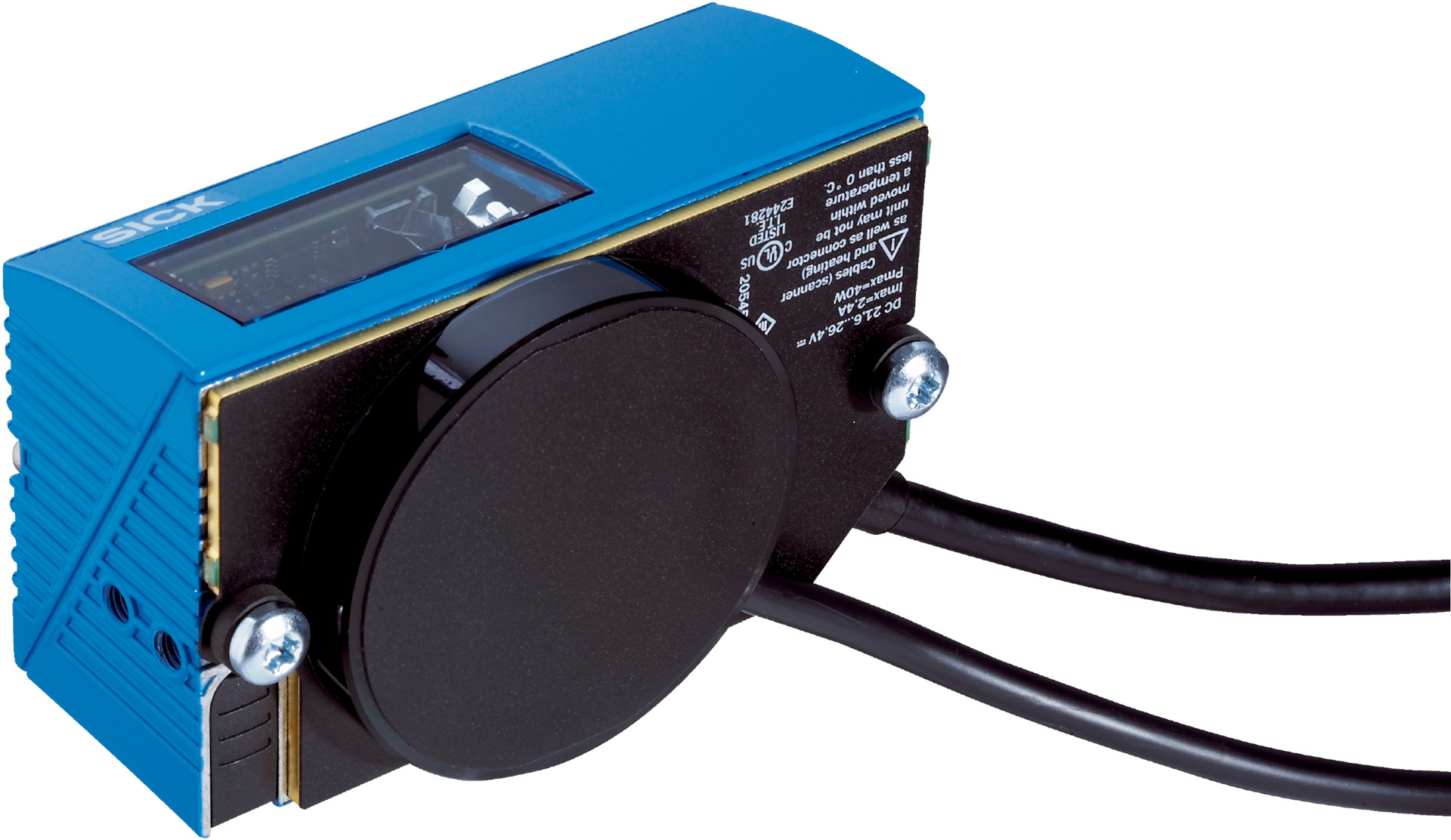

Mid Range Line Scanner Barcode Reader | IP65 Rated | 1D Code Support | High Scanning Frequency | by SICK
The Mid Range Line Scanner Barcode Reader is designed for efficient industrial automation, capable of reading 1D barcodes including Code 39 and Code 128. With a high scanning frequency of 400 Hz to 1,200 Hz and a durable IP65-rated aluminum housing, it’s perfect for cold storage and logistics applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mid Range Line Scanner Barcode Reader | IP65 Rated | 1D Code Support | High Scanning Frequency | by SICK
Brand: SICK
SKU: 1050778
Alternatively Known As: SICK CLV631 Barcode Scanner, SICK Mid Range Line Scanner, Industrial Barcode Reader, Fixed Focus Laser Scanner
Technical Specifications
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector and 1 x open-ended 3-wire cable
- Supply voltage: ≤ 24 V DC, ± 10%
- Power consumption: 40 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Weight: 520 g including cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Reading distance: 90 mm to 450 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.25 mm to 0.5 mm
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000 (500 for multiplexer function)
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Operating temperature: -35 °C to +35 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 50mm x 61mm x 96mm
- Weight: 0.52 kg
Key Features
- Mid range line scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- Laser class 2 with visible red light spot at 655 nm
- High scanning frequency from 400 Hz to 1,200 Hz
- Durable aluminum die cast housing with IP65 rating
- Supports multiple industrial communication interfaces including PROFINET, EtherCAT, CAN, and PROFIBUS DP
- Heating element for cold storage applications
- Multiple digital inputs and outputs with LED and acoustic indicators
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and communication standards to ensure proper setup and compliance with safety regulations.
Applications
- Industrial automation for barcode reading
- Cold storage barcode scanning
- Manufacturing and logistics for 1D code reading
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation with low power consumption of 40 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

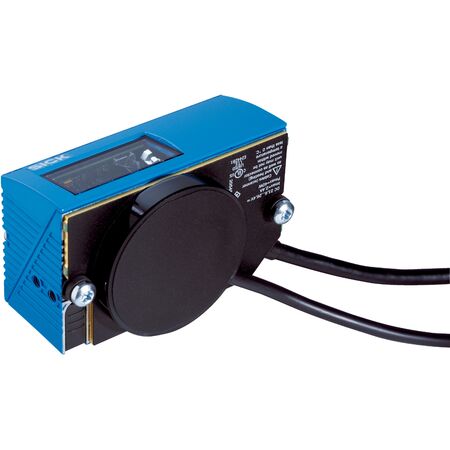

The SICK CLV631-0000F0 Mid Range Line Scanner Barcode Reader is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
